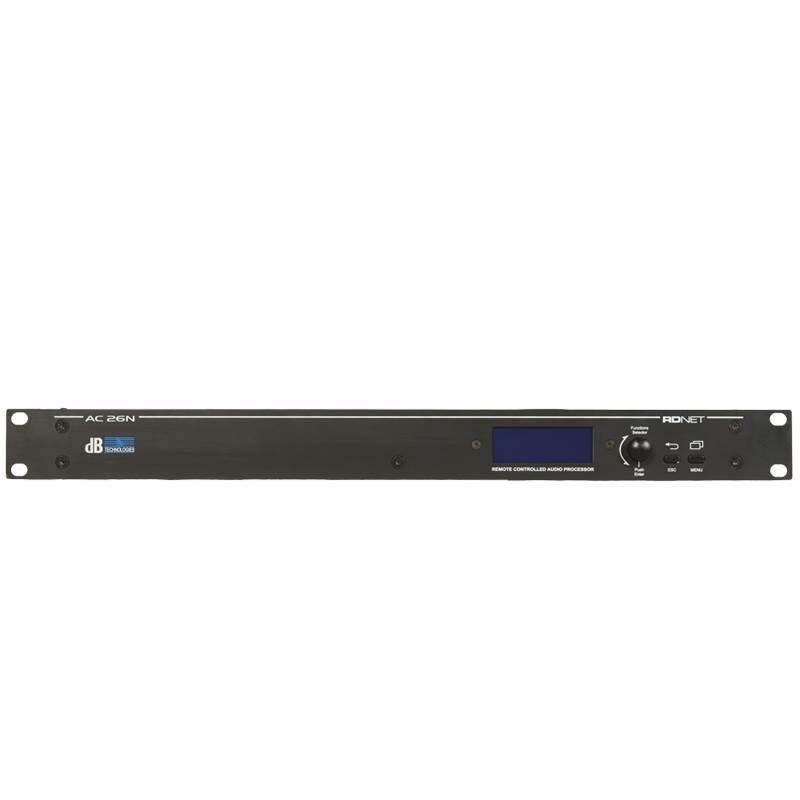

dB Technologies AC26N - Digital Audio Controller (2-In/6-Out) - front view

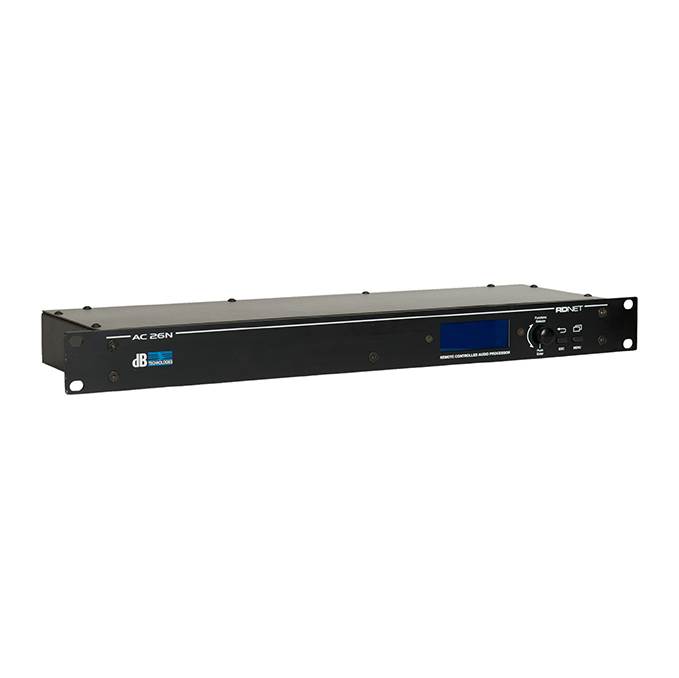

dB Technologies AC26N - Digital Audio Controller (2-In/6-Out) - angled view

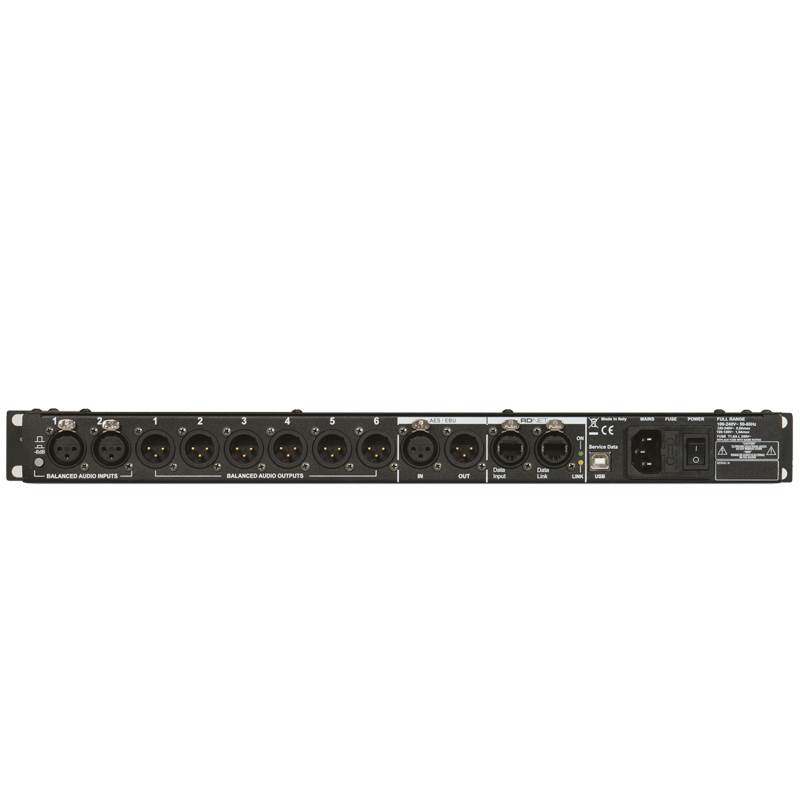

dB Technologies AC26N - Digital Audio Controller (2-In/6-Out) - rear view
dB Technologies AC26N - Digital Audio Controller (2-In/6-Out) - front view
dB Technologies AC26N – Digital Audio Controller (2-In/6-Out)
$2,600.00 Inc GST Add to cart
Volume Control 40W 100V Line Clipsal Pro - Vertical Black - front view Volume Control 40W 100V Line Clipsal Pro - Vertical Black $84.70 Inc GST

dB Technologies AC26N – Digital Audio Controller (2-In/6-Out)

$2,600.00 Inc GST

1U digital audio processor with 2 analog ins, 6 analog outs, AES/EBU I/O and RDNet control – ideal loudspeaker controller for active or passive systems.

Contact AV Store for availability.

Add to Wishlist
Brand:DB Techologies

Free NZ shipping on all orders over $199 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $199)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

The dB Technologies AC26N is a versatile digital audio controller designed for full processing of any professional audio system – active or passive. Two balanced analog inputs and six balanced analog outputs are complemented by AES/EBU digital I/O and RDNet control, providing complete and intuitive system management in a 1U rack form factor.

Each output channel offers parametric EQ, delay, polarity and level control, with multiple crossover types and high-performance limiter/compressor for system protection. Powered by 28/56-bit DSP and high-performance 24-bit/96 kHz AD/DA converters, the AC26N is ready for both fixed install and live applications, fully integrated with the Aurora Net ecosystem.

Specifications

  • Type: Digital Audio Controller / Loudspeaker Processor (1U)
  • DSP: 28/56-bit
  • AD/DA: 24-bit / 96 kHz
  • Analog Inputs: 2 channels balanced
  • Analog Outputs: 6 channels balanced
  • Digital I/O: 2x AES/EBU in / 2x AES/EBU out
  • Networking: RDNet
  • EQ: 12 bands per input/output
  • Per-Output: parametric EQ, delay, polarity, level, crossover, limiter
  • Aurora Net compatible
