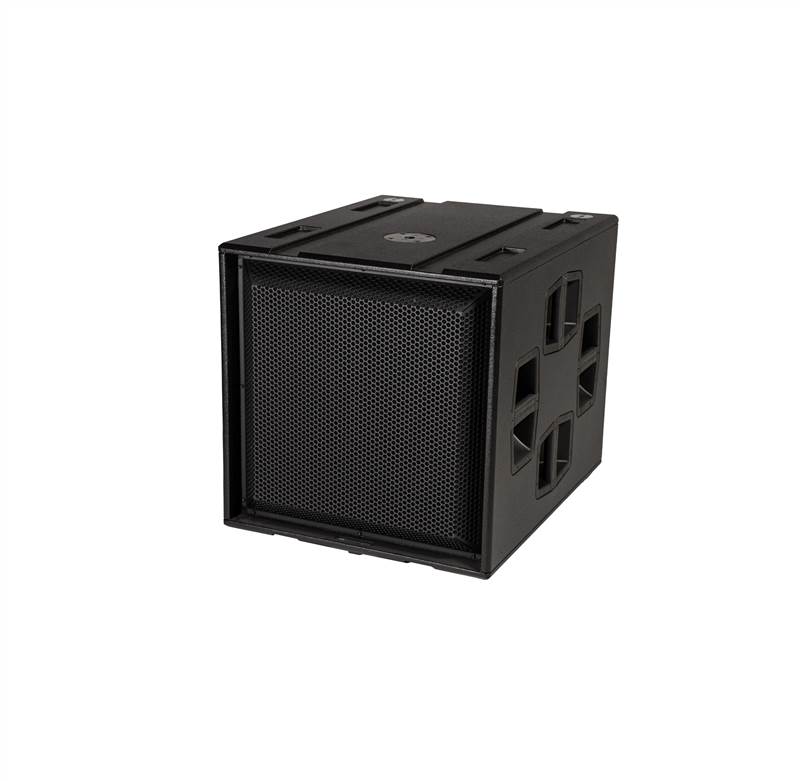

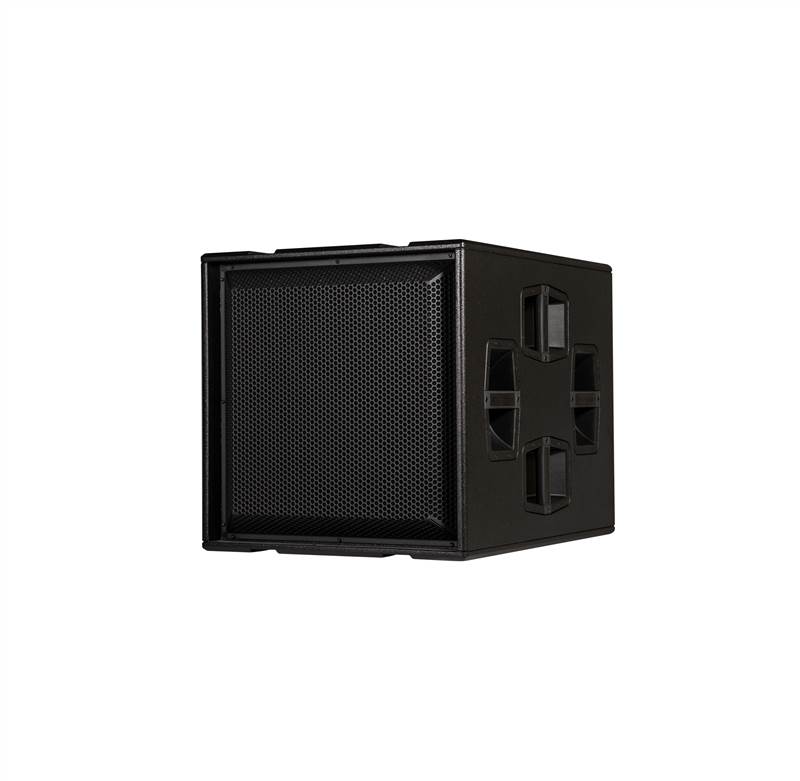

dB Technologies INGENIA IGS1 – Active 18″ Bass-Reflex Subwoofer

The dB Technologies INGENIA IGS1 is a powerful active bass-reflex subwoofer engineered to extend low-frequency response of dBTechnologies INGENIA series and other full-range systems. A single 18″ woofer with 4″ voice coil paired with a 1600W RMS Class D PFC amplifier delivers impressive sound pressure of up to 136 dB SPL with maximum reliability.

RDNet networking enables real-time monitoring and remote control through Aurora Net software. The plywood cabinet with polyurea finish is built for road use, with four side handles, an M20 pole mount and selectable crossover frequencies make it ideal for touring and install applications.

Specifications

• Speaker Type: Active Bass-reflex Subwoofer
• Frequency Response (-10dB): 36 Hz to crossover
• Usable Bandwidth (-6dB): 39 Hz to crossover
• Max SPL (1m): 136 dB
• LF Driver: 1x 18″, 4″ voice coil
• Amplifier: Class D with PFC, 1600 W RMS
• Processor: 32-bit, 24-bit/96 kHz AD/DA
• Crossover Frequencies: 60-65-70-75-80-90-100-110-120-400 Hz
• Networking: RDNet
• Housing: Plywood, polyurea finish

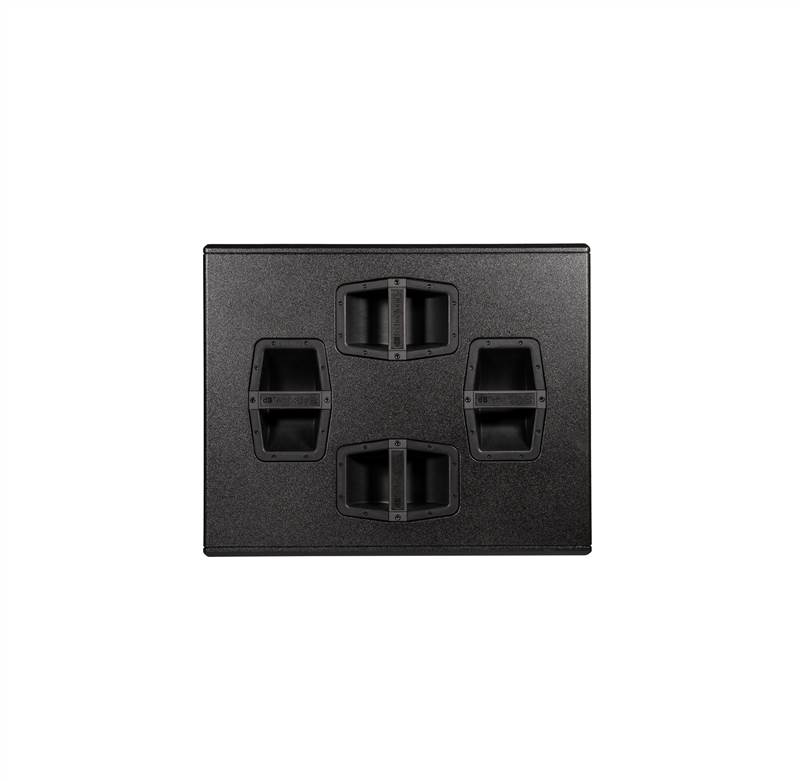

• Handles: 4x side

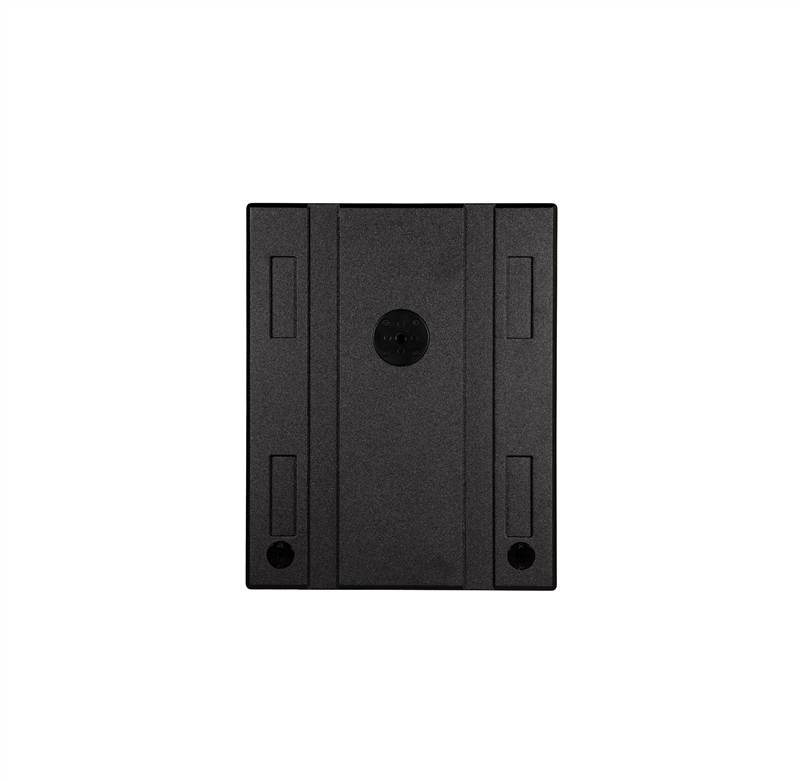

• Pole Mount: 1x M20 on top
• Dimensions (WxHxD): 578 x 580 x 720 mm
• Weight: 45.6 kg
