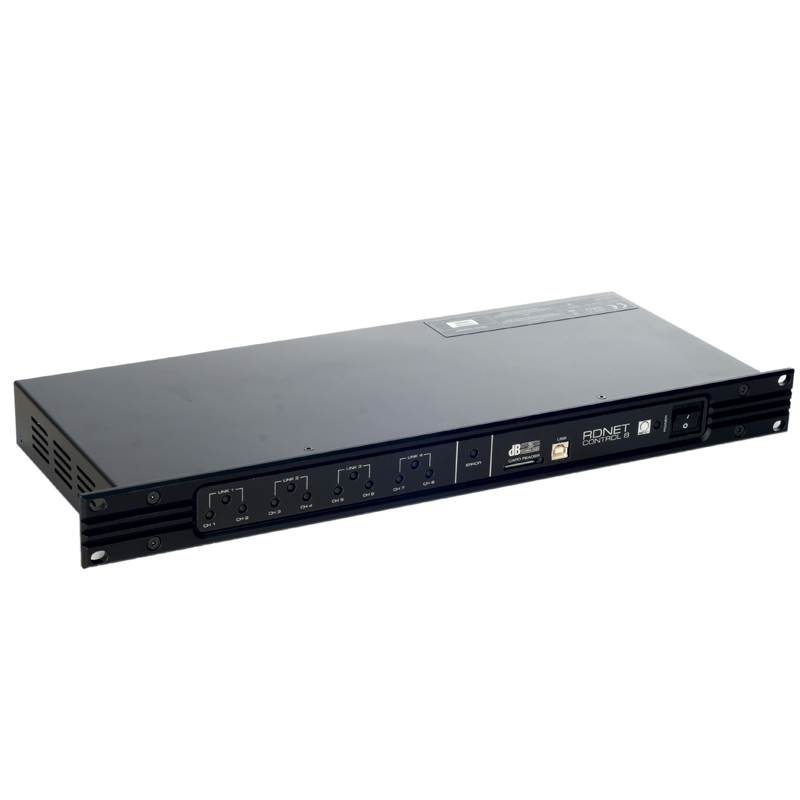

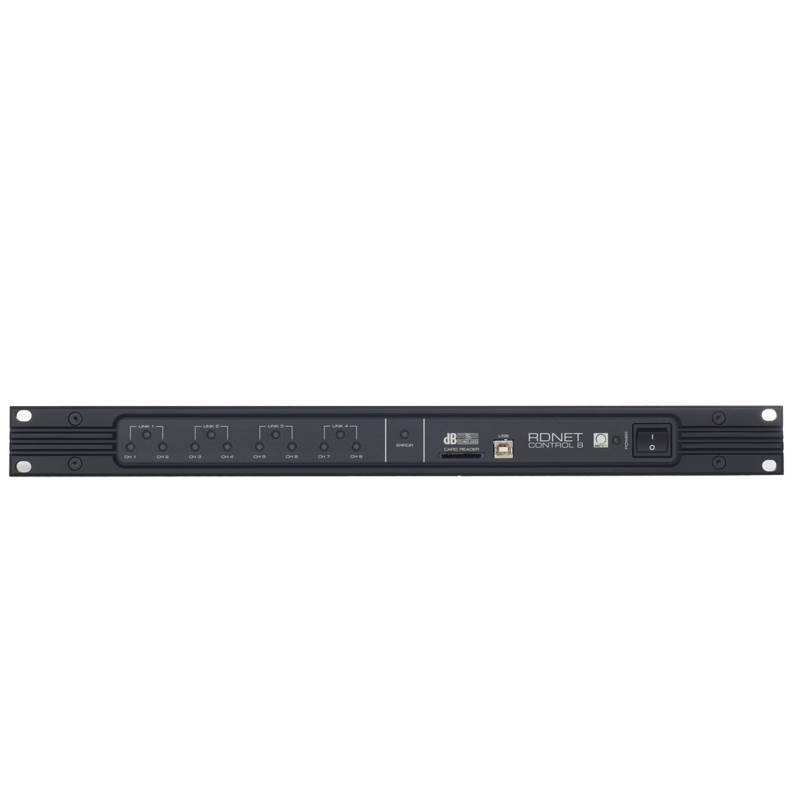

dB Technologies RDNet CONTROL 8 – 8-Subnet RDNet Interface

The dB Technologies RDNET CONTROL 8 is the centerpiece of large RDNet-based dBTechnologies installations and touring rigs. This 19″ rack-mount hardware interface routes data between a control PC and up to 256 RDNet-compatible devices (32 per subnet across 8 subnets) using USB or Ethernet connection.

Used with the RDNet software (Microsoft Windows), it enables full remote control and real-time monitoring of every connected DVA, VIO, INGENIA or compatible loudspeaker – levels, limiters, temperatures, presets, mute, grouping, EQ, delay, phase, and component testing – across the full system.

Specifications

• Type: RDNet Hardware Interface, 19″ rack mount (1U)
• Subnets: 8
• Devices per Subnet: up to 32 (256 total)
• Connection to PC: USB and Ethernet

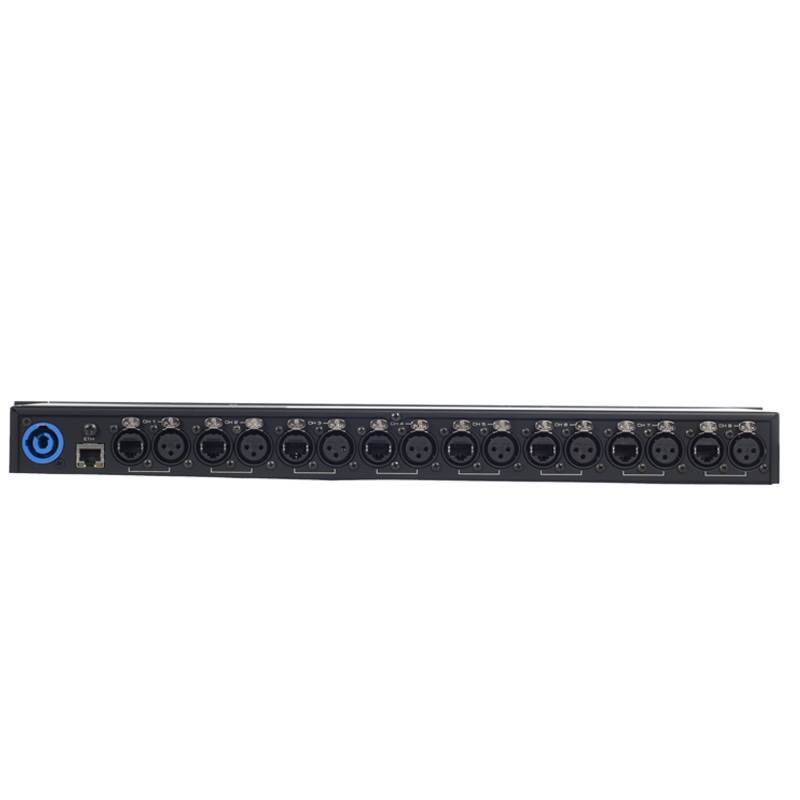

• RDNet Ports: 8x RJ45 + 8x 3-pin XLR
• Compatible: DVA, VIO, INGENIA series and other RDNet-enabled devices
• Software: dBTechnologies Network / Aurora Net (Windows)
