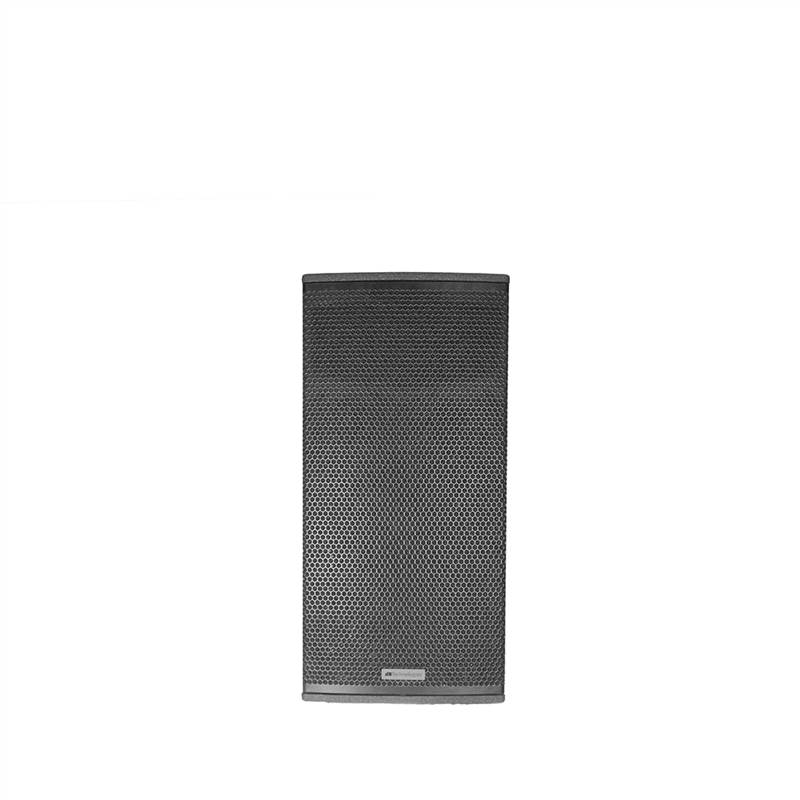

dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - front view
dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - angled view

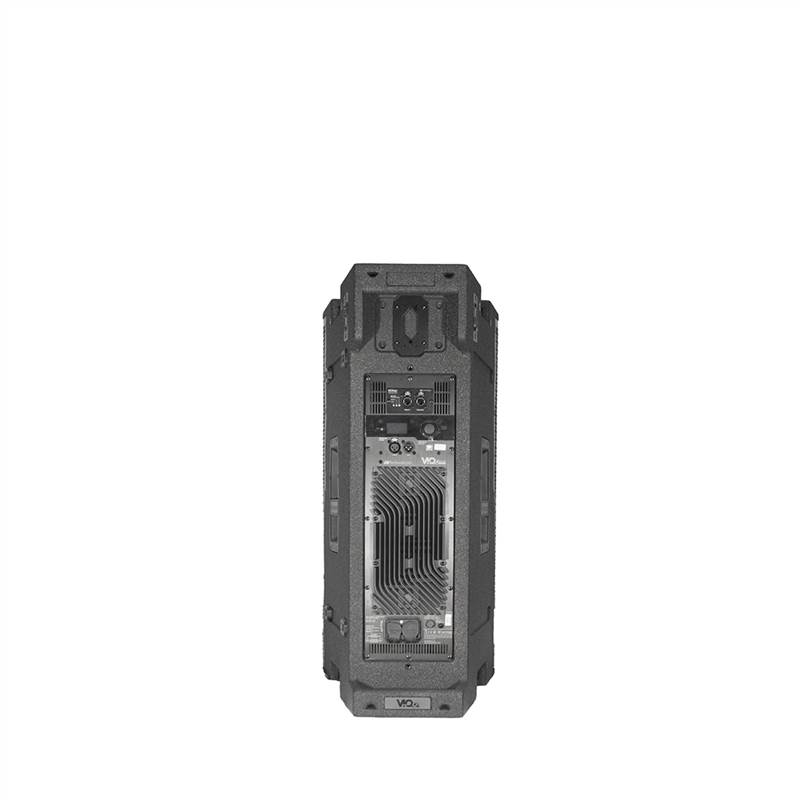

dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - rear view

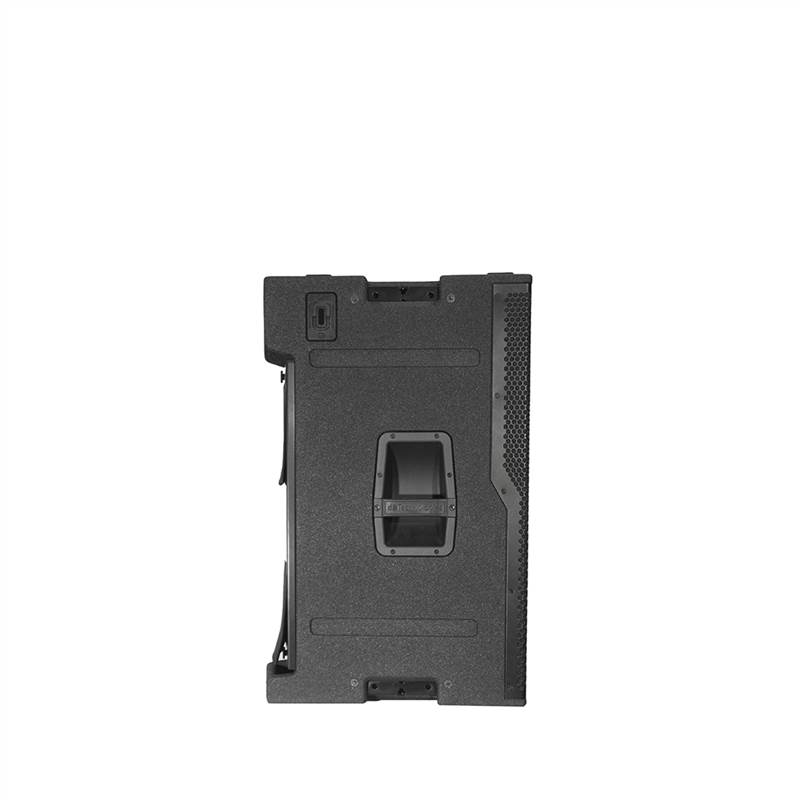

dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - side view
dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - detail view

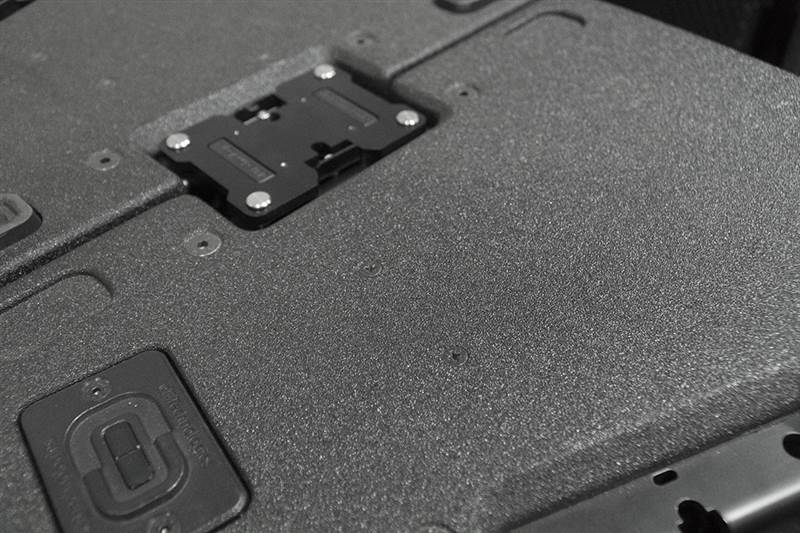

dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - top view
dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - controls
dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - connection panel
dB Technologies VIO C12 - 2-Way Active Cluster Loudspeaker (12") - front view
dB Technologies VIO C12 – 2-Way Active Cluster Loudspeaker (12″)
$13,600.00 Inc GST Add to cart
Electro-Voice EVERSE 12 Battery Powered 12" PA Speaker with Bluetooth - Black - front view Electro-Voice EVERSE 12 Battery Powered 12" PA Speaker with Bluetooth - Black $2,799.00 Inc GST
RCF Compact C 32 - Two-Way Professional Passive Speaker (12", 600W RMS) - product photo RCF Compact C 32 - Two-Way Professional Passive Speaker (12", 600W RMS) $3,999.00 Inc GST

dB Technologies VIO C12 – 2-Way Active Cluster Loudspeaker (12″)

$13,600.00 Inc GST

2-way active cluster loudspeaker with 12″ + 1.4″ neodymium drivers, 1600W RMS Digipro G4, 139 dB SPL, for tight horizontal/vertical clusters.

Contact AV Store for availability.

Add to Wishlist
Brand:DB Techologies

Free NZ shipping on all orders over $199 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $199)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

The dB Technologies VIO C12 is a 2-way active cluster loudspeaker designed to create flexible horizontal and vertical line-source arrays through a simple yet rapid rigging system. A 12″ neodymium woofer (3.5″ voice coil) and 1.4″ compression driver (3″ voice coil) deliver pure, powerful acoustic performance up to 139 dB SPL.

Each enclosure provides a tight 22.5° horizontal coverage pattern thanks to an exclusively designed asymmetrical horn waveguide, allowing up to 32 elements in double-line clusters with modifiable vertical dispersion. Equipped with a 1600W RMS Digipro G4 Class-D amplifier and RDNet card for Aurora Net real-time monitoring; pre-amp ready for optional Audinate Dante upgrade.

Specifications

  • Speaker Type: 2-Way Active Cluster Loudspeaker
  • Usable Bandwidth (-6dB): 55 – 18,000 Hz
  • Max SPL: 139 dB
  • HF Driver: 1x 1.4″, 3″ voice coil, neodymium
  • LF Driver: 1x 12″, 3.5″ voice coil, neodymium
  • Amplifier: 1600 W RMS Class-D Digipro G4
  • Horizontal Directivity: 22.5°
  • Vertical Directivity: 55° (+20°/-35°)
  • AD/DA: 24-bit/96 kHz
  • Networking: RDNet (Dante optional)
  • Dimensions (WxHxD): 379 x 787 x 495 mm
  • Weight: 31.8 kg

Brand

DB Techologies

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: 103010300 Category:
