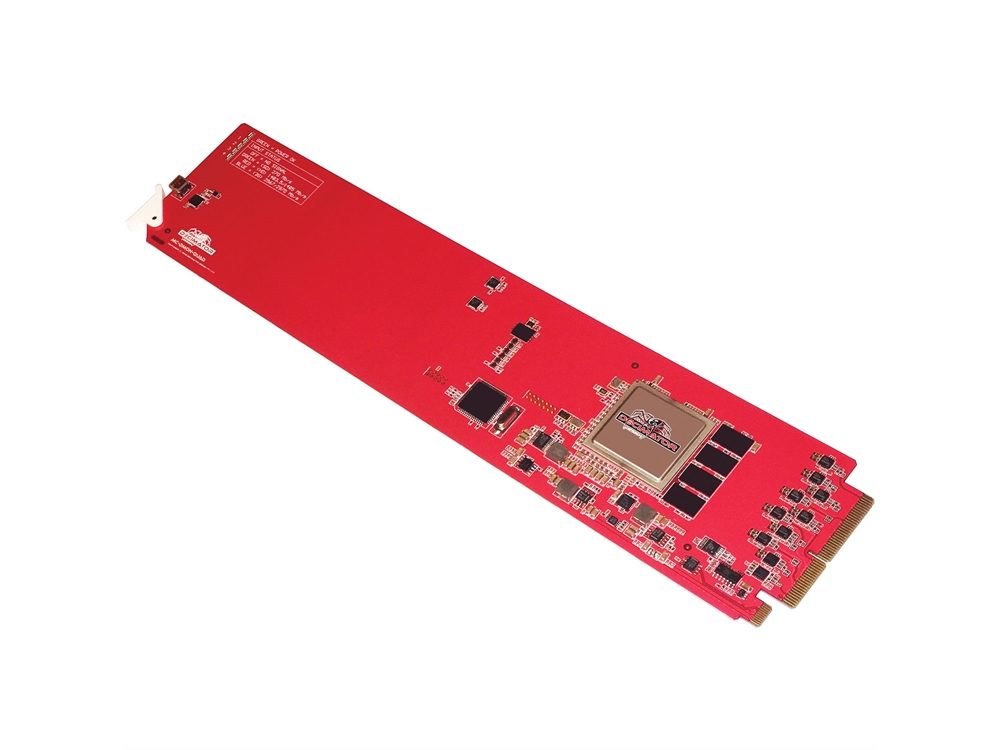

DECIMATOR MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer for openGear Platforms

Overview
The MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios. For SDI connectivity and tally, the card is compatible with the separately available DR1-10B1G rear.
Key Features

Four 3G-SDI inputs with automatic format detection
Each input can have a unique format – data rate, resolution, and frame rate
Supports unique aspect ratios per quadrant
Functions as 1 to 4 multiviewer or 4 to 1 multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with custom positioning and size
8 Channel Audio Metering overlay per window with custom positioning and size
Audio ID overlay
Supports dynamic UMD and tallies via RS422/485 using the widely implemented TSL protocol (requires separately available DR1-10B1G connectivity module)
Tallies can be applied to either tally boxes (default) or border element
Tally boxes allows for up to four Tallies per window
Selectable output format in both Full-Screen MultiViewer mode
Low latency buffering enables connection of unsynchronised sources
Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
In pass-through mode the selected input is passed to both SDI outputs
Mini-USB port for firmware updates
Supports openGear DashBoard for control

Specifications

Connectivity

Inputs
4 x 3G-SDI1 x mini-USB type-B for control and updates1 x 3-pin connector for UMD and Tallies via RS-422/485

Outputs
1 x 3G-SDI

Supported Standards

SDI
3G-SDI (SMPTE 424M)Datarate: 2.97; 2.967 Gb/sResolutions: 1080p: 60; 59.94; 50 HzHD-SDI (SMPTE 292M/274M/296M)Datarate: 1.485; 1.435 Gb/sResolutions:    1080i: 60; 59.94; 50 Hz    1080p/psf: 30; 29.97; 25; 24; 23.98 Hz    720p: 60; 59.94; 50; 30; 29.97; 25; 24; 23.98 HzSD-SDI (SMPTE 259M)Datarate: 270 Mb/sResolutions: 625i50 (PAL); 525i59.94 (NTSC)

General

Status Indication
1 x Power / Update4 x Signal lock and rate
