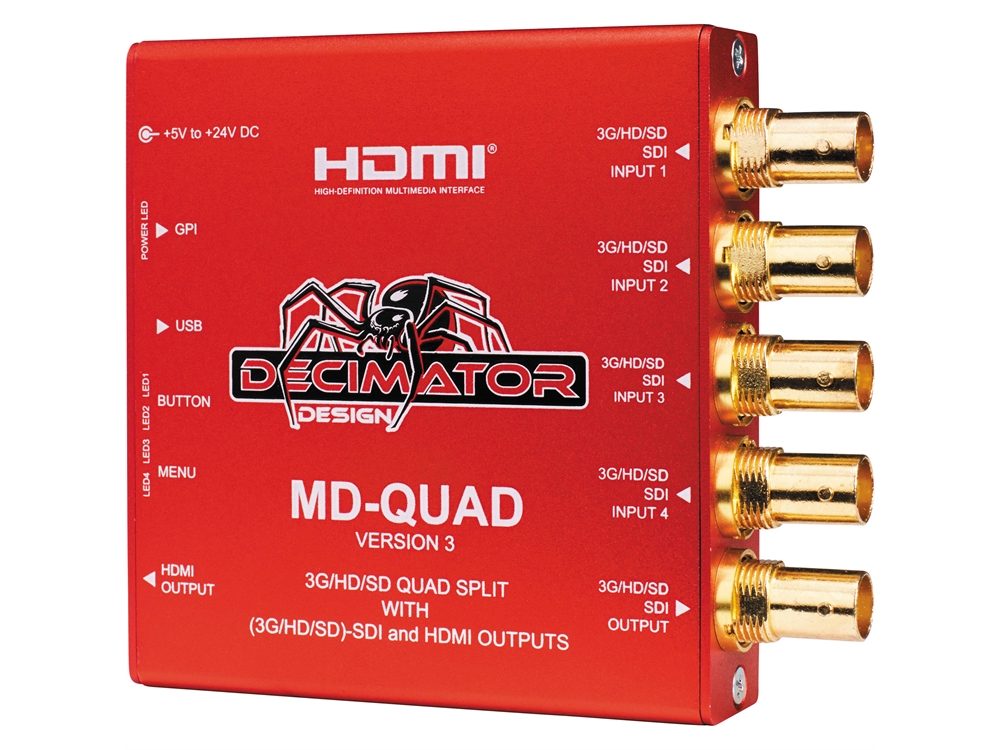

DECIMATOR MD-QUAD 3G/HD/SD-SDI Quad Split Multi-Viewer with SD/HD/3G-SDI & HDMI Outputs Version 3

Overview
Version 3 of the DECIMATOR MD-QUAD 3G/HD/SD-SDI Quad Split Multi-Viewer with SD/HD/3G-SDI & HDMI Outputs adds a test pattern generator, audio tone generator, audio channel pass through, and on-screen display on an optional connected monitor. The device provides you with an SD/HD/3G-SDI quad splitter or multiplexer. It features four auto detecting SDI inputs, and outputs to an SDI and an HDMI output.
Each input is independent and features low latency buffering, which allows the device to display all four inputs on an optional monitor screen simultaneously, even when each input signal is a different format or frame rate. The output signal also supports different aspect ratios being displayed on the screen of your monitor’s SDI or HDMI input. A rotary encoder and push button selector allows you to navigate and select from the menu option without setting DIP switches or connecting to a computer. The menu function allows you to select your output format, and a locking power socket minimises the chance of power loss by a kick out of the power cable.
Key Features
Updates
Updates from the previous version include:* In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output * On-screen audio id pop-up when selection audio source in Quad-Split mode * On-screen display pop-up when using the rotary encoder allows you to adjust the device’s settings requiring a PC * Professional 3G/HD/SD Test Pattern Generator featuring 54 Test Patterns including Luma and Chroma Zone-plates * Audio Tone Generator
General

Miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
Selectable output format in Quad-Split mode
Low latency buffering for each input allowing non-synchronous inputs
Linked (3G/HD/SD)-SDI and HDMI outputs
4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
8-Channel Audio metering for each quadrant with:

The first two audio groups individually selectable
Vertical or Horizontal Bars
AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
Bar & Float, Bar only or Float only
Transparency adjustment
Separate Bar and Float Ballistics control
Adjustable Reference level
Red, Yellow and Green Range adjustment
Bar thickness adjustment
Margin adjustment

Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per quadrant
All 4 inputs can be displayed simultaneously on a single output
Pass-Through mode allowing any of the 4 inputs to be selected for output
In Pass-Through mode the selected input is passed through to both the 3G/HD/SD-SDI and HDMI outputs
On-Screen 16 character IDs (UMDs) for each input
A single tallies for each input is available from the GPI
An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
USB port for control and updates
GPI on RJ-45 for remote switching

Menu Options

Input status for all 4 inputs
Output format
Output selection of Quad Split or input 1, 2, 3 or 4
Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
Individual aspect format for each output can be set to same as input, Letter-box or Pillar-box
Border Enable
Quad split mode reference of either Free-run or input 1
Enables for On-Screen Overlays
Basic Audio Metre control

Specifications

SDI Input & Output Formats
3G – SMPTE 424M@2.97 and 2.967 Gb/s1080p: 60/59.94/50 HzHD – SMPTE 292M/274M/296M@1.485 and 1.435 Gb/s1080p/psf: 30/29.97/25/24/23.98 Hz1080i: 60/59.94/50 Hz720p: 60/59.94/50/30/29.97/25/24/23.98 HzSD – SMPTE 259M@270 Mb/s525i: 59.94 Hz625i: 50 Hz

Inputs
SD/HD/3G-SDI: 4 x BNC

Outputs
SD/HD/3G-SDI: 1 x BNC (10-bit SD-SD Re-Clocked)HDMI: 1 x HDMI

LED Indicators
PowerSignal Lock and Rate: 4 x

Power
5 to 24 VDC6 WPin Pos Connector

Dimensions
3.5 x 3.7 x 0.9″ / 90 x 94 x 23 mm
