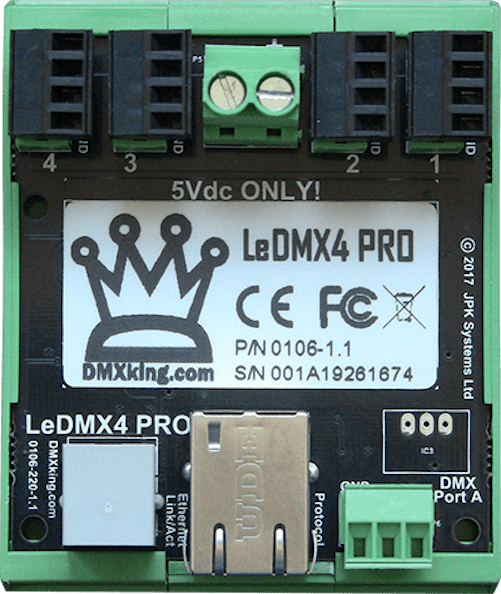

An OEM Board for direct sACN/E1.31 and Art-Net to RGB/RGBW pixel strip/array control. No longer do you need sACN/Art-Net -> DMX512 -> Pixel driver. Eliminate the DMX512 conversion using our LeDMX4 PRO and go direct sACN/Art-Net -> Pixel. Compact and feature packed you’ll find it easy to design into your applications with the ability to scale as big as you like whilst keeping everything synchronized. Designed and manufactured in New Zealand to the highest standards LeDMX4 PRO is a professional product you can rely on backed by our world renowned after sales support.

Firmware v2.6 LeDMX4 PRO now offers ArtNet/sACN stream merging and sACN Priority overrides giving end users the ability to bring the best of different lighting control systems and media servers together seemlessly. No other pixel controller offers such flexibility.

Firmware v3.0+ LeDMX4 PRO includes show recording and playback from microSD card complete with sACN Priority override from an external source during playback providing many possibly use scenarios. Trigger show playback via Art-Net, sACN, DMX-IN Port and external contact closure.

Firmware v3.3+ LeDMX4 PRO now features a Master Level control to dim pixels independent of control source DMX streams.

Main Features

• Static IP or DHCP network addressing.
• OEM board for integration into your designs.
• DIN rail mount possible with DIN clip accessory.
• 4 Independent outputs each with 5A supply capability.
• 1x DMX512 IN/OUT port.
• Directly drives WS2811, WS2812, WS2812B, WS2813, WS2815, WS2822S, UCS1903, UCS2903, UCS2912, UCS8903, UCS8904, PL9823, TM1934, APA101, SK9822, APA102, APA104, APA106, INK1002, INK1003, SM16703, SK6812, WS2801, LPD6803, LPD8806, DMX512-P and many more compatible LED strips.
• Selectable clock/data rate to suit long cables or fast output.
• Up to 680 RGB pixels or 512 RGBW pixels per output spanning 4 DMX universes (2720 RGB pixels / 16 universes per board).
• Up to 340 16bit RGB pixels or 256 16bit RGBW pixels per output. Requires firmware 3.3+
• Automatic RGB / RGBW order correction and additional pixel re-mapping features.
• Per pixel intensity control for APA102/SK9822 utilizing the 5bit current pre-regulator. Requires firmware 3.3+
• Master Level control independent of incoming universe streams. Requires firmware 3.3+
• Flexible Full Mapping option for outputs permitting any start address and zig-zag corrections for RGB, RGB16, RGBW and RGBW16 pixel types..
• Null pixel support for longer runs to first active pixel.
• Static IP or DHCP network addressing.
• Art-Net broadcast, Art-Net II, 3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
• Universe Sync Art-Net, sACN and Madrix Post Sync.
• Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN/E1.31 protocols.
• Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
• HTP Merging of 2 sources and sACN Priority for a highly flexible multi-source pixel mapping solution.
• DMX512 OUT/IN port usable for pixel mapping source along with ArtNet/sACN.
• Configuration utility with basic Art-Net output/input test functionality.
• Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
• Standalone show playback without computer or network connection. External trigger input.
• Firmware updates can be performed by end user.
• Supported operating systems: Any with Ethernet networking support. Windows, Mac, Linux, iOS, Android.
