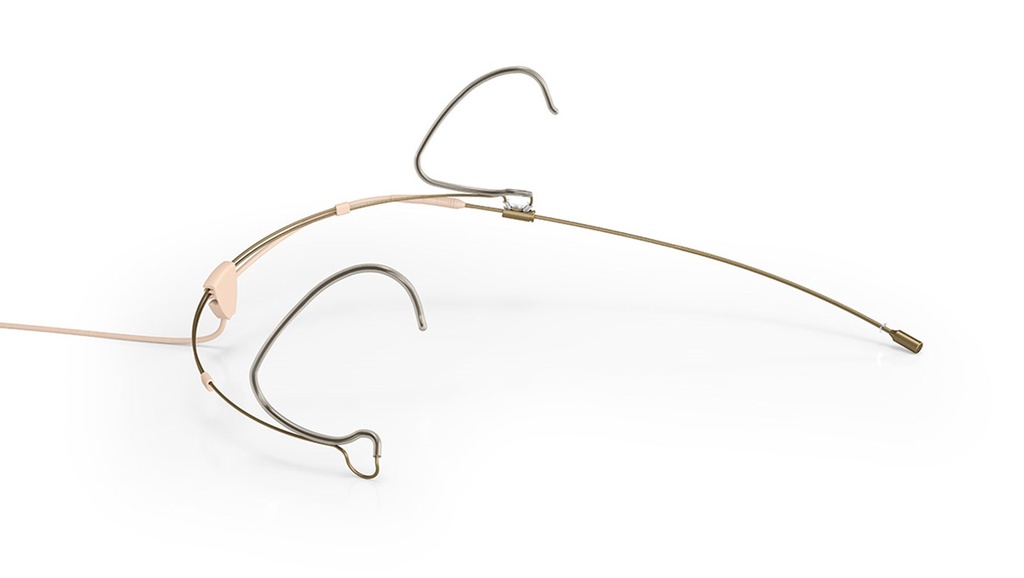

The DPA 6066 CORE is an ultra-discreet 3 mm subminiature omnidirectional headset microphone that delivers the renowned DPA sound in an incredibly compact format. Despite its tiny capsule size, the 6066 provides exceptional clarity, consistency and durability — making it ideal for theatre, broadcast, worship and corporate presentations.
This version features a beige finish, reinforced headset frame, and MicroDot connector for use with DPA wireless adapters.
🎤 3 mm CORE Technology
The 6066 integrates CORE by DPA technology into a 3 mm capsule — significantly reducing distortion while maintaining the sonic quality of DPA’s larger 5 mm miniature microphones.
-
Lower distortion across all SPL levels
-
High clarity from whisper to powerful vocals
-
Noise floor: 26 dB(A) typical
-
Max SPL: 144 dB peak
It is currently the only 3 mm headset microphone that delivers full DPA-level sonic performance.
🎧 Advanced Headset Design
-
One-size-fits-all stainless steel frame
-
3-point ear grip system (above, below and behind ear)
-
2-way adjustable 130 mm boom (length & height)
-
Anti-rotate boom locking system
-
90° cable management system
-
Kevlar-reinforced 1.6 mm cable
The entire headset is PVD-coated for durability and minimal visual reflection on stage or camera.
🔊 Performance Specifications
-
Polar Pattern: Omnidirectional
-
Principle: Pre-polarized condenser
-
Frequency Response: 20 Hz – 20 kHz
-
Effective Range: 40 Hz – 20 kHz (±2 dB)
-
Sensitivity: 6 mV/Pa (-44 dB re. 1 V/Pa)
-
Equivalent Noise: 26 dB(A) typical
-
Dynamic Range: 102 dB typical
-
Max SPL (10% THD): 144 dB peak
-
Output Impedance: 30–40 Ω (MicroDot)
-
Power Requirement: 5–10 V via DPA adapter
-
Weight: 11 g (incl. cable & connector)
-
Capsule Diameter: 3 mm
-
Cable Length: 1.3 m
-
Colour: Beige
-
Connector: MicroDot
🔌 Wireless Compatibility
The MicroDot termination allows connection to major wireless systems using a DPA adapter (sold separately), including:
-
Sennheiser
-
Shure
-
Lectrosonics
-
Wisycom
-
Audio-Technica
