DPS Beige 4066 Omnidirectional Headset Mic Microdot Connector

4066 Omnidirectional Headset Mic  Requires Microdot Adaptor to Work

 Resistant to humidity

 Double-vent protection system

 Available in three colors and three sizes

 Modular adapter system fits most professional wireless systems


The headset construction is unique. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications, is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity.

The microphone’s sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly, the microphone will be able to handle very high sound pressure levels up to 144 dB SPL before clipping occurs.


4066 Omnidirectional Headset Mic

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz – 20 kHz
Effective frequency range ±2 dBSoft boost grid: 40 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 40 Hz – 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
Distortion, THD < 1%134 dB SPL RMS, 137 dB SPL peak
Dynamic rangeTyp. 111 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedance30 – 40 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)For wireless systems Min. 5 V – max. 10 V through DPA adapterWith DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
ConnectorMicroDot
Weight14 g (0.5 oz) incl. Cable and MicroDot connector
Microphone diameter5.4 mm (0.21 in)
Cable length1.2 m (3.9 ft)
Cable diameter1.6 mm (0.06 in)
PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%

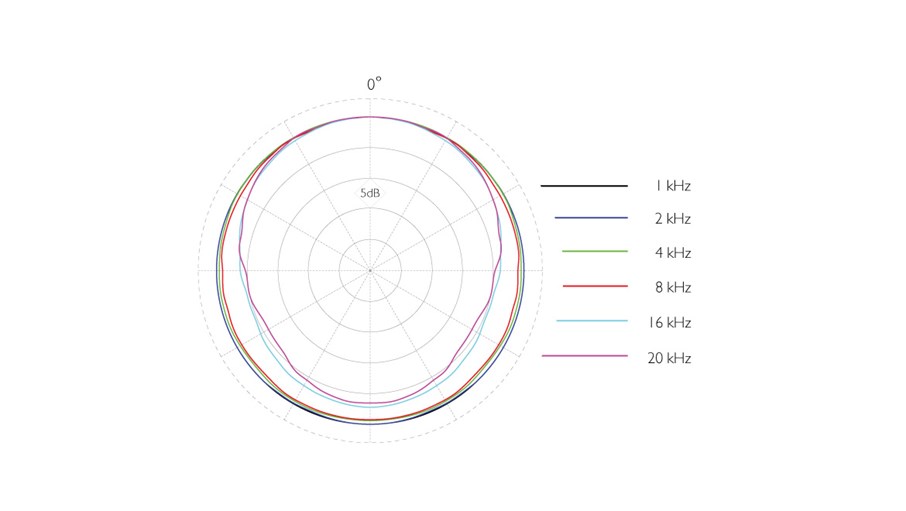

Polar pattern

Typical directional characteristics of a 4066

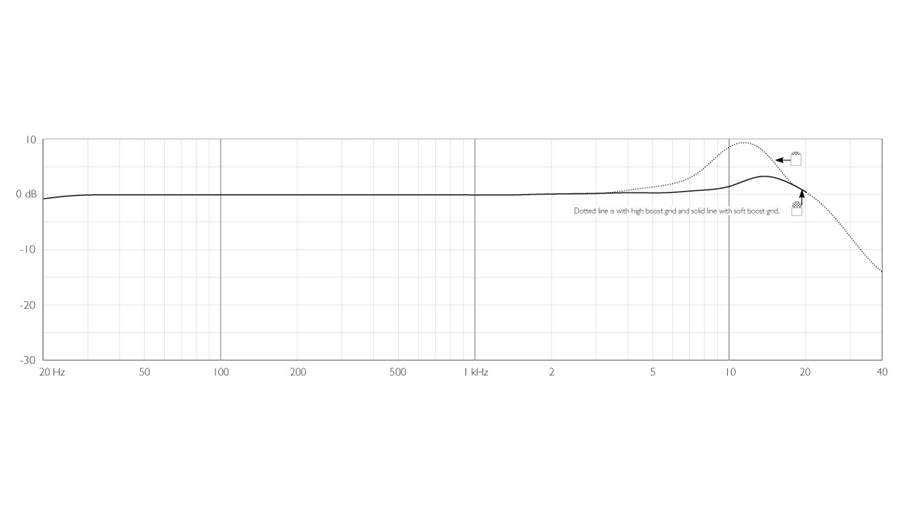

Frequency response

Typical on and off-axis response of a 4066
