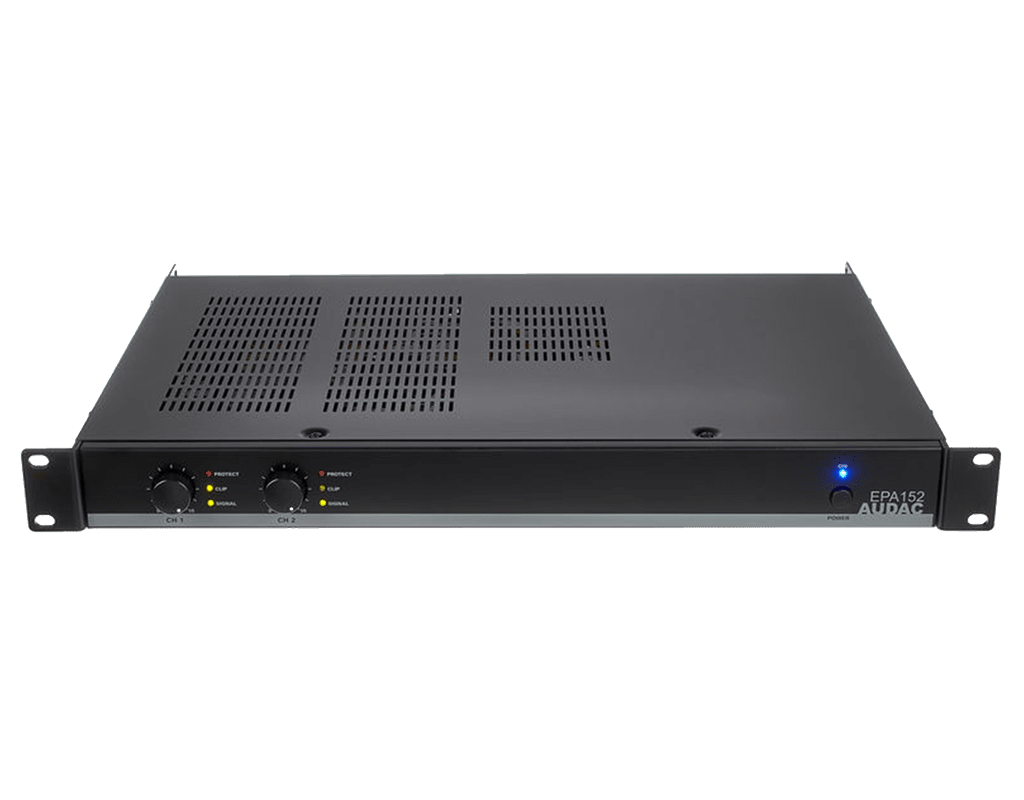

Dual Channel Amplifier 2 x 100w 1 U

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.


SYSTEM SPECIFICATIONS

Signal / Noise
> 90 dB

THD+N (@ 1 kHz)
70 dB

Technology
Class-D

Protection
DC Short circuit


Over heating


Over load


Signal limiting

Cooling
Convection cooled

Operating temperature
0° ~ 40° @ 95% Humidity

Frequency
Response (± 3 dB)
20 Hz – 20 kHz

Power
Supply
Switching mode



100 ~ 240 V AC / 50 ~ 60 Hz


Consumption
145 W

Inputs
Sensitivity (1W/1m)
0 dB (1V RMS)


Impedance
12 kΩ balanced


Connector
XLR female with Male Linkthrough

Outputs
Connector
Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)

Power
Consumption
Standby
0.8 Watt (30 min standby time)

RMS Power
@ 4 Ω Stereo
2 x 150 W


@ 8 Ω Bridge
300 W


@ 8 Ω Stereo
2 x 80 W

PRODUCT FEATURES

Dimensions
482 x 44 x 330 mm (W x H x D)

Weight
4.100 kg

Mounting
19”

Unit height
1 HE

Construction
Steel

Colours
Black
