E100 Amp Keypad & Accessories – Power supply

Systemline E100
E100 is an elegant, splash proof integrated music system featuring wireless Bluetooth streaming, built-in DAB+/FM radio and alarm functionality. The system delivers a superior stereo sound experience, across any living space or interior setting.

E100 Features

Splash proof
IP54-rated for use in bathrooms and kitchens

Radio
On board DAB+/FM radio with four saved pre-set options

Superb sound
Includes two stylish low profile, high performance in-ceiling speakers

Wireless streaming
Wireless Bluetooth connectivity for use with all major streaming services

Alarm
Integrated alarm functionality

TV sound input
Integrated TV audio connection for an immersive experience

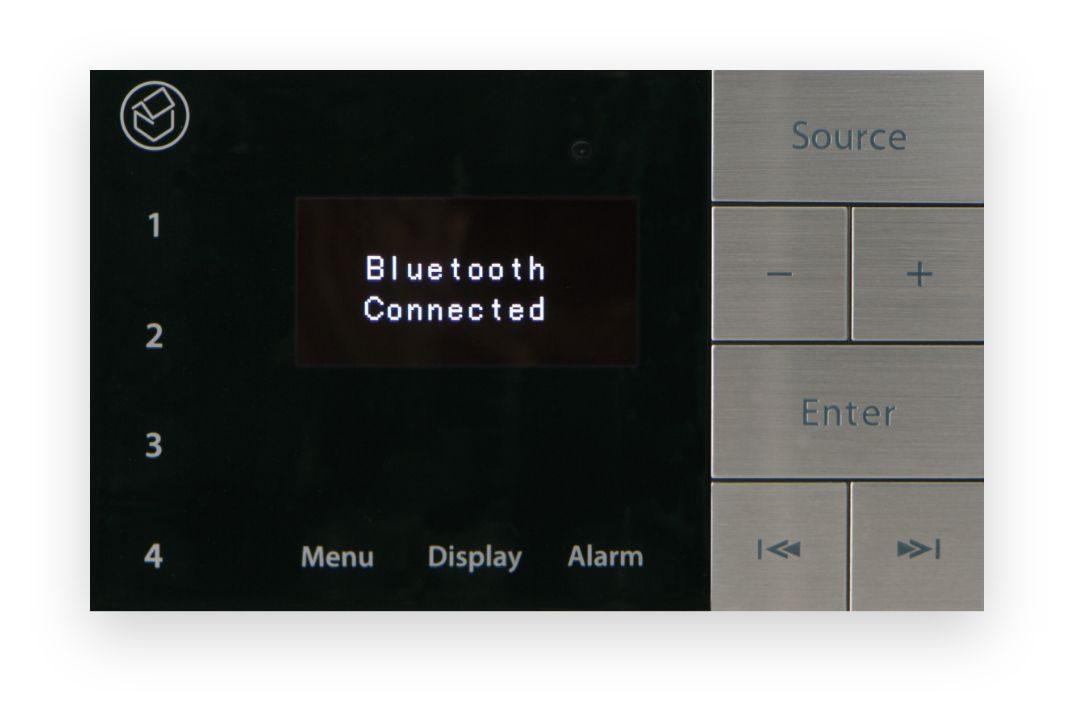

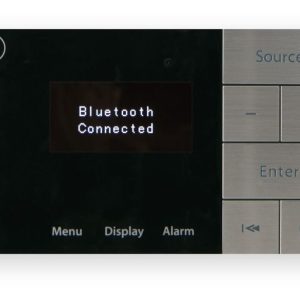

Features- No clutter – E100 Keypad is built into the wall or kitchen cabinet (W – 150mm, H – 90mm, D – 40mm)- Built in 18 Watt RMS Stereo amplification (4 Ohm stable / Run up to two pair of 8 Ohm speakers)- Touch sensitive panel with stainless steel buttons- Bright OLED display- Built in Bluetooth audio receiver – which facilitates robust wireless music streaming from any suitablyequipped smart phone, tablet or laptop (aptX and AAC)- FM / DAB+ Radio- Superb sound quality with superior stereo sound stage delivered from separate left and right 6.5″ installedspeakers.- Multiple Deployment (Supports up to 10 units with in one installation).Supports up to 10 different Bluetooth address’s to facilitate the identification of one E50 from another.- Aux rear jack socket – Eg – TV sound connection (Analog)- Clock and Alarm- IR Remote- Elegant design with an attractive gloss black finish
Accessories Included- Requires Flush box (double euro)- DC power supply- DC power supply extension cable (5m)- 2 basic Speaker Cables (7m)- DIY instructions- Aerial Lead- IR Remote

Systemline E100 specifications
Radio

DAB/DAB+ and FM with RDS 4 preset stations

Bluetooth

Class 2 Bluetooth 2.1 aptX for CD-quality transmission
Secure pairing system
Selectable device name to allow multiple units to be used in close proximity
Range up to 10m

Alarms

2 separate alarms configurable for weekday or weekend operation

Languages Supported

English, Chinese, Danish, Finnish, French, German, Italian, Norweigan, Spanish and Swedish

Aux Input

725mV Normal Gain or 250mV Boost Gain

Power Output

2 x 18W into 8 Ohms @ 0.5% THD 1kHz

Frequency Response

20Hz – 20kHz +/- 1dB

Power Supply

110-240 VAC

Recommended Speaker Options from Q Acoustics and Audica Pro
Q AcousticsIn-ceiling – QI 65CB or QI 65C (One or two pair)Outdoor – QI 45EW (White or Black)Bookshelf – 3010 (Graphite, Walnut, Gloss Black or White)Satellite – Q7000 L/R (White or Black)In-wall – QI65RPIn-ceiling weatherproof – QI 65CWAudica ProIn-ceiling – Microdot (One or Two pair) Great for boardrooms, Reception areas, etc…Satellite – Micropoint (White or Black) Great for small cafes, retail stores, etc…
