Systemline E100
E100 is an elegant, splash proof integrated music system featuring wireless Bluetooth streaming, built-in DAB+/FM radio and alarm functionality. The system delivers a superior stereo sound experience, across any living space or interior setting.
Each E100 comes with is supplied with a stylish touch control wall panel, two install speakers, a double gang-back box, remote control and speaker cable for a super simple installation process.
E100 Features
Splash proof
IP54-rated for use in bathrooms and kitchens
Radio
On board DAB+/FM radio with four saved pre-set options
Superb sound
Includes two stylish low profile, high performance in-ceiling speakers
Wireless streaming
Wireless Bluetooth connectivity for use with all major streaming services
Alarm
Integrated alarm functionality
TV sound input
Integrated TV audio connection for an immersive experience
Features
– No clutter – E100 Keypad is built into the wall or kitchen cabinet (W – 150mm, H – 90mm, D – 40mm)
– Built in 18 Watt RMS Stereo amplification (4 Ohm stable / Run up to two pair of 8 Ohm speakers)

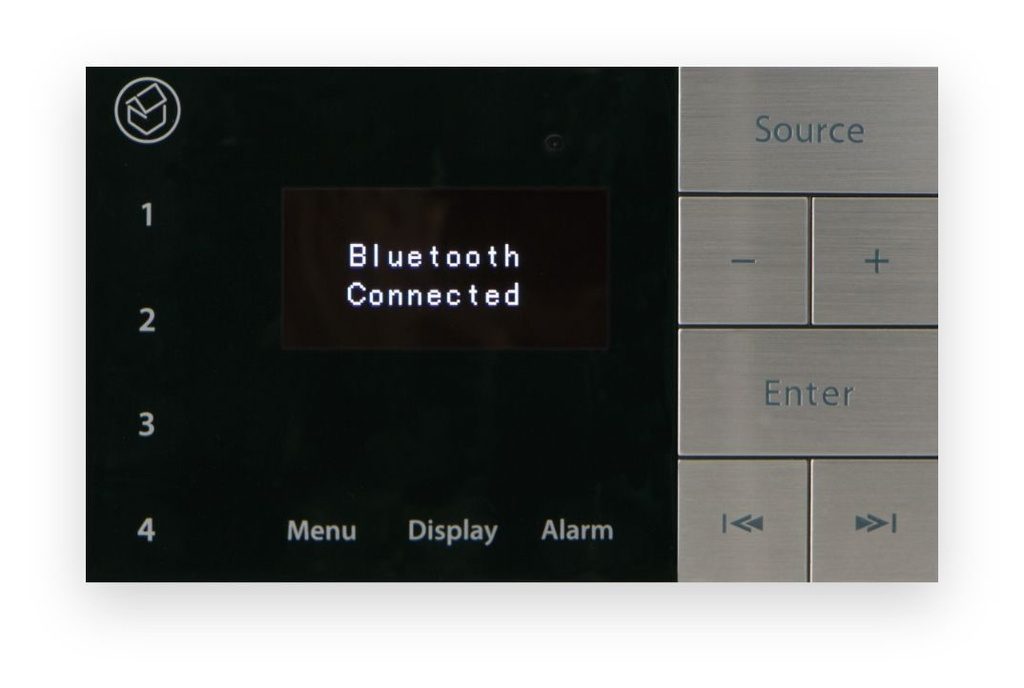

– Touch sensitive panel with stainless steel buttons
– Bright OLED display
– Built in Bluetooth audio receiver – which facilitates robust wireless music streaming from any suitably
equipped smart phone, tablet or laptop (aptX and AAC)
– FM / DAB+ Radio
– Superb sound quality with superior stereo sound stage delivered from separate left and right 6.5″ installed
speakers.
– Multiple Deployment (Supports up to 10 units with in one installation).
Supports up to 10 different Bluetooth address’s to facilitate the identification of one E50 from another.
– Aux rear jack socket – Eg – TV sound connection (Analog)
– Clock and Alarm
– IR Remote
– Elegant design with an attractive gloss black finish
Accessories Included
– Requires Flush box (double euro)
– DC power supply
– DC power supply extension cable (5m)
– 2 basic Speaker Cables (7m)
– DIY instructions
– Aerial Lead
– IR Remote
Systemline E100 specifications
Radio
- DAB/DAB+ and FM with RDS 4 preset stations
Bluetooth
- Class 2 Bluetooth 2.1 aptX for CD-quality transmission
- Secure pairing system
- Selectable device name to allow multiple units to be used in close proximity
- Range up to 10m
Alarms
- 2 separate alarms configurable for weekday or weekend operation
Languages Supported
- English, Chinese, Danish, Finnish, French, German, Italian, Norweigan, Spanish and Swedish
Aux Input
- 725mV Normal Gain or 250mV Boost Gain
Power Output
- 2 x 18W into 8 Ohms @ 0.5% THD 1kHz
Frequency Response
- 20Hz – 20kHz +/- 1dB
Power Supply
- 110-240 VAC
Recommended Speaker Options from Q Acoustics and Audica Pro
Q Acoustics
In-ceiling – QI 65CB or QI 65C (One or two pair)
Outdoor – QI 45EW (White or Black)
Bookshelf – 3010 (Graphite, Walnut, Gloss Black or White)
Satellite – Q7000 L/R (White or Black)
In-wall – QI65RP
In-ceiling weatherproof – QI 65CW
Audica Pro
In-ceiling – Microdot (One or Two pair) Great for boardrooms, Reception areas, etc…
Satellite – Micropoint (White or Black) Great for small cafes, retail stores, etc…
