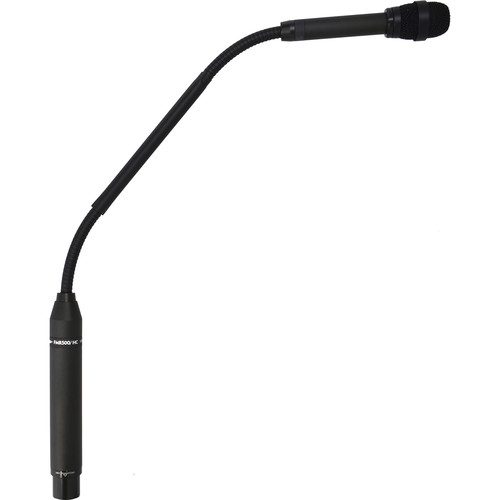

Earthworks FMR500/HC 19″ (500mm) Hypercardioid Podium Microphone

19″ (500mm) Hypercardioid Podium Microphone with rigid centre and flex on both ends. Incorporates Earthworks patented technologies for a very high level of speech intelligibility and uniform off-axis response to ensure consistent sound whether speaking in front, or to the side of the mic. 145dB max input, incredible rear rejection, no handling noise. 50Hz-20kHz. Black.

20Hz – 20kHz
Hypercardioid
20mV/Pa (-34dBV/Pa)
24-48V Phantom, 10mA
139dB SPL
XLR-3 (pin 2+)
600 ohms between pins 2 & 3
16dB SPL equivalent (A weighted)
Rigid center with 2.5in. to 3in. flex on
both ends. Diameter .316 in. (8mm)
Base diameter is .860” (22mm)
Lengths: FMR 500 18.3 in. (46.5cm)
0.3 lb. (137g)

The microphone shall be a back-electret condenser type with a wide-range uniform frequency response of 20 Hz to 20 kHz. The microphone shall have an output level of 10 mV/
Pa. The microphone shall be of a single capsule,
single membrane design. The microphone shall
have an impulse response with the rise time no
longer than 25 microseconds, and total settling
time, including the rise time, no longer than 120
microseconds. The microphone shall have polar characteristics uniform in all planes to form
either a cardioid or hypercardioid of revolution. Response at any angular position up to
90° away from the major axis within frequency
range from 500 Hz to 16 kHz shall deviate by
no more than ±3 dB from the ideal cardioid or
hypercardioid pattern as described by the following equation: SPL(a)=20*Log(1/2+cos(a)/2)
(dB), where a is the angle in radians between
the measurement source position axis and the
major axis. The microphone shall accept sound
pressure levels up to 139 dB producing no more
than 3% THD. Gooseneck will have a rigid center section with flexible gooseneck at both ends.
Overall length above the XLR connector shall
be 18.3 in. (46.5cm) long for FMR500, 22.8 in.
(58cm) long for FMR600 and 26.6 in. (67.6cm)
long for the FMR720. The maximum head diameter shall be 1.0 in (25 mm).The microphone
shall be terminated with a professional goldplated 3 pin XLR connector. The microphone
shall include an external windscreen. The microphone shall require 24-48V phantom power.
The microphone shall be made of metal with
black finish.
