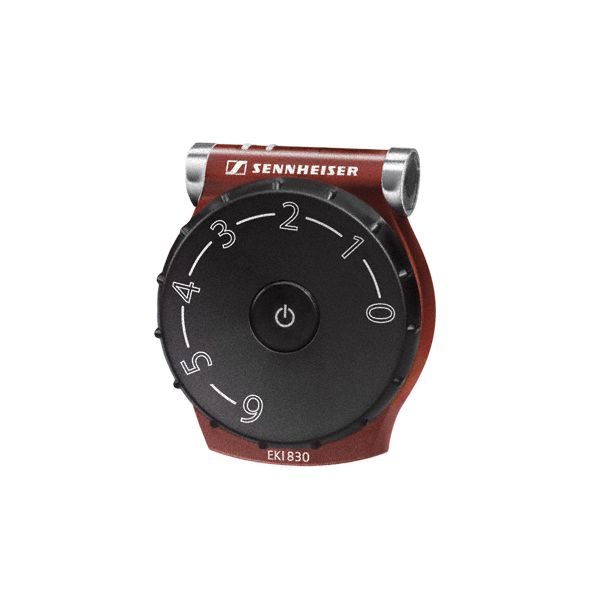

EKI 830

Infrared wideband receiver with 3.5mm socket two-channel applications. 2.3 and 2.8 MHz capability Balance control for setting the volume for the right and left ear Ergonomic volume control.Lithium polymer battery and Lanyard included

Overview

The EKI 830 IR bodypack receiver is a variant of the RI 830 S. It works on the two wideband frequencies 2,3 and 2,8 MHz and can be used in single channel mono or dual channel stereo mode.


Features

Ideal for wearers of hearing aids: receiver can be connected to hearing aids
Receiver is also ideal for use with headphones (3.5 mm stereo jack plug )
Outstanding stereo sound
Firmware settings optimized for IS application (channel saving, less warning beeps)
Large, ergonomically shaped volume control and balance control on the receiver
Channel indication LEDs
Lithium polymer battery ensures a long operating time of up to 12 hours


What’s in the box?

1 bodypack receiver EKI 830
1 BA 300 battery

Technical Data

Dimensions

approx. 70 x 60 x 25 mm

Frequency response

50 Hz – 16000 Hz

THD, total harmonic distortion

< 1%

Weight

approx. 50 g (with rechargeable battery)

Charging time

approx. 3 hrs

Signal-to-noise ratio

(1 mV, peak deviation)typ. 75 dBA

Operating time

up to 12 hrs

Modulation

FM

Power supply

BA 300 lithium polymer battery

Carrier frequencies

2.3 MHz/2.8 MHz
