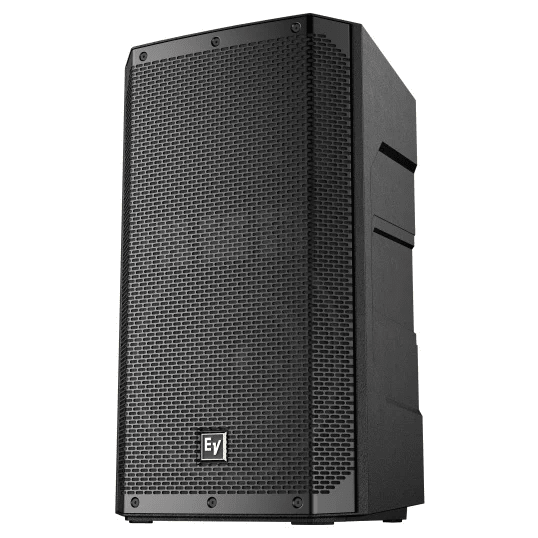

Electro-Voice ELX200-12 12 inch Passive Speaker

Description

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.

Features

Features:

1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

Specifications

Suspension
(3) M10 suspension points

Minimum Impedance
7.5Ω

HF Transducer
DH-1L 1-inch titanium compression driver

Speaker Type
Full-Range

Woofer Size
12inch

Frequency Response (-3 dB)¹
77 Hz – 17 kHz

Frequency Range (-10 dB)¹
51 Hz – 20 kHz

Max. SPL/1m (calc)²
128dB

Coverage (Nominal -6 dB) H
90°

LF Transducer
EVS-12M 300 (12 in)

Coverage (Nominal -6 dB) V
60°

Power Rating
1200W

Crossover Frequency
1.7 kHz

Connector Type
Dual NL4

Enclosure Material
Polypropylene composite

Grille
18 AWG steel with powdercoat

Available Color
Black or White

Height
24.76″ (629mm)

Width
14.29″ (363mm)

Recommended High-Pass Frequency
50 Hz

Depth
13.54″ (344mm)

Weight Net
33.51lbs (15.2kg)

Shipping Weight
37.7lbs (17.1kg)

Family
ELX200

Nominal Impedance
8Ω

Axial Sensitivity (SPL, 1 W @ 1 m)
93dB

Power Handling (Continuous / Peak)
300W/1200W
