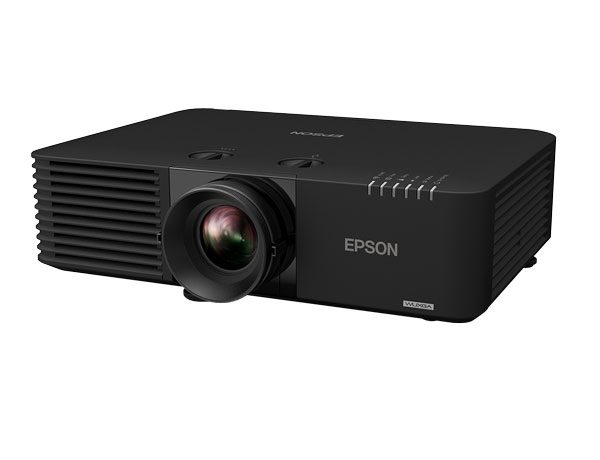

Epson Laser Projector 6000 WUXGA

KEY FEATURES & BENEFITS

Laser Light Source – Experience astonishing quality and reliability
Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
Amazing Colour Brightness – Up to 6,000 Lumens colour brightness and 6,000 Lumens white brightness
Amazing WUXGA High Definition Resolution – Enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
Extraordinary sharpness and detail – up to 2,500,000:1 dynamic contrast ratio
Bright and compact – The flat, simplified design makes the EB-L615U an ideal fit for a wide range of environments, including modern offices and luxury interiors
360° Installation – Install on any plane, from horizontal to vertical and everything in between
Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
HDBaseT – Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
Manual Lens Shift, Zoom and Focus– Up to ±50 percent vertical and ±20 percent horizontal manual lens shift
Digital Split Screen – Display content from two inputs simultaneously

* *Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.


Brighter, vivid projection
White brightness alone cannot bring the True Colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and True Colours to create vibrant and realistic images with 3LCD technology across every projector model.

3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don’t force a tradeoff between white and colour brightness.In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
* Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.

Laser Light Source
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.


Inorganic Components
Epson’s newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. We’ve also developed inorganic LCD panels – a key component of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector, results in bright and vibrant images for long periods.

6,000 lumens
Powered by 3LCD technology and Epson’s laser optical engine, the EB-L615U is capable of producing White Light and Colour Light Output of 6,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.

Custom brightness adjustment
The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level. This makes it easy to adjust the brightness to fit to your viewing environment, and can prolong projector life.

Manual Lens Shift, Zoom and Focus
The manual lens shift covers a wide range, offering a great deal of flexibility when installing the projector.

*±50% vertically, ±20% horizontally for EB-L510U/L610W/L610U/L615U

High Resolution
The Epson EB-L615U features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion.WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

ADVANCED INSTALLATION FEATURES



Incredible HDBaseT and Diverse Connectivity
Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree Projection
The Epson EB-L615U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Digital Split Screen
Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

Content Management
Epson Projector Content Manager Software enables users to quickly and easily sort and distribute content without any additional costs. Key features of the software include:

Creating playlists
Adding visual effects
Setting up remote shortcuts
Applying custom filters
Scheduling playlists

Content Playback
Save videos and photos to USB flash memory with our dedicated application, and project them instantly without the need for a PC.

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Collaborative Presenting
Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

Simple Control
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.

Universal Ceiling Mounts
EB-L615U is compatible with ceiling mount ELPMB22. If you are already using ELMB23, simply attach the lower parts of ELMB22 to EB-L615U. This eliminates the need for additional cable work or other construction.

ELPMB22 – Standard ceiling mount

ELPMB30- Low profile ceiling mount

Connectivity Panel




PRODUCT NAME
Epson EB-L615U

PRODUCT CODE
V11H901153

WHAT’S IN THE BOX



EB-L615U Projector, 3m Power Cable, 1.8m Computer cable, Remote control, 2 x AA Batteries, Cable cover, Product manual. (ELPAP10 wireless lan unit is built-in)

TECHNOLOGY


Projection System
RGB liquid crystal shutter projection system

LCD Panel
0.67-inch

OPTICAL


Zoom
1 – 1.6 (Optical)

Screen Size (Standard Lens)
50″ to 500″ [1.44m to 14.76m] (Zoom: Wide)50″ to 500″ [2.35m to 23.84m] (Zoom: Tele)

Projection Distance (Standard Lens)
80″ screen 2.33 m – 3.78 m

Throw Ratio
1.35 (Zoom:Wide), 2.20 (Zoom:Tele)

Projection Lens F Number
1.5 – 1.7

Projection Lens Focal Length
20.0mm – 31.8mm

Focus Method
Manual



Colour Light Output
6,000 Lumens

White Light Output
6,000 Lumens

Resolution
WUXGA

Native Aspect Ratio
16:10

Contrast Ratio
2,500,000:1

Light Source
Laser Diode

LD Input Power
246W

Keystone Correction (Standard Lens)
Vertical: ±30°Horizontal ±30°

Lens Shift (Standard Lens)
Vertical: ±50% (Manual)Horizontal: ±20% (Manual)

CONNECTIVITY


Input: Computer
2 x D-sub 15-Pin (RGB), 1 x USB-A, 1 x USB-B (Service)

Input: Digital
2 x HDMI

Input: Audio
2 x Audio

Input: Control
1 x RS-232C

Input: Network I/O
1 x RJ45

Input: HDBaseT
1 x HDBaseT

Output: Computer
1 x D-sub 15-Pin (RGB)

Output: Audio
1 x Audio

Wireless Connectivity
Included

Miracast
Included

Speaker Output
1 x 10W

ADVANCED FEATURES


EPSON Projector Management (Network & Control)
Yes

EPSON iProjection (Multi-PC Projection)
Yes

Wireless LAN Enterprise Security
Yes

Split Screen
Yes

360 Degress Projection
Yes

Instant Off
Yes

Direct Power On/Off
Yes

Security
Kensington®-style lock provisionWireless LAN Unit LockSecurity cable hole

Colour Modes
DynamicPresentationCinemasRGBDICOM SIMMulti-Projection

GENERAL


Dimensions D x W x H (Including feet and back cover)
339 x 440 x 136 mm

Dimensions D x W x H (Excluding feet and back cover)
304 x 440 x 120 mm

Weight
Approx. 8.5Kg

Projector Warranty
5 Years

Power Consumption: LD On
353W

Power Consumption: Standby
2.0W

Noise Level
Normal/Quiet: 38/27 dB

PRODUCT OPTIONS
Item Code
Description


V13H134A56
ELPAF56 Replacement Filter


V12H547053
HDBaseT Transmitter


V12H731P01
Wireless LAN Adaptor


V12H003B22
ELPMB22 Standard ceiling mount


V12H526040
ELPMB30 Low profile ceiling mount


V12H003P13
Extension Pole 668-918 mm


V12H003P14
Extension Pole 918-1,168 mm


V12H002S2Y
ELPSC21B 80″ Portable tripod screen
