DESCRIPTION

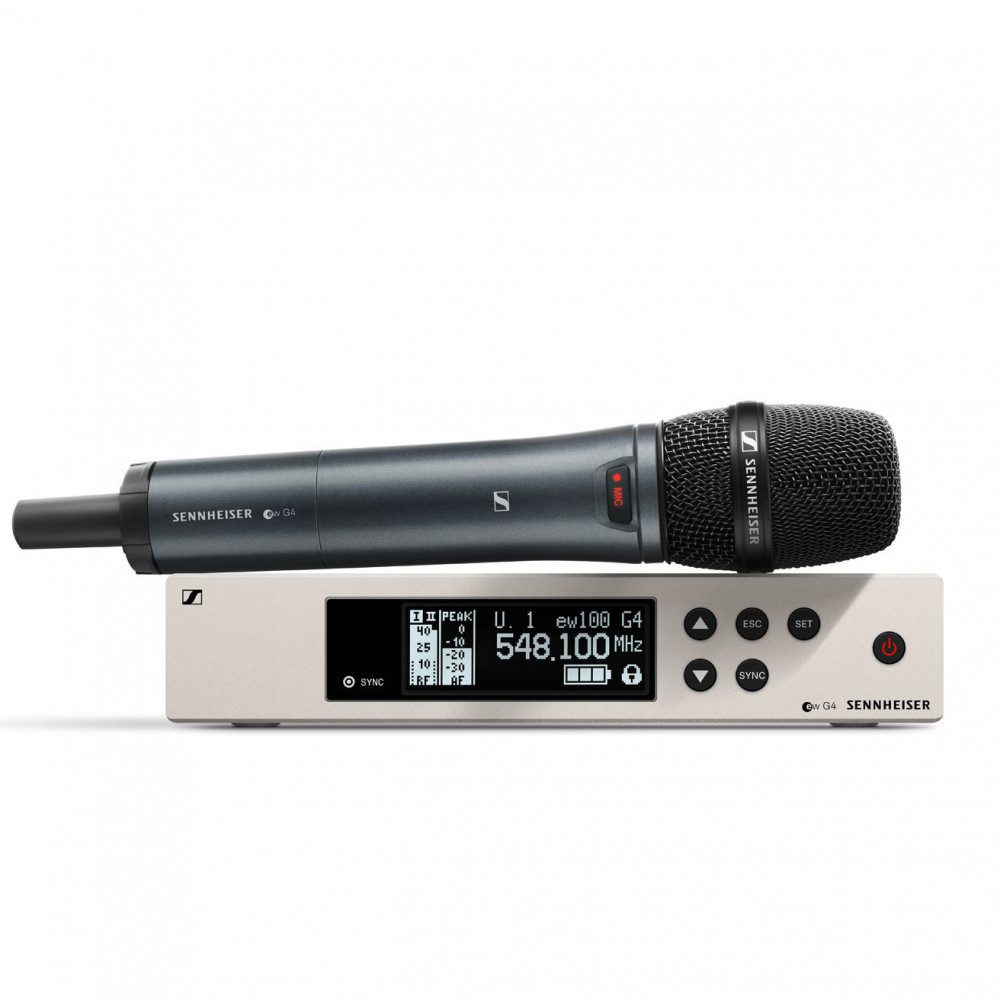

EW 100 G4-865-S-A
Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
OVERVIEW
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845 and e 865 capsules on a lightweight aluminium transmitter with integrated mute switch.
FEATURES
– Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
– State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
– True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
– Easy and flexible wireless synchronisation between transmitter and receiver via infrared
– Fast frequency allocation for up to 12 receivers via new linking functionality
– Up to 20 compatible channels
– Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
– Transmission Range: up to 100 metres / 300 feet
– High RF output power (up to 30 mW) depending on country regulations
WHAT’S IN THE BOX?
– EM 100 G4 true diversity receiver
– SKM 100 G4-S handheld transmitter
– MMD 835-1 microphone head (835-S variants only)
– MMD 845-1 microphone head (845-S variants only)
– MME 865-1 microphone head (865-S variants only)
– GA 3 rackmount set
– MZQ 1 microphone clamp
– power supply
– 2 AA batteries
– 2 rod antennas
– RJ 10 cable
– quick guide
– safety guide
– manufacturer declaration sheet
– frequency supplement sheet
SPECIFICATIONS
EM 100 G4
Frequency Range: 516 – 558 MHz
Dimensions: Approx. 190 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
Signal-to-noise ratio: ≥ 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 300 mA
Adjacent channel rejection: Typically ≥ 65 dB
Intermodulation attenuation: Typically ≥ 65 dB
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 2.5 μV for 52 dBA eff S/N
Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Equaliser: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 °C to +55 °C
Receiver Principle: True diversity
Blocking: ≥ 70 dB
SKM 100 G4-S
Dimensions: Approx. Ø 50 x 265 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight (incl. batteries): approx. 450 g
Signal-to-noise ratio: ≥ 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm
MME 865-1
Sound pressure level (SPL): 152 dB SPL
Transducer principle: pre-polarised condensor microphone
Pick-up pattern: supercardioid
Sensitivity: 1.6 mV/Pa
Wireless vocal set. Includes (1) SKM 100 G4-S handheld microphone with mute switch, (1) e 865 mic capsule (supercardioid, condenser), (1) EM 100 G4 rackmount receiver, (1) GA3 rack kit, (1) RJ10 linking cable and (1) mic clip (626-668 MHz)
