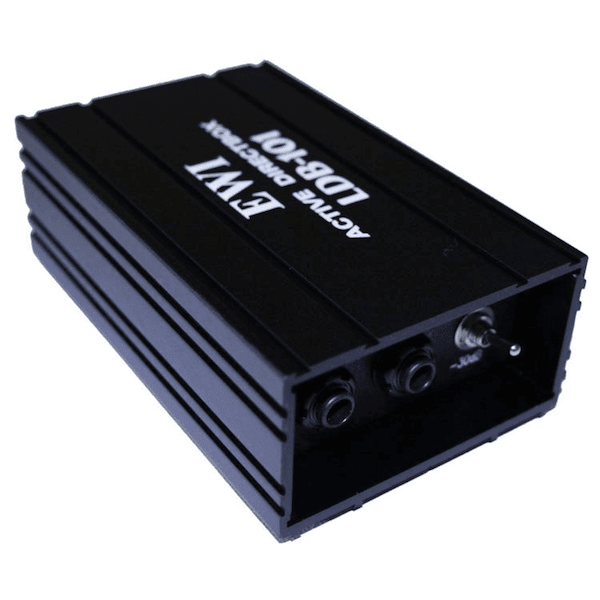

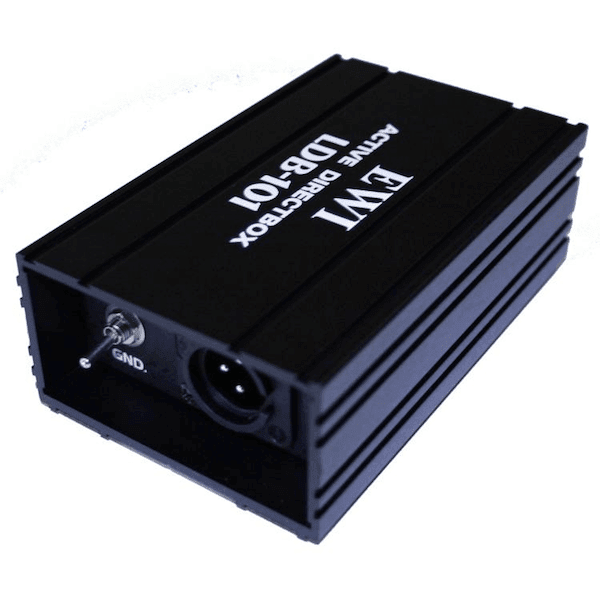

The LDB-101 active direct box serves as an optimal connection of a musical instrument with high impedance unbalanced output to a low impedance balanced input of a mixer. By means of the balanced connections to the mixer, interference can also be avoided in case of long connecting cables. In case of problems with hum loops, the ground connections between instrument and mixer can be separated by means of the ground lift switch. Then the devices are D.C. separated. High signal levels can be reduced by means of the reductor and can be adapted to the mixer input. There by, the LDB box can also be connected directly to the speaker output of an instrument amplifier. Consequently the influence of the sound at the mixer input will be maintained by the amplifiers (e.g. guitar or tube amplifier).
Warranty: 3 Years
Frequency Resp. – – – – – – – – 20Hz to 20kHz ±0.5dB
Attenuator – – – – – – – – – – – 0, -30 dB
Inputs Impedance – – – – – – – – – 1MΩ, unbalanced 1/4″ jack
Outputs Impedance – – – – – – – – – – 600Ω, balanced XLR
Power Requirements – – – – – – – 9V PP3 Battery or 48V Phantom Power
Dimensions (WxHxD) – – – – – – – 81 x 44 x 130 mm
Weight – – – – – – – – – – – – – 498 g
