Chauvet Gig Bar Move Plus With Ils – Complete Lighting System

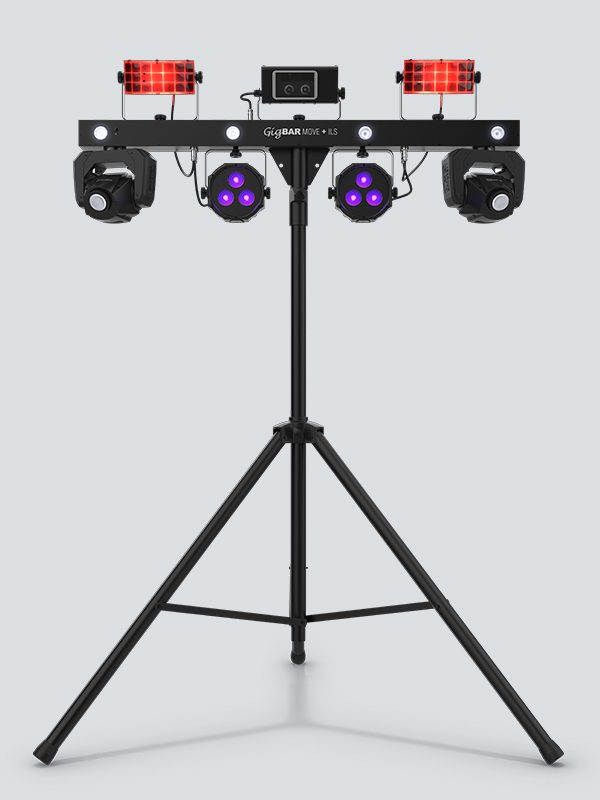

Chauvet DJ GigBAR Move + ILS

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar.

Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit!

The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

HIGHLIGHTS

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

SPECIFICATIONS

• DMX Channels: 3, 28, or 50
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/180°
• Colours:
  (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos:
  (moving head): 9 + open, continuous scroll at variable speeds
• Light Source:
  (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
  (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
  (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
  (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
  (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 30 Hz
• Beam Angle:
  (moving head): 17°
  (pars): 22°
  (strobe): 30°
• Field Angle:
  (pars): 33°
  (strobe): 62°
• Coverage Angle:
  (derby): 131°
  (laser): 93°
• Fits Tripod Size: 1.5 in (37.4 mm)
• Illuminance:
  (pars): 1,205 lux @ 2 m (per par)
  (moving head): 5,140 lux @ 2 m (per head)
  (strobe): 130 lux @ 2 m
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  250 W, 3 A @ 120 V, 60 Hz
  248 W, 1.8 A @ 230 V, 50 Hz
• Weight: (bar only) 31 lbs (14 kg)
• Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Approvals: CE, UKCA, RoHS, FCC, FDA
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Cable Length: 10 ft (3 m)
• Tripod Thickness: 1.37 in (35 mm)
• Optional Controllers: RF
• RF Remote Battery: 23A, 12 V alkaline

WHATS INCLUDED

• GigBar Move Plus ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual
