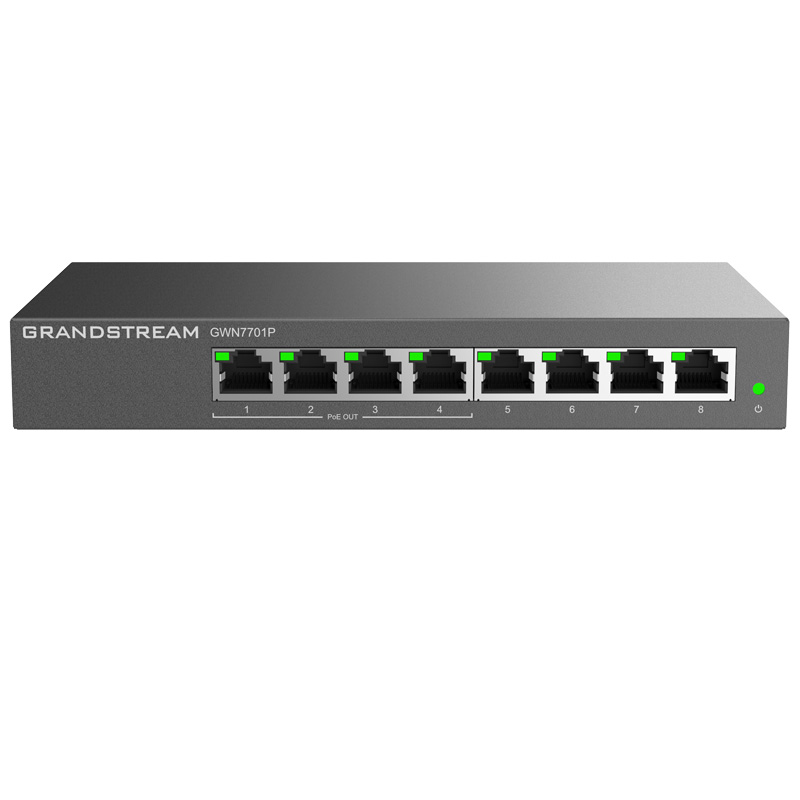

The Grandstream GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to-medium businesses.
Features
8 Gigabit RJ45 ports, 4 port PoE+ output
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity/Speed Per device: Power
Auto MDI/MDIX crossover for all ports
802.3af/at compliant Up to 30W on each port
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Unlink clear FDB Feature
QoS – Supports Default Strict Priority when present
Details
Manufacturer’s Code
GWN7701P
Manufacturer’s Code
GWN7701-AU
Gigabit Ports
8
PoE Port
4
Enclosure
Metal
Mounting
Desktop/Wall-Mount
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature
(8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Port Feature
1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration
Ports 1-4 802.3af/at compliant, 30W per port, total power budget 60W
LED Indicators
Per port: Link/Activity Green, Per device: Power Green
MAC Address Table
8K
Switching Capacity
16Gbps
Jumbo Frame
9KB
Advanced Features
Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP
Power Adapter
External 48-53.5VDC/1.22A
Max Power Consumption by Base System
3W (excluding PoE output power)
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
Unit:190 x 100 x 28mm
