HDMI 2.0/HDBaseT 2.0 18Gpbs HDR Splitter/Extender

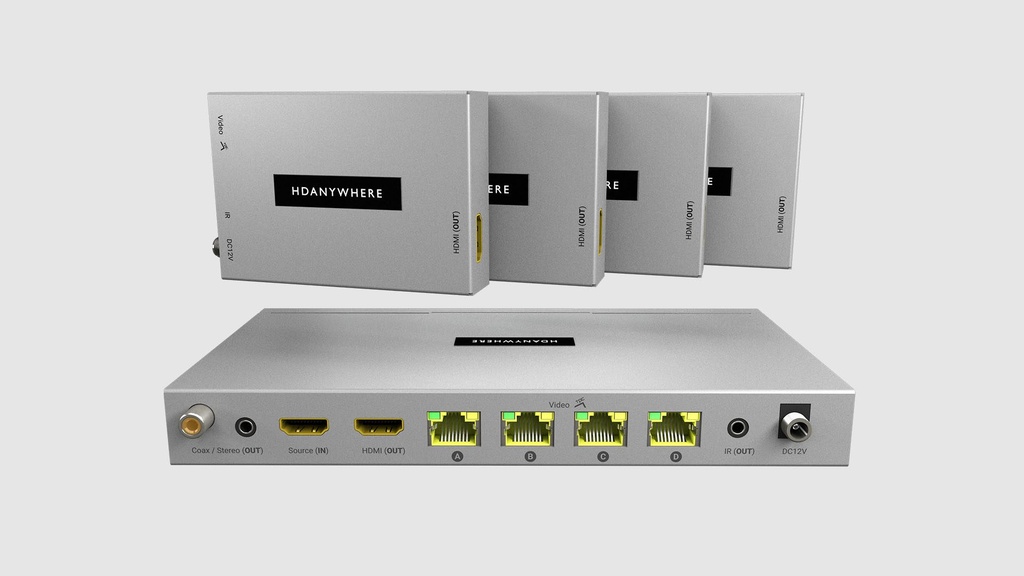

Designed for the most modern home entertainment market requirements, the XTND4K14140TPC is fully HDMI 2.0 compatible, boasting 18G HDMI interfaces that support the latest 4K HDR video content,as well as 1080p, and Dolby Atmos surround sound.
This is distributed over a single Cat6 cable to 4 display locations, up to 40m/60m away with no latency, providing PoE power to the receivers, plus 1 HDMI out for a local display or daisy-chaining with another XTND or HDMI device.
Stereo or multichannel audio extraction is also available for media room setups.
Tipping Point Compression (TPC) enables the transmission of premium UHD/4K 60Hz 4:4:4 content, including (HDR10) over a single Cat6 cable, with no human-perceivable difference in video quality.
Features
| Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4 |
| 4K up to 40m (131ft) & 1080p up to 60m (197ft) |
| Digital audio support up to and including Dolby Atmos® and DTS:X® |
| Audio extraction over coax & stereo (source audio only – no downmix). |
| Backwards IR |
| EDID management |
| Power over Cable |
Specification
| TX / RX form factor | Steel / Aluminium |
| Inputs / outputs | 1 HDMI x 4 Cat +1 HDMI (Mirror), 3.5mm Stereo Jack, x1 Digital Coax |
| Transmission tech. | TPC |
| Video bandwidth | 18Gbps data |
| ESD protection | ±8kV (air-gap discharge) ± 4kV (contact discharge) |
| Control | N/A |
| Device weight | TX 617g / RX 155g |
| Package weight | 1700g |
| Dimensions (W/D/H) | TX 100 / 210 / 25 / RX 88 / 61 / 18mm |
| Power | DC12V/2.5A |
| Operating temperature | 0°C – 40°C / 32°F – 104°F |
| Storage temperature | -20°C – 60°C / -4°F – 140°F |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 14W (max) 0.5W (standby) |
| Guarantee | 2 Years |
