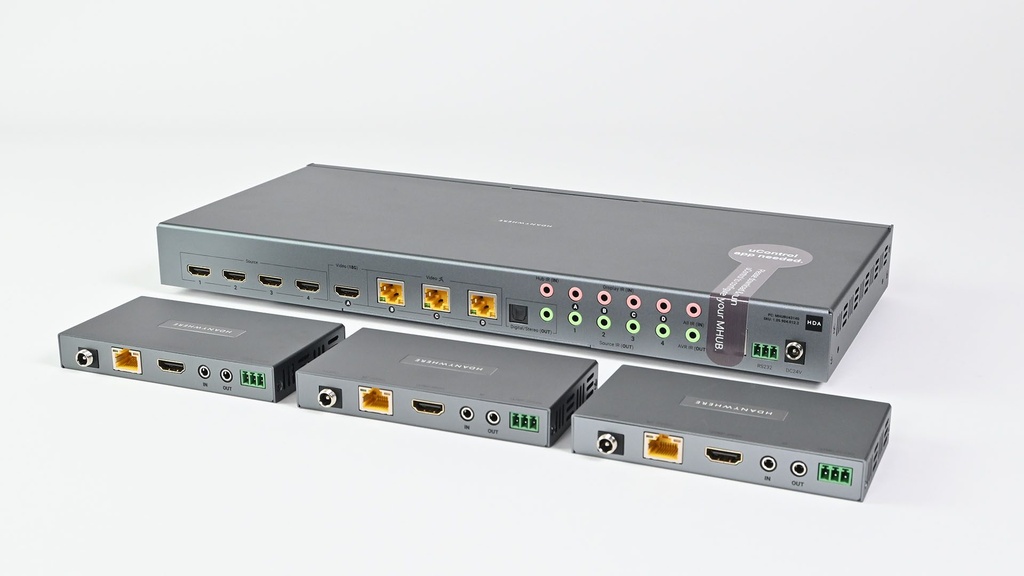

Cloud monitorable 4×3+1 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.
Features
| HDMI® 2.0 features supported up to 18Gbps |
| All display receivers powered via PoH |
| IR over HDMI injector dongle included |
| Web GUI for easy config and setup (MHUB-OS) |
| Remote system monitoring (HDA Cloud) |
| Advanced EDID management |
| Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision® |
| Supports all current audio formats up to and including Dolby Atmos® and DTS:X® |
| Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack |
| 4K>1080 down/up-scaling receiver option available |
| Sold as a complete install package, with Receiver, IR cables included. |
What’s in the box
Specification
| Form factor | Compact unit. Rack-mountable with optional 19”/1U kit (1.85.910.002.1) |
| Inputs x outputs | 4 HDMI x 3 RJ45 HDBaseT + 1 HDMI |
| Transmission tech | HDBaseT (VS010) + TPC and HDMI |
| Video bandwidth | HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Hub control | Web GUI, IR, TCP/IP, RS232, App, Alexa |
| App control | Full control over sources, matrix hub & display functions. |
| Device weight | Hub 1900g RX 125g |
| Package weight | 2500g |
| Dimensions (W/D/H) | Hub 372 / 167 / 36mm (without feet) RX 140 / 65 / 17mm |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 30W (max) 0.5W (standby) |
| Guarantee | 2/3-year guarantee (Cloud registration required) |
