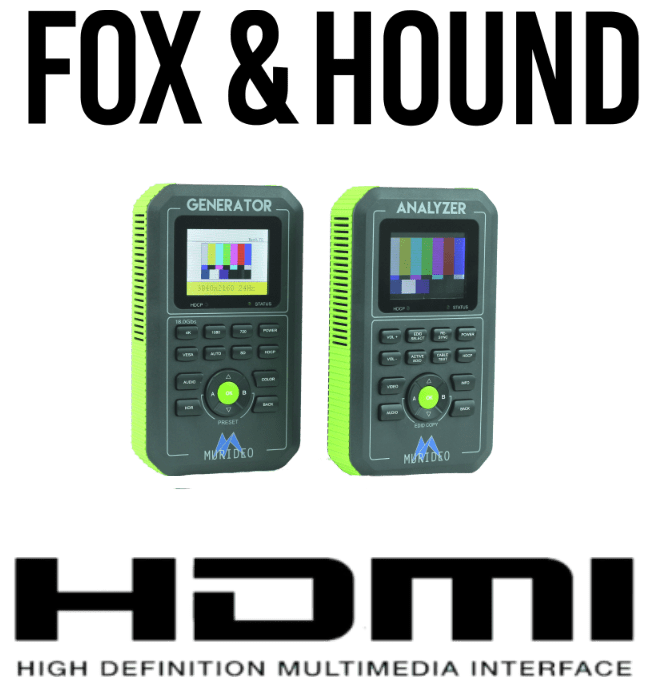

Video and Audio HDMI Distribution Testing KIT built with the custom and commercial integrator in mind.
This 18Gbps Generator and Analyzer Testing Kit(powered by Murideo Hardware) was built as the ideal testing unit for all custom and commercial integrators. The Fox & Hound Test Kit comes with an 18Gbps Generator and 18Gbps Analyzer. these tools allow you to confirm correct bandwidth, HDCP, resolution, timing, HDR metadata and many more options that could cause system hiccups if not treated correctly.
Sure, there are pricey test instruments available with a multitude of features, most of which the average integrator is not going to use. That is why we set out to develop a simple, affordable solution to troubleshoot system issues. The Fox & Hound: A/V Testing and Troubleshooting Kit is a product that can produce and analyze the newest and highest resolutions – 4K60 at 18Gbps. Its also affordable enough for every integrator to have on any install/service call!
HOW IT WORKS:
Place the generator in place of your source, and set the analyzer in place of your sink. These units will then read the data being sent throughout the system. The Fox & Hound can run any type of signal through the unit and confirm that same signal is being passed through the product with no changes. This will diminish calls to support and replacement of products! Troubleshooting is a breeze, never worry if a cable or extender is bad, again! Not to mention, it s fast ! Have your answer to a potential problem in less than a minute.
Generator Features:
HDCP select-able – 2.2, 1.4, none confirms if the system will work or not
Hot plug detect & HDCP lights
Portable/battery operated
EDID read functionality
Audio confidence tests
Optimized ergonomics 2 Colour display
RS-232 or USB controllable
HDMI 2.0(a/b) 600mcsc, 2160p60 (4:4:4) maximum resolution
HDR (high dynamic range) injector, and management
Video bandwidth – 18 Gbps
4K 10, 12, 16 bit support
HDCP 2.2 compatible
16 bit per pixel deep Colour depth available (48 bit)
Battery: 7.4v li-ion 2600mah internal rechargeable battery
DC 5v power
Analyzer features:
Analyze any HDMI/DVI signals up to 18Gbps (4096x2160p60 4:4:4)
Test HDMI/DVI cables up to 18Gbps
View up to 18Gbps video content & format info anywhere
Audio confidence tests, 2-channel & multichannel
Advanced EDID analysis & tools – read, write, EDID
Analyze HDR signals & metadata
HDCP tester – 2.2, 1.4, none
Portable, battery operated
HDMI 2.0(a/b) 600mcsc, 2160p60 4:4:4 maximum resolution analysis
HDR (high dynamic range) metadata infoframe reading and management
Video bandwidth – 18 Gbps
4K 10, 12, 16 bit support
HDCP 2.2 compatible
16 bit per pixel deep Colour depth available (48 bit)
Battery: 7.4v li-ion 2600mah internal rechargeable battery
DC 5v power
