The AVG-UDA24-HD70 supports switching between two video signals and long distribution range up to 4K 70m via CATx, with HDMI loop out for cascading. It supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats, and down-scaling from 4K to 1080P. Also supports Audio de-embedding and PoC to power the receiver.
Features
- Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
- Transmission distance up to 70m for 4K and 80m for 1080p

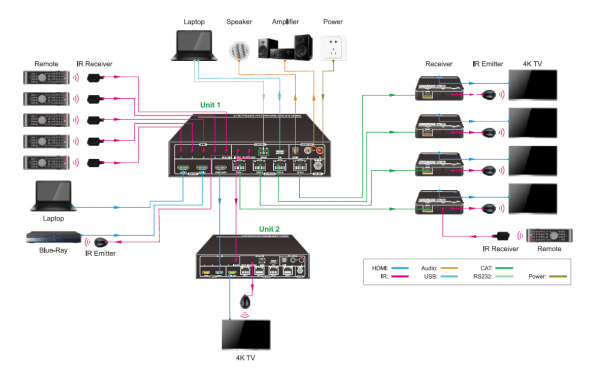

- Distributes one of two UHD/4K HDMI inputs to four CATx outputs and one HDMI loop output.
- Comprehensive EDID management
- Video auto-switching based on 5V or TMDS detection.
- SPDIF and L/R audio outputs for audio de-embedding.
- Bi-directional IR pass-through and IR cascade control.
- Controllable via front panel button, IR and RS232.
- 12V PoC to power the receiver.
SWITCHER
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Female Type A HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8 Bit |
| Video Output | |
| Output | (1) HDMI, (4) CAT |
| Output Connector | (1) Female type A HDMI; (4) RJ45 |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 |
| CAT Output Resolution | Up to 4K@60Hz 4:4:4 (Signal has been compressed.) |
| SPDIF Audio Output | |
| Audio Output |
(1) SPDIF |
| Audio Output Connector | (1) Toslink |
| Audio Format | LPCM 2ch, Dolby Digital 2ch, 5.1ch, 7.1ch, Dolby Ture HD 7.1ch, DTS 2ch, 5.1ch |
| Output Level | ±0.05dBFS |
| Frequency Response | 20Hz ~20kHz, ±1dB |
| THD+N | < 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 90dB, 20Hz ~20kHz bandwidth |
| Crosstalk Isolation | > 70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| Noise | -90dB |
| Stereo Balanced L/R Audio Output | |
| Audio Output | (1) Stereo balanced L/R audio |
| Audio Output Connector | (1) 5-pin terminal block |
| Audio Format | PCM |
| Frequency Response | 20Hz ~20kHz, ±1dB |
| Max output level | 2.0Vrms ± 0.5dB. |
| THD+N | < 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz ~20kHz bandwidth |
| Crosstalk Isolation | > 70 dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3 dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output Load Capability | 1kohm and higher (supports 10x paralleled 10kohm loads) |
| Noise | -80dB |
| Control | |
| Control port | (1) EDID, (1) FIRMWARE, (1) IR ALL IN, (4) IR IN, (1) IR LOOP OUT, (1) IR OUT, (1) RS232 IN |
| Control Connector | (1) 3-pin DIP switch, (1) USB-A, (7) 3.5mm mini jacks, (1) 3-pin terminal block |
| General | |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| PoC | 12V PoC power for the receiver |
| Transmission Distance | 4K≤ 70 meters (230ft), 4K/1080p ≤ 70 meters (230ft) |
| Operation Temperature | -10 ~ +55℃ |
| Storage Temperature | -25~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| AC Adapter Input Power | 100V~240V AC, 50/60Hz |
| Input Power | 12V DC 2A |
| Power Consumption | 14.5W (Max) |
| Dimension (W*H*D) | 200mm x 44mm x 130mm |
| Net Weight | 855g |
Note: SPDIF audio output does not support DTS-HD Master Audio and Dolby TrueHD format.
RECEIVER
| Video | |
| Input | (1) CAT |
| Input Connector | (1) RJ45 |
| Input Resolution | Up to 4K@60Hz 4:2:0 |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| Output Resolution | Up to 4K@60Hz 4:4:4 8bit HDR10 |
| Control | |
| Control Part | (1) IR In, (1) IR Out |
| Control Connector | (2) 3.5mm jacks |
| General | |
| Bandwidth | 18Gbps |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| Bidirectional PoC | Supported |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080p ≤ 15m |
| Transmission Distance | 4K ≤ 70 meters (230ft), 1080p ≤262 feet (80 meters) |
| Operation Temperature | -5~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output:12V DC 1A |
| Power Consumption | 4W (Max) |
| Dimension (W*H*D) | 80mm x 16.8mm x 80mm |
| Net Weight | 70g |
Note: Please use quality CAT Ethernet cable compliant with CAT5e or higher standard for reliable transmission.
