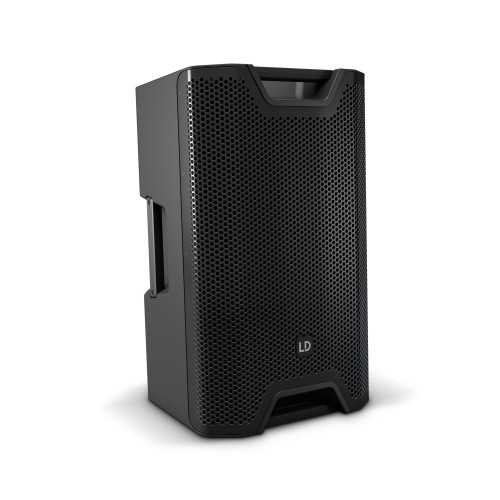

ICOA 12 12“ Passive Coaxial PA Loudspeaker

LD Systems ICOA 12 – 12″ Coaxial PA Loudspeaker

The LD Systems ICOA 12 is a full-range passive PA speaker that redefines versatility and performance in its class. Designed with a coaxial configuration and a rotatable BEM-optimized CD horn, it delivers outstanding sound for live performances, DJ setups, fixed installations, and more.

Whether used upright, as a stage monitor, or suspended, the ICOA 12 offers exceptional audio clarity with rich, deep bass and precise highs—ideal for vocals, instruments, or full-range playback.

Key Features:

• 12” Coaxial Woofer with Ferrite Magnet – Exceptional low-end performance and consistent dispersion.

• Rotatable CD Horn – Ensures optimal horizontal or vertical dispersion depending on speaker orientation.

• 1000W Peak Power Handling – Capable of high output with consistent clarity.

• Robust Bass Reflex Housing – Durable construction with heavy-duty steel grille and shock-resistant front.

• Dual-Angle Pole Mount – Supports both vertical and tilted speaker positioning.

• Ergonomic Carry Handles – For easy transport and setup.

• Versatile Mounting Options – Multiple M10 rigging points for flown installations.

Applications:

• Mobile sound reinforcement for DJs, bands, and events

• Fixed installations in clubs, venues, and theatres

• Monitor wedge use for performers and presenters

Specifications:

• Woofer: 12″ (304 mm)

• Tweeter: 1″ (25 mm) with rotatable horn

• Frequency Response: 55 Hz – 20 kHz

• Max SPL: 123 dB

• Impedance: 8 Ohms

• Power Handling (Continuous/Peak): 250 W / 1000 W

• Connectors: 2x NL4 Speakon compatible

• Weight: 15.8 kg
