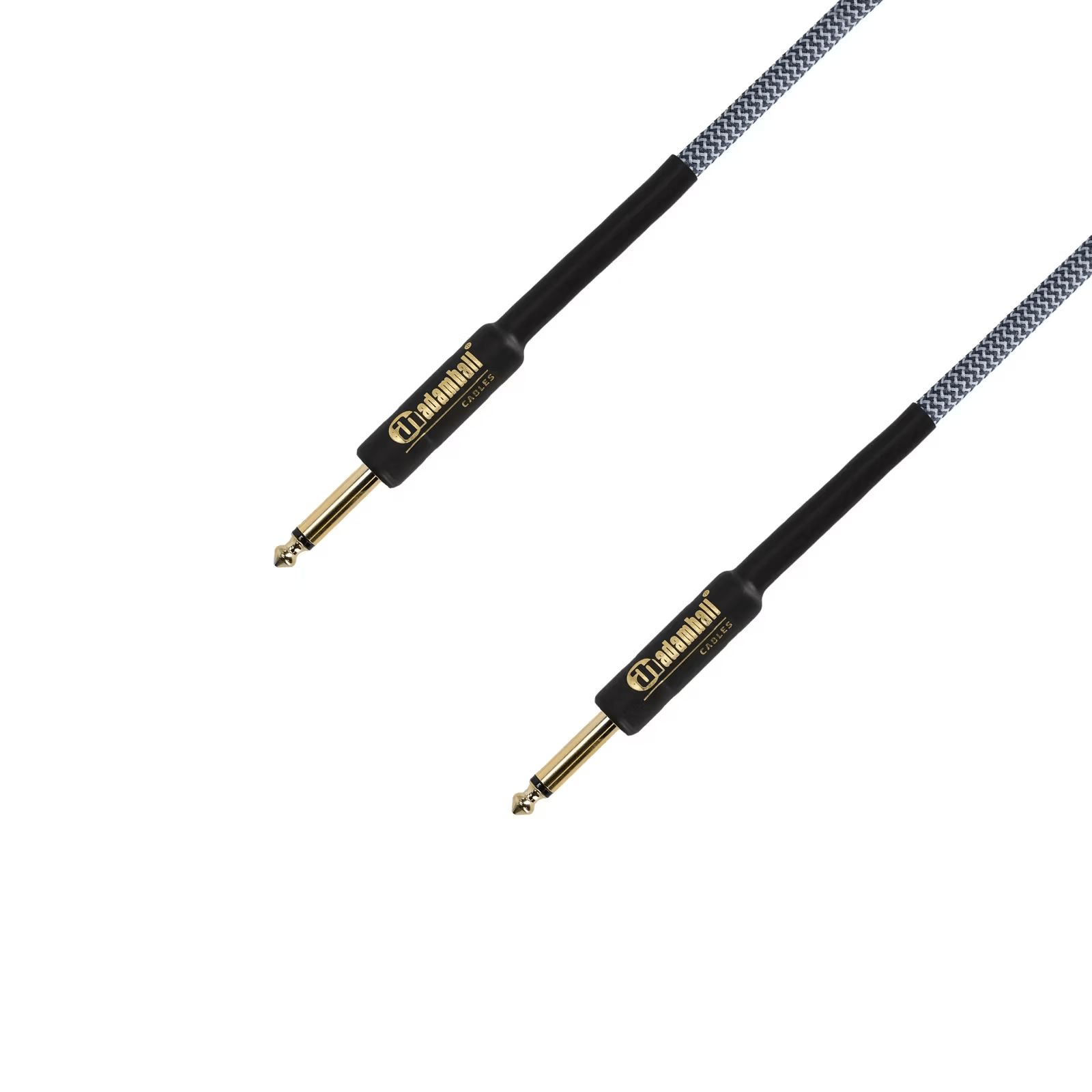

The instrument cables for tasteful users with a focus on performance and design are very popular. We attach great importance to high standards in development, especially for instrumentalists. That’s why the cables from our 4 STAR SERIES with straight plugs are now also available with a fabric jacket and high-quality inner conductor with 0.50 mm² for optimum transmission values.
A shrink sleeve is fitted over the TS jack connectors to provide stability and an attractive appearance. The cables also have gold-plated contacts, which guarantee a long service life and mating cycle. The gold plating is less abrasive than standard nickel or silver and on paper you get even better transmission values.
Specifications
General
Cable length
9 m

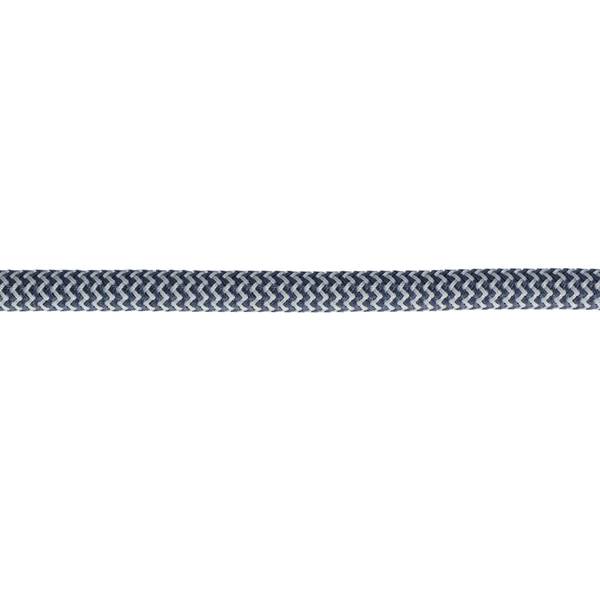

Cable jacket
PVC with braided sheathing
Cable diameter
6.5 mm
Cable colour
Blue
Plugs
Connector type plug 1
6.3 mm Jack TS
Contact material plug 1
Gold plated
Connector type plug 2
6.3 mm Jack TS
Contact material plug 2
Gold plated
Line
Conductor material
OFC (Oxygen-free copper)
Conductor diameter
1 x 0,50 mm²
Capacity/m
85 pF
Conductor impedance/km
90 Ohm
Shield
Spiral copper shielding
Environmental
Ambient temperature
-20 – 70 °C
Dimensions & weight
Weight
624 g
