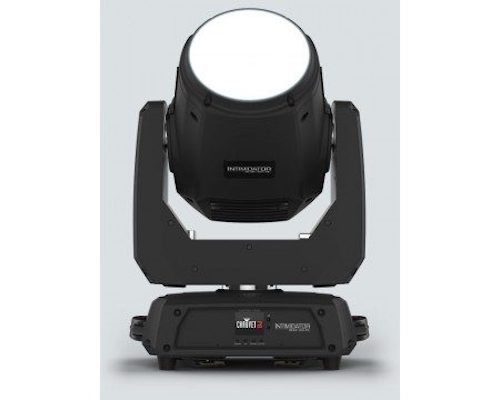

Intimidator Beam 355 IRC

Intimidator Beam 355 IRC is a powerful and feature-packed moving head beam fitted with a 100W LED. Easily generate complex looks using the fixed gobo wheel that includes a unique animation effect to create additional dramatic looks. A rotating 3-facet prism splits the beam to cover larger areas. The motorized frost filter converts the beam to a wash. The onboard full-color display is IRC-6 compatible and features totem mode and onboard memory for storing a scene. Intimidator Beam 355 IRC has powerCON®-compatible power input/output connections for power linking.

FEATURES

• Feature-packed moving head beam fitted with a 100W LED
• Motorized frost filter converts the beam to a wash
• Easily generate complex looks using the fixed gobo wheel plus animation effect
• Split the beam and cover larger areas with the rotating 3-facet prism
• Full-color display with IRC-6 compatibility, totem mode and onboard memory for storing a scene
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• powerCON®-compatible power input/output connections for power linking
• Fits best in the INTIMROADCASES35X flight case

SPECIFICATIONS

• DMX Channels: 8 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/270°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 5 + open, animation effect, continuous scroll at variable speeds
• Light Source: 1 LED (white) 100 W, (27 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.8 kHz [flicker free]
• Beam Angle: 3°
• Illuminance: 262,800 lux @ 2 m
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 163 W, 1.5 A @ 120 V, 60 Hz
  157 W, 0.8 A @ 230 V, 50 Hz
• Weight: 25.4 lb (11.6 kg)
• Size: 12.7 x 8.7 x 18.9 in (322 x 220 x 480 mm)
• Approvals: CE, MET
• Optional Controllers: IRC – 6
