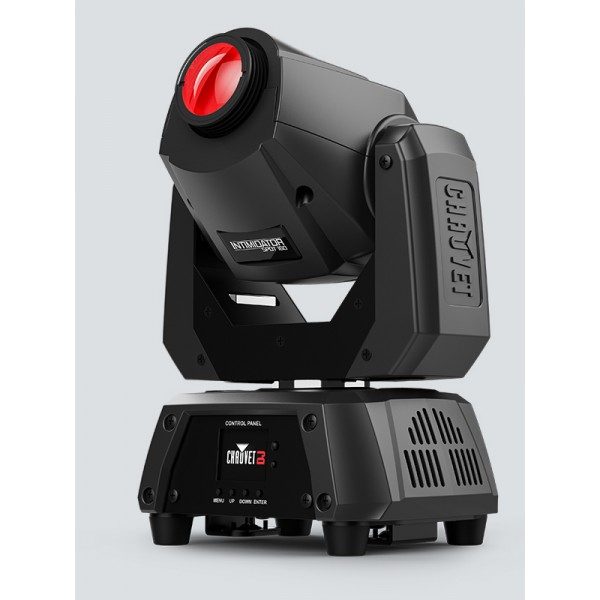

Intimidator Spot 160

Intimidator Spot 160 is the epitome of compact moving head power. This feature-packed moving head is designed for mobile performances with CHAUVET DJ’s innovative built-in Totem mode, keeping beams focused on the dance floor. One scene can be set, saved, and recalled manually from the full-color LCD display. A convenient ¼-turn hanging bracket allows for quick removal when needed, and up to 4 fixtures can be linked to create eye-catching, synchronized shows in Automated or Sound mode. Wireless non-DMX control is possible using the optional IRC-6 remote.

FEATURES

Feature-packed moving head designed for mobile performances
¼-turn hanging bracket allows for quick removal when needed
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-color LCD display
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
Convenient, wireless non-DMX control using the optional IRC-6 remote
Fits best in the CHS-1XX VIP Gear Bag

SPECIFICATIONS

DMX Channels: 5 or 11
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors: 9 + open, split colors, continuous scroll at variable speeds
Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds
Light Source: 1 LED (cool white) 32 W, (2.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
PWM Frequency: 2.4 kHz
Beam Angle: 17°
Illuminance: 6,080 lux @ 2 m
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 60 W, 0.8 A @ 120 V, 60 Hz60 W, 0.4 A @ 230 V, 50 Hz
Weight: 8.8 lb (4.0 kg)
Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
Approvals: CE
Bracket Mounting Hole:: M12
Optional Controllers:: IRC-6

WHAT’S INCLUDED

Intimidator Spot 160
Power cord
Hanging bracket
Quick Reference Guide
