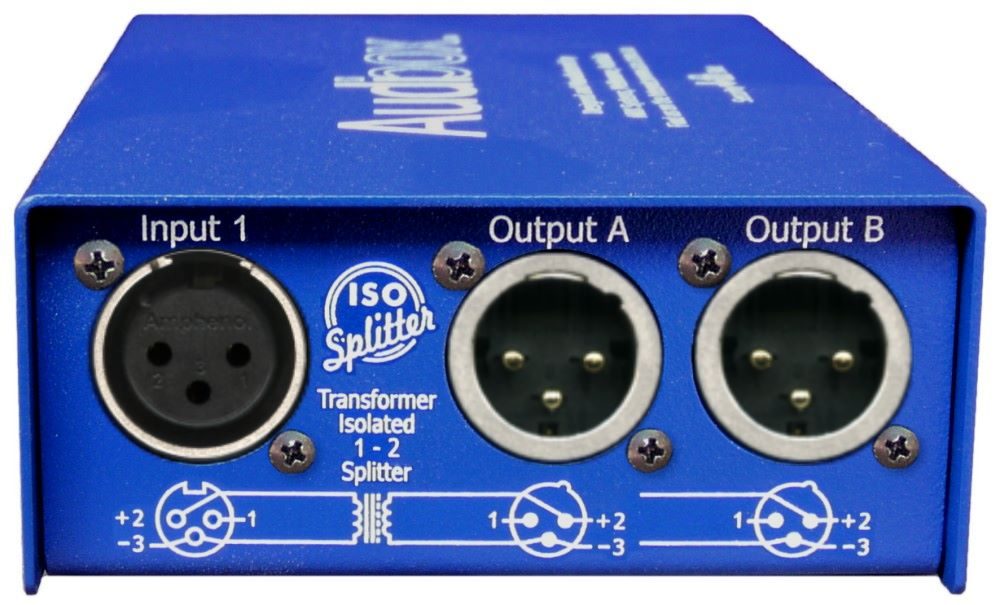

ISO Splitter Single Channel unit

A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording

Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.

Precision engineered Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units. Click on image at Right to see larger version

 Available in Single Channel or Double Header format

Output Impedance 2 secondaries @ 600 Ohms each

Frequency Response 20Hz – 20 KHz ± 0.1dB

Maximum Output Level + 20dBm

THD at Max Output 0.2% 30 Hz – 20KHz @ 20dBm

Insertion Loss 1.6dB @ 1 KHz (600 Ohm source & load)

Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold

Output Connectors 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected

Ground Reference Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1

Construction
All-steel chassis, fibreglass PCB, ultra low noise audio transformer
