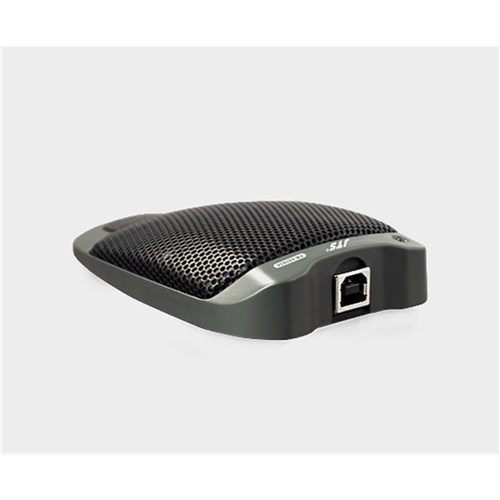

CM602 USB

CM-602 USB is an USB version of CM-602.

SPECIFICATIONS

Capsule Type

• Electret Condenser

USB Connector

• B type , Digital audio interface Indicator

Indicator

• USB (Mic OFF)….Green
• Mic ON……………Red

Switch

• Push control: ON/OFF

Sensitivity(at 1000Hz)

• -53 ± 3 dB * (2.23mV) 0dB = 1V / μbar

Max. SPL For 1% T.H.D.

• 125dB

Frequency Response

• 30~12,000 Hz

Directional Pattern

• Half-Cardioid

Power consumption

• 0.4W

Dimension (mm)

• 73mm(W)* 24mm(H)*110mm(L)

Weight

• 75g

DAC

• 32 , 44.1 , 48KHz

ADC

• 8 , 11.025 , 16 , 22.05 , 32 , 44.1 , 48KHz

Bit Depth

• 16-Bit

USB Type

• USB 1.1 / USB 2.0 / USB3.0
