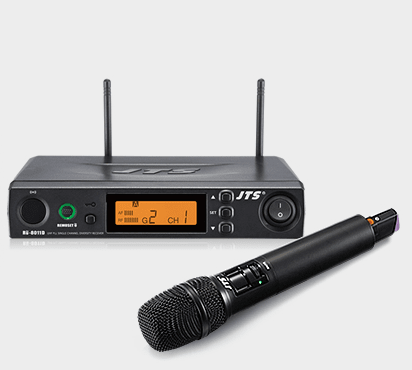

JTS D Series Wireless Handheld System

Base on the successful experience of US-8001D, the RU-8011D is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.   SPECIFICATIONS RU-8011D Frequency Preparation PLL Synthesized Control Carrier Frequency Range 470~960 MHz Frequency Setting REMOSET U Receiving Mode Antenna Diversity Bandwidth 36MHz S/N Ratio >105dB(A) T.H.D 80dB Rejection Ratio >80 dB Frequency Response 60Hz~15KHz±2dB Antenna Type Fixed Antenna Antenna Booster Power None Display LCD Display Contents Group, Channel, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan,Audio Level, Volume Controls Power ON/OFF, Group, Channel, Mute Display, Frequency Scan (ON/OFF), Key Lock,Volume, Output Attenuation (XLR) Audio Output Level Ref/ ±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack/ -10dBVXLR Jack/ -4dBV(Line) ˴ -24dBV(MIC) Audio Output Impedance 600Ω Squelch Pilot Tone & Noise Mute Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced. Power Supply DC12~15V/300mA Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D) Notes Acutal product specifications may vary depending on region RU-850TH Frequency Preparation PLL Synthesized Control Carrier Frequency Range 470~960MHz Frequency Setting REMOSET U(Receive) RF Outpus Low / High Stability <±10KHz@Fc Frequency Deviation ±48KHz Spurious Emissions <-50dBc Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery Display LED Controls Power, Mute Battery UM3, AA x2
