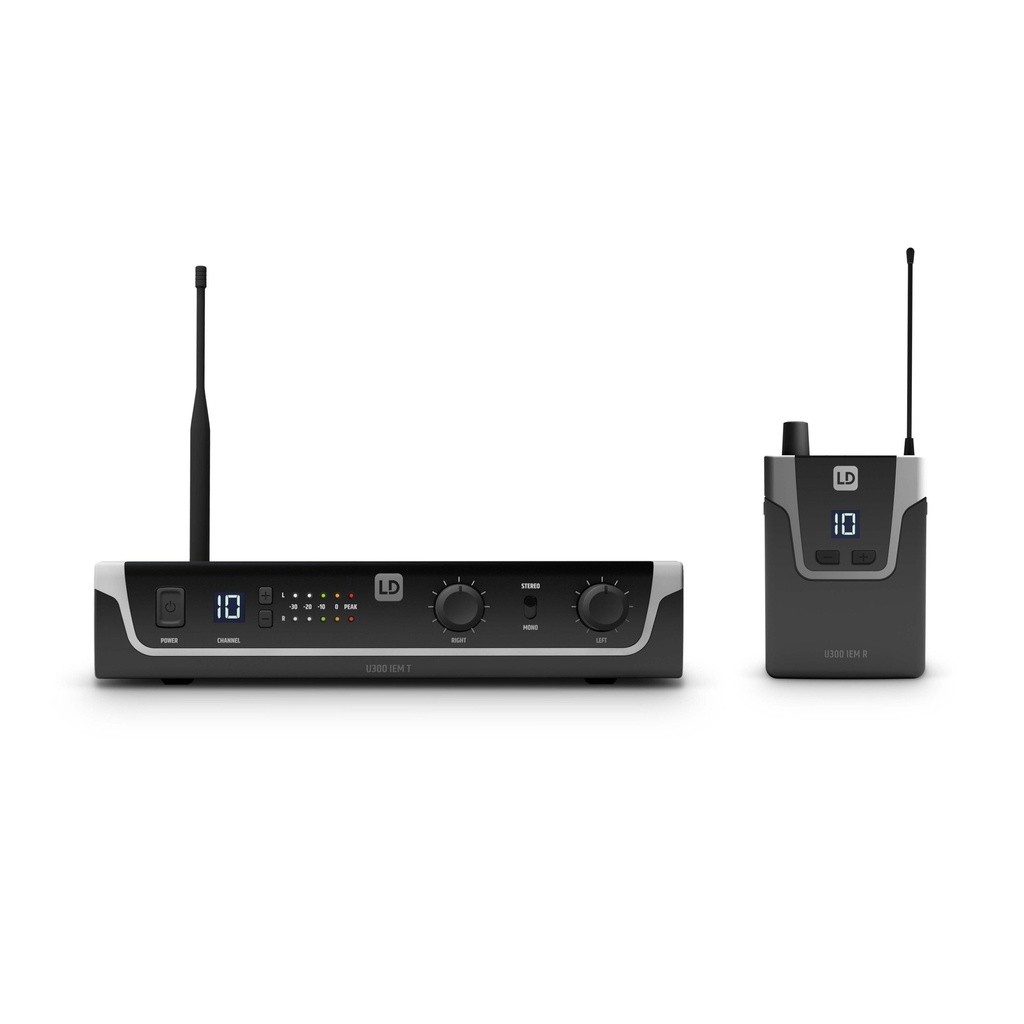

LD 306 In-Ear Monitoring System No Earphones – 655 – 679 MHz IEM Kit

Reliable wireless transmission with a range of up to 100 m

Low-reaching frequency response


12 selectable channels


Choice of stereo or mono mode


Up to 6 systems can be used simultaneously


10-hour bodypack operating time with two AA batteries


Unlimited number of bodypacks can be set to the same transmission frequency


Channel and RF reception displayed on bodypack


Transmitter in rugged metal casing with stereo level display


Removable antenna with BNC connection


19” rack assembly kit included.


Earphones Not included


Description

We have developed the wireless U300® in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 655 MHz – 679 MHz,  Six systems can be used simultaneously in each case.
The U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.
The U300® bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19″ rack assembly kit included.

Specifications

Product type
In-ear Monitoring

Type
Set

Transmission frequency range
655 – 679 MHz

Weight
1,51 kg

LDU306IEMT – LD Systems U306 IEM HP Transmitter

Product type
In-ear Monitoring Accessories

Type
Transmitters

Channels
12

Frequency response
50 – 16.000 Hz

Modes of operation
mono/stereo

Transmission method
FM, mono/stereo

Rated HF output power
10 mW

Total Harmonic Distortion (THD)
<0,5%

Signal-to-noise ratio
90 dB

Dynamic range
88 dB

Antenna connector
BNC

Inputs
2

Controls
Power On/Off

Input connectors
XLR

Indicators
LC display

Weight
0,66 kg

Input impedance (kOhms)
8.5 kOhm

Input sensitivity
-4.5 dbu

Operating voltage
12 – 18 V DC

Width
212 mm

Height
43 mm

Depth
123 mm

Power consumption
1.7 W

Accessories (included)
Power supply

LDU306IEMR – LD Systems U306 IEM HP Receiver

Type
Receivers

Total Harmonic Distortion (THD)
0.25 %

Audio output
3.5 mm TRS

Minimum connected impedance
16 Ohm(s)

Max. audio output level
73 (@ 33 Ohms load capacity) mW

Antenna connector
Fixed to housing

Controls
volume control

Indicators
RF (LED)

Weight
0,085 kg

Operating voltage
2 x 1.5 V AA

Operating time
< 10 Std.

Width
64 mm

Height
103 mm

Depth
24 mm

Features
incl. batteries

Item No.: LDU306IEMHP
