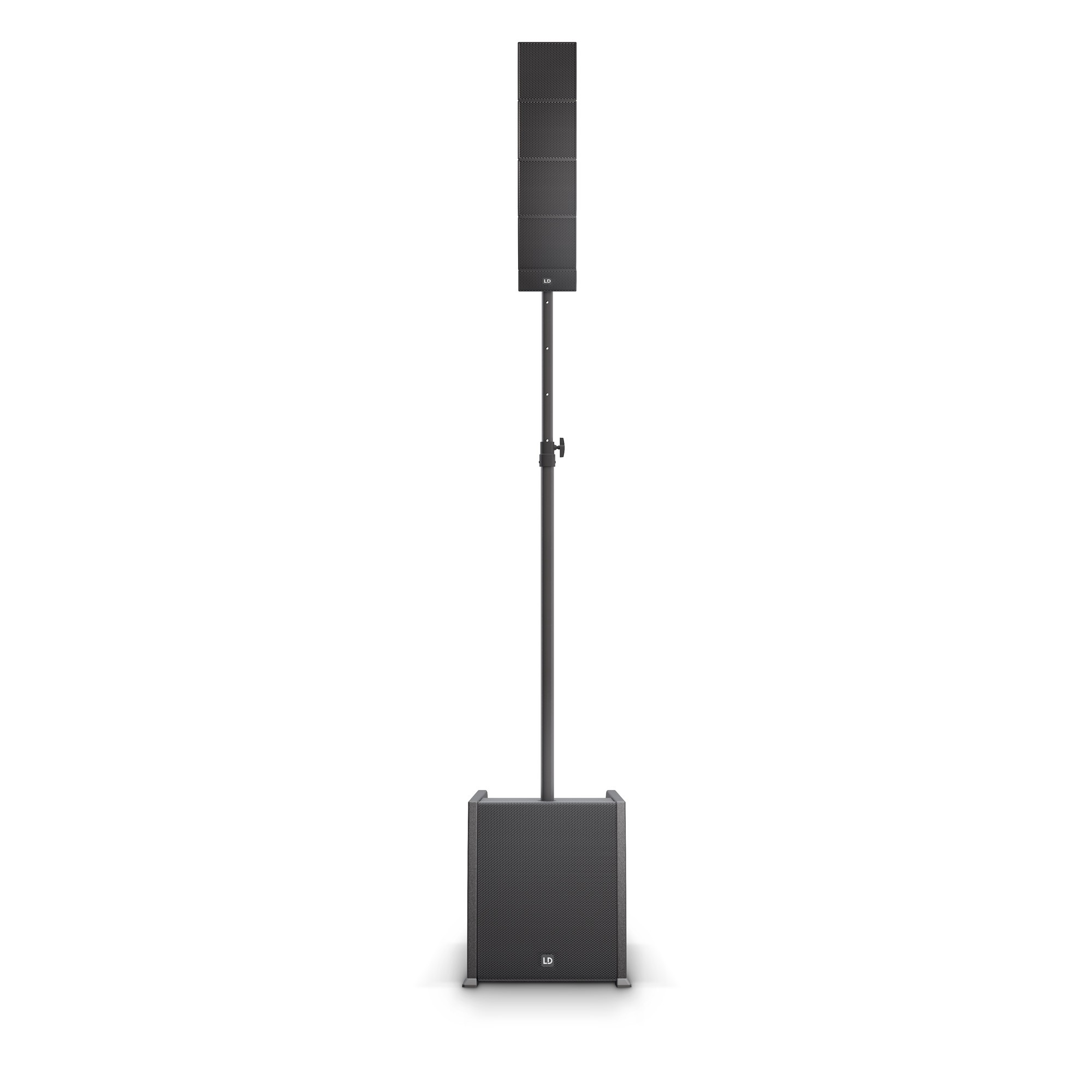

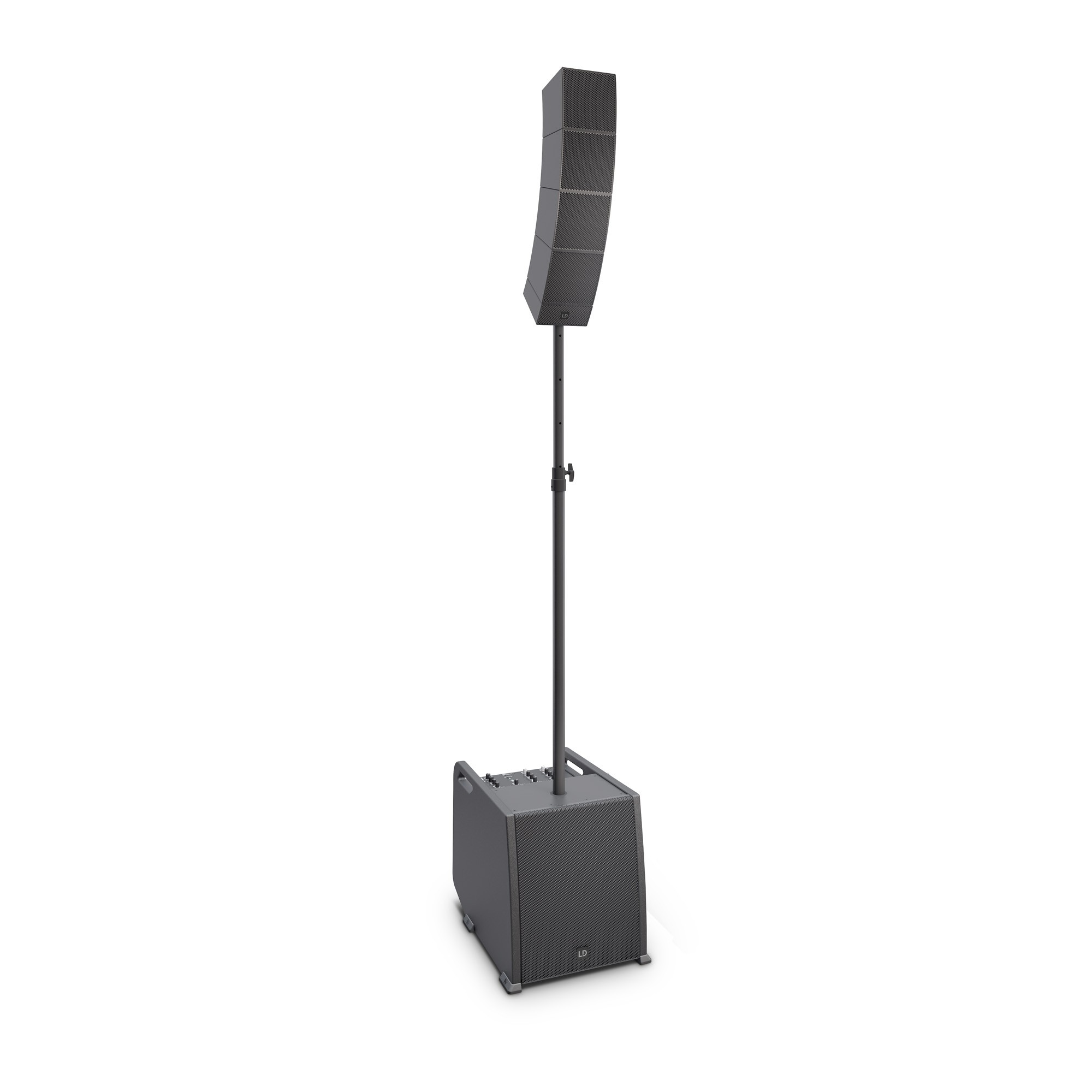

LD Systems CURV 500 ES – Entertainer Portable Array System

Overview
The LD Systems CURV 500 ES (Entertainer Set) is a complete portable PA system that combines compact size with impressive power and clarity. Using LD’s innovative CURV SmartLink® system and TrueArray® technology, it delivers wide coverage, excellent speech intelligibility, and a smooth, controlled sound ideal for music, presentations, and mobile performers.

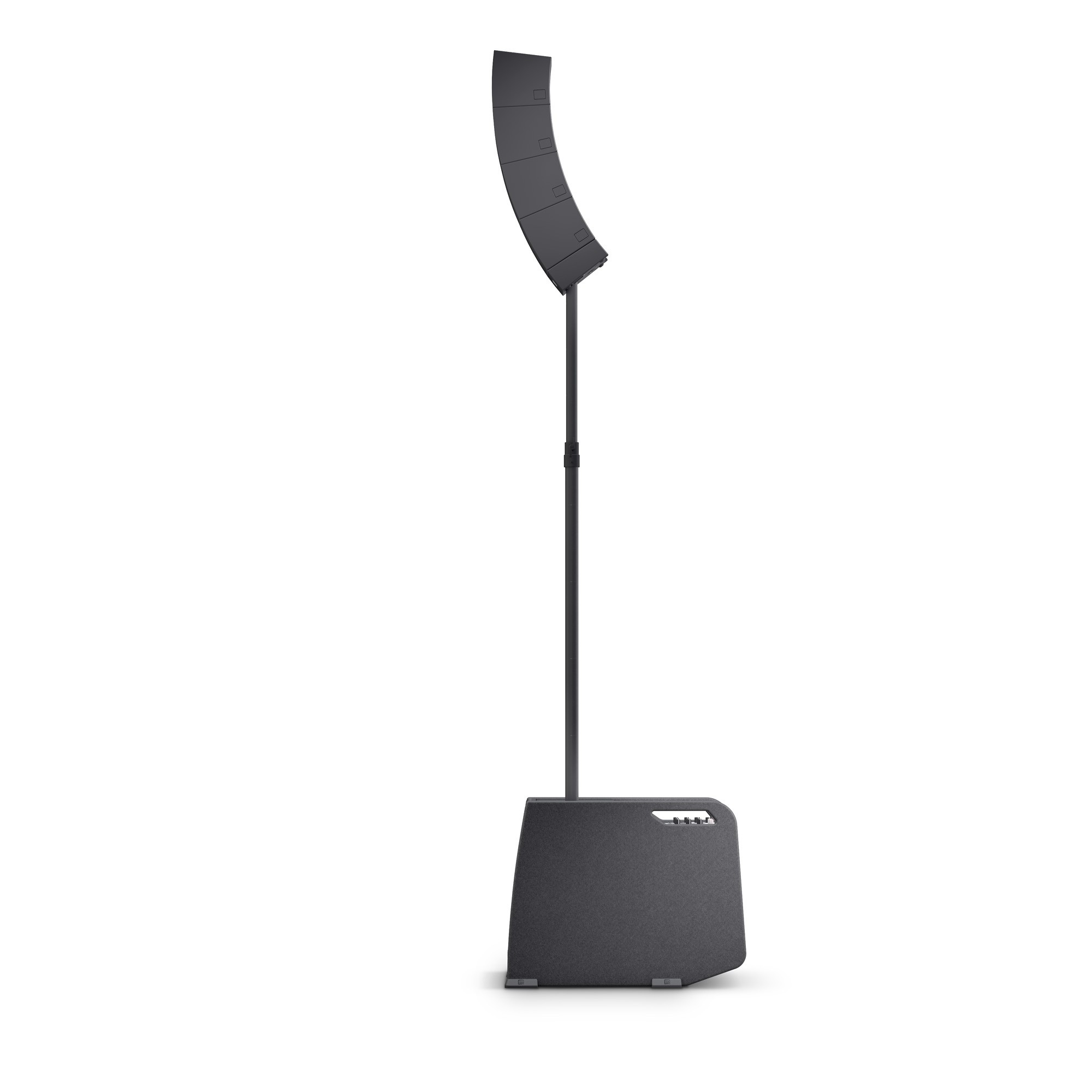

Setup is fast and tool-free — simply mount the satellites onto the SmartLink® adapter and you’re ready to go. The CURV 500 Entertainer Set provides the perfect balance of portability and performance for:

Solo musicians & duos

Small bands

DJs

Corporate events

Weddings

Fitness instructors

Schools & presentations

This lightweight system is easy to transport, quick to set up, and powerful enough to cover small to medium sized rooms.

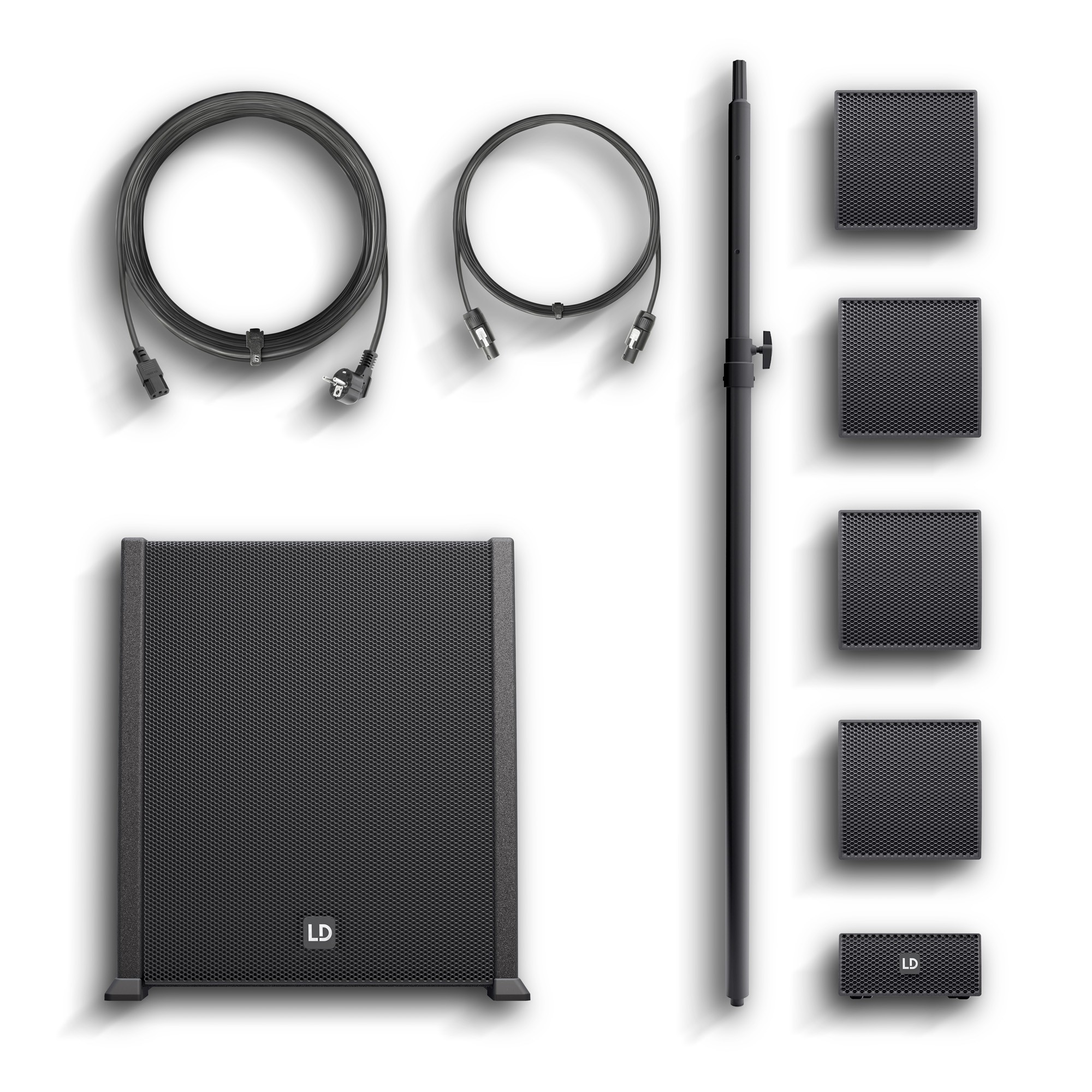

What’s Included

1 × 10″ Bass Reflex Subwoofer with Class-D power amp

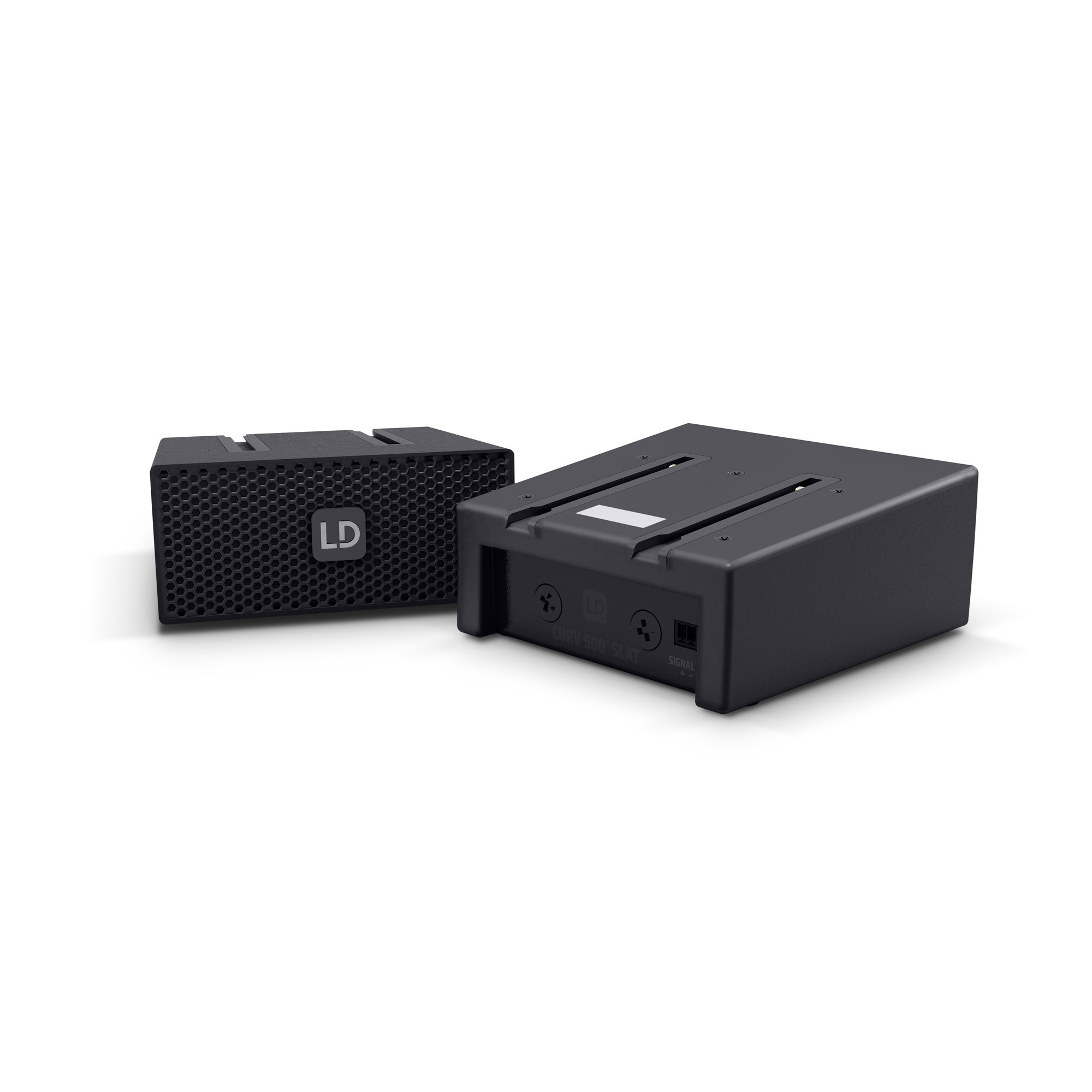

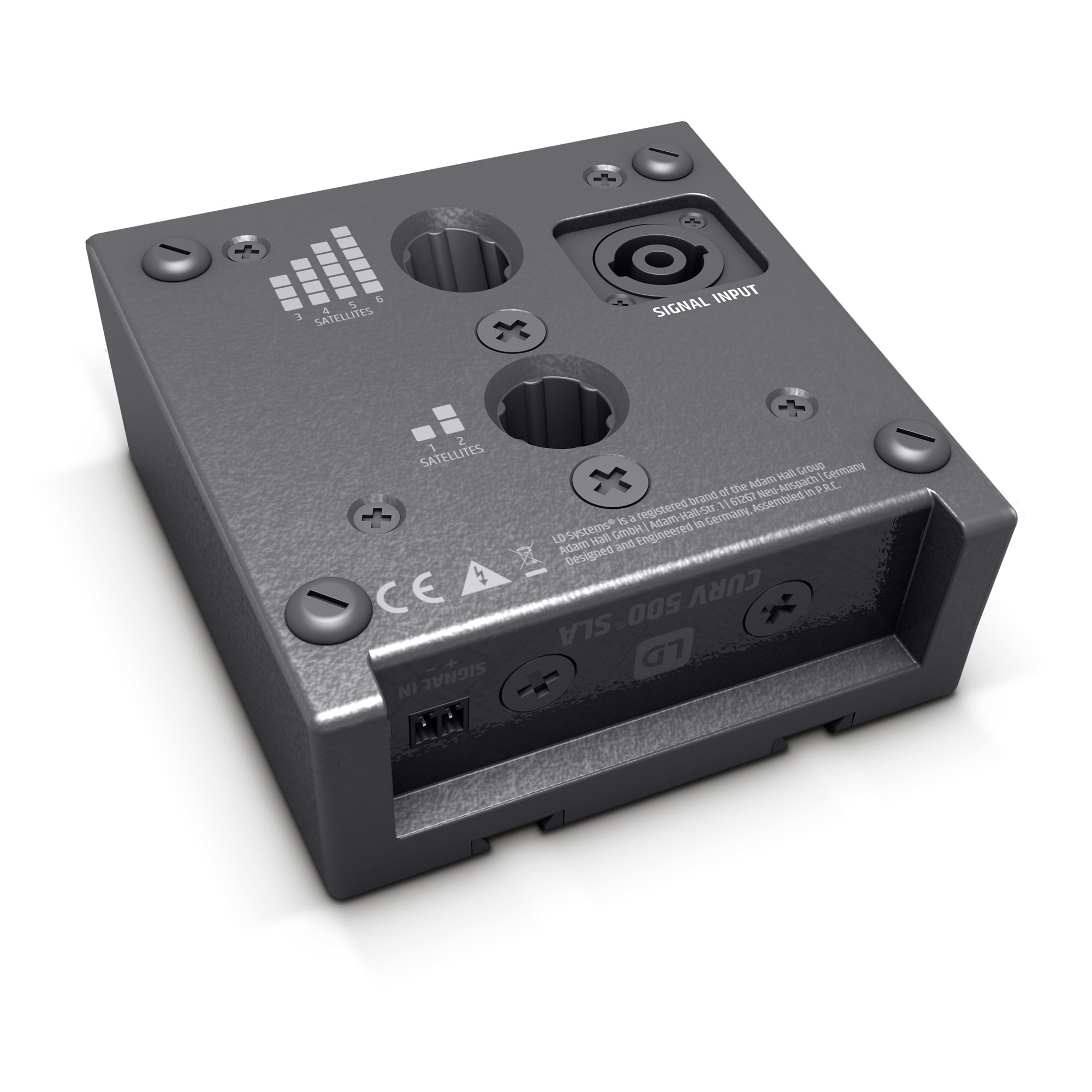

1 × SmartLink® Adapter

2 × CURV 500 Satellite Line Array Modules

1 × Speaker stand

Cabling & accessories

Key Features

SmartLink® System – Quick and secure satellite mounting

TrueArray® Technology for clear, wide and even coverage

Compact dual-satellite column – ideal for speech & acoustic music

10″ powered subwoofer with integrated amplifier and DSP

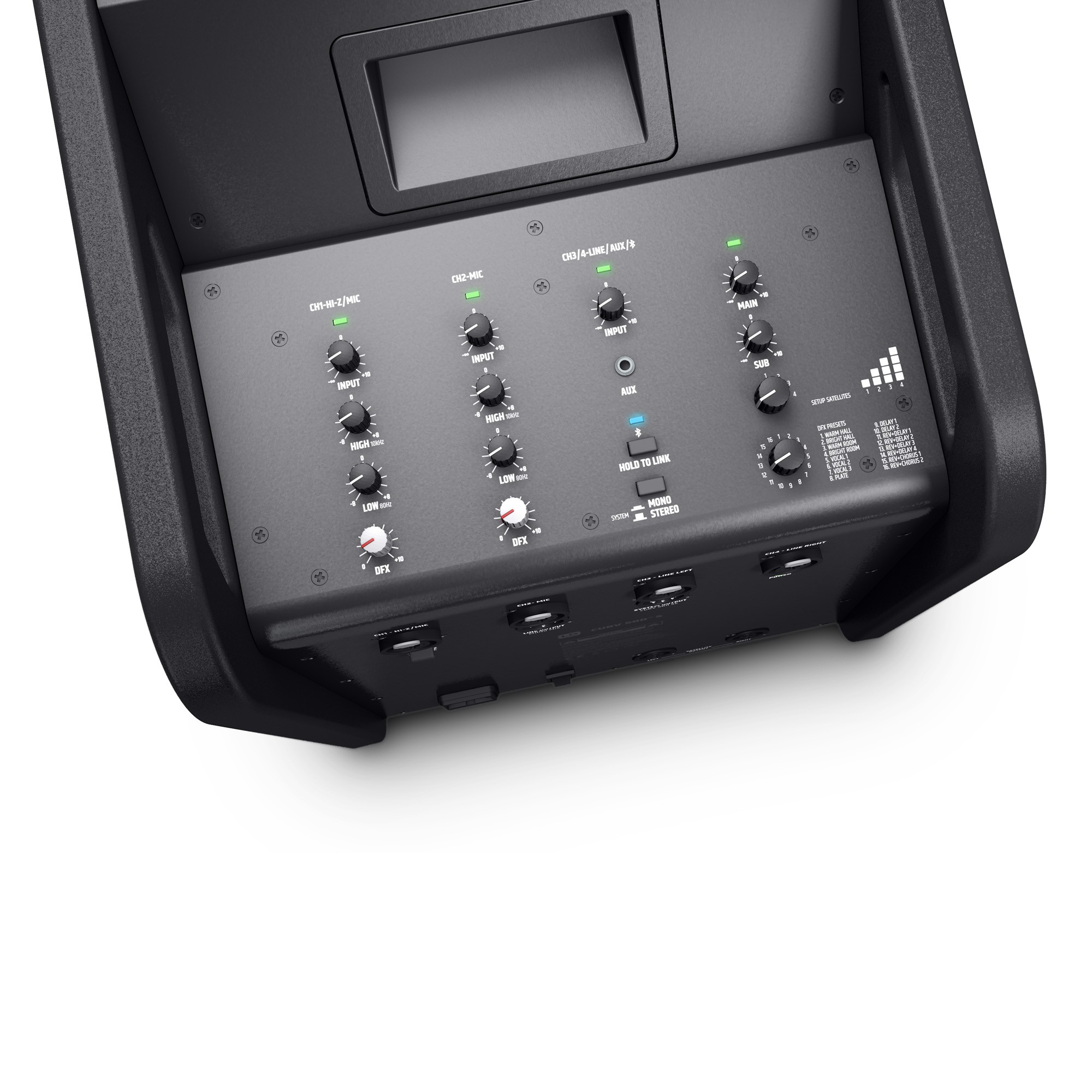

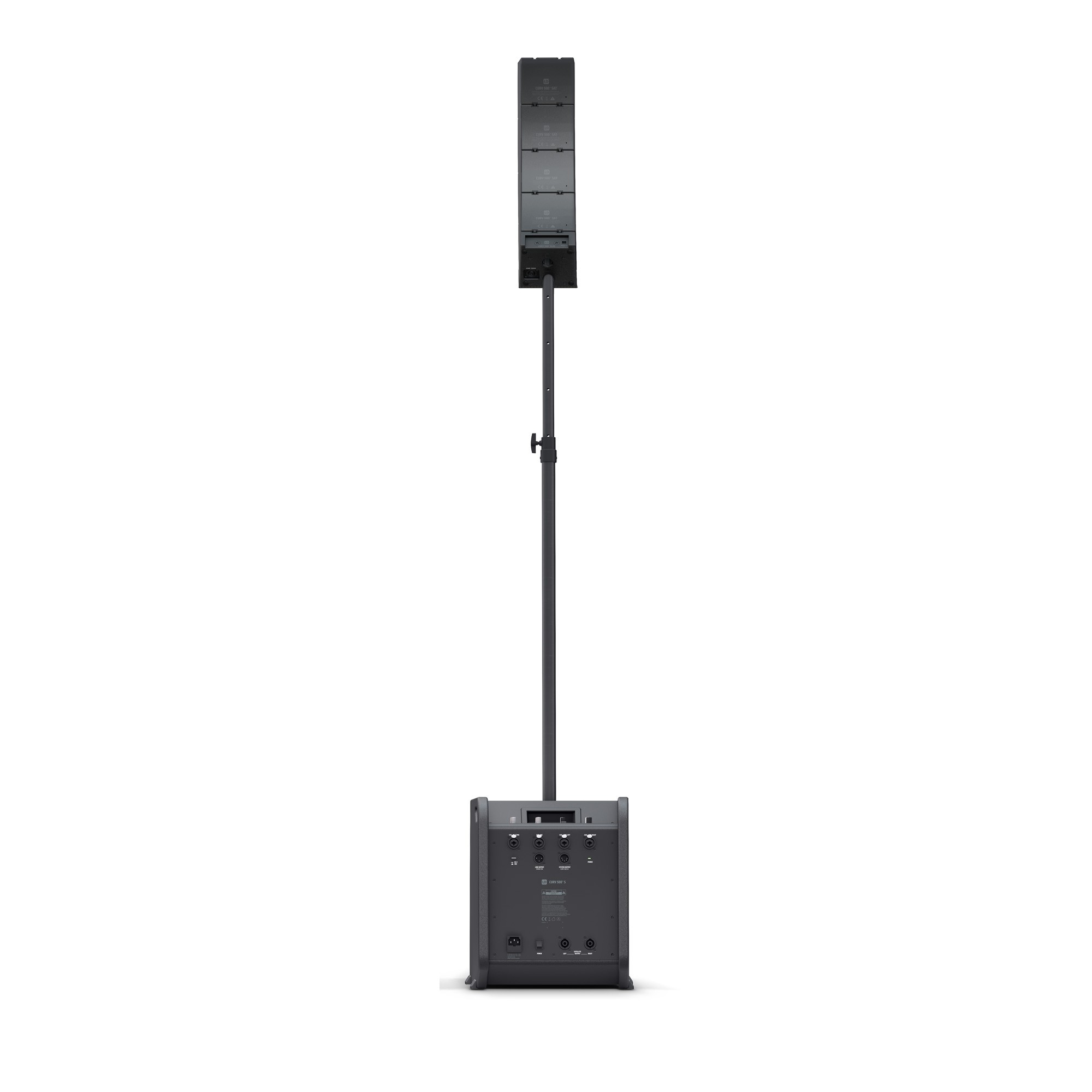

4-channel mixer with:

Mic/Line input

Hi-Z input for guitars

Bluetooth® audio streaming

EQ & effects presets

Expandable – Add more satellites or an extra set for more output

High-efficiency Class-D amplifier

Lightweight and easily portable

Performance
Even with its compact footprint, the CURV 500 ES produces clean highs, natural vocals and strong, controlled low-end. Its wide horizontal coverage makes it ideal for venues where uniform sound distribution is critical.

Technical Specifications
System

Max SPL: approx. 122 dB

Frequency Response: 47 Hz – 20 kHz

Total Power: 460 W RMS

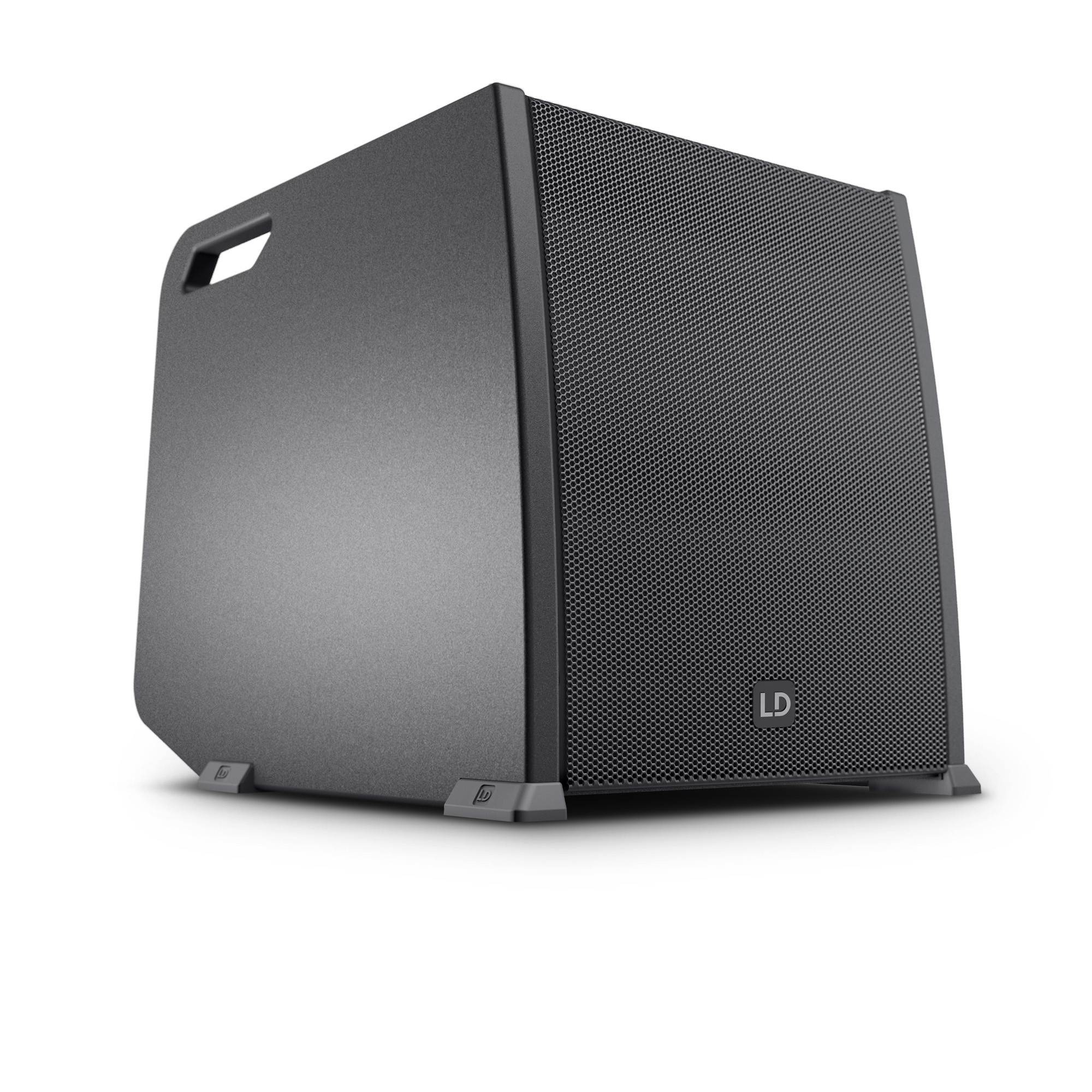

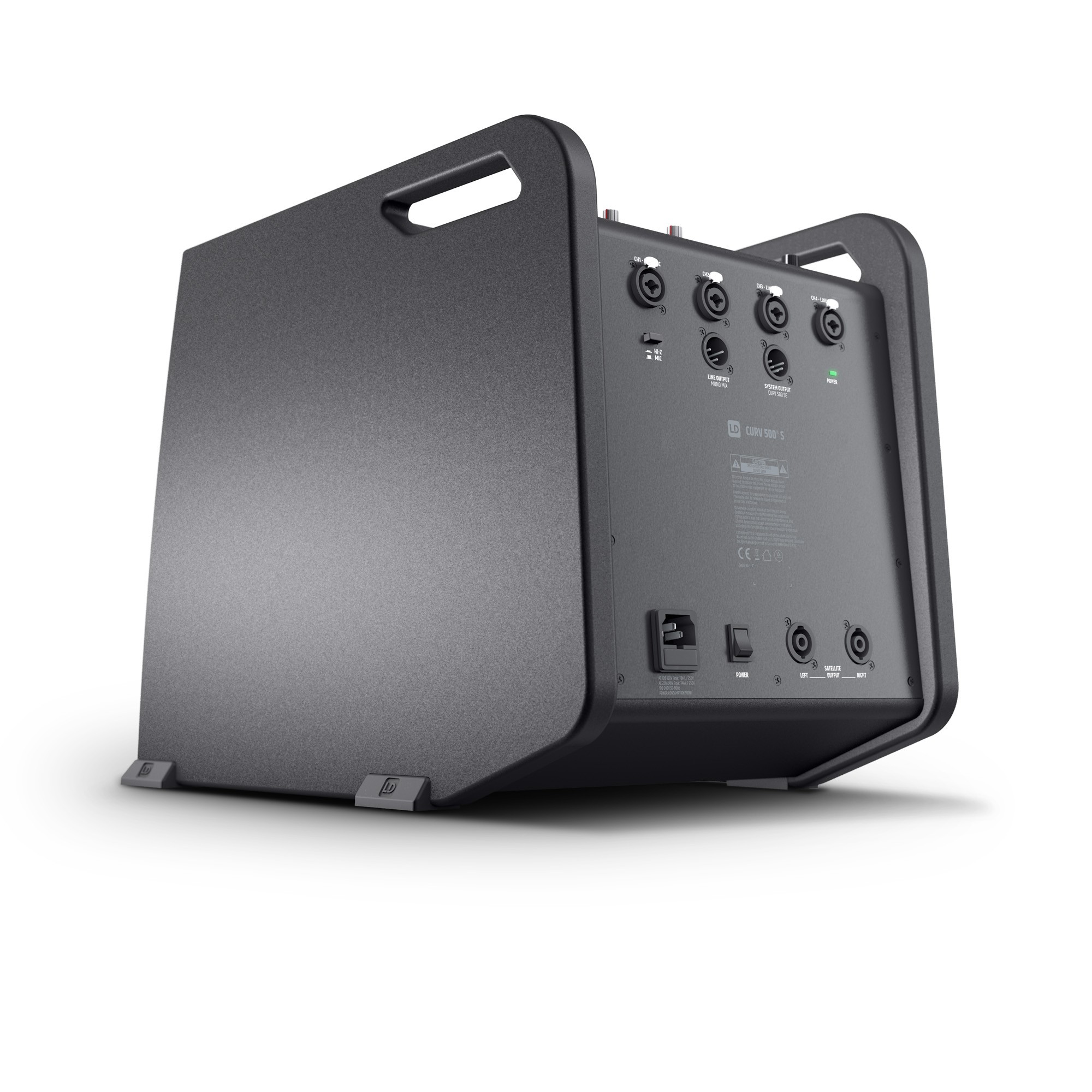

Subwoofer

Driver: 10″

Power: 300 W RMS

Inputs: Mic/Line, Hi-Z, Bluetooth, Stereo Line

DSP Presets: Music / Speech / DJ / Monitor

Construction: 15 mm plywood, durable black finish

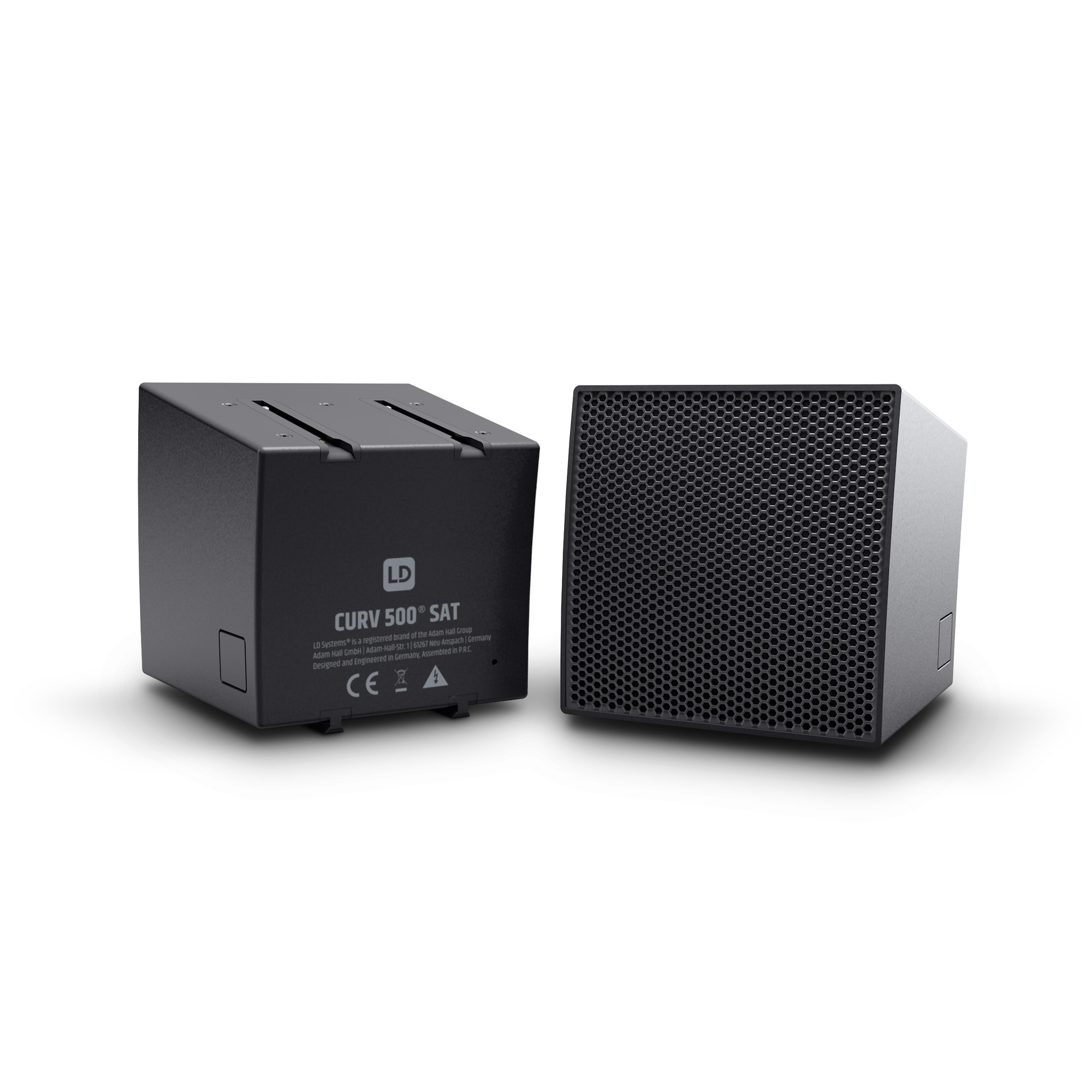

Satellites

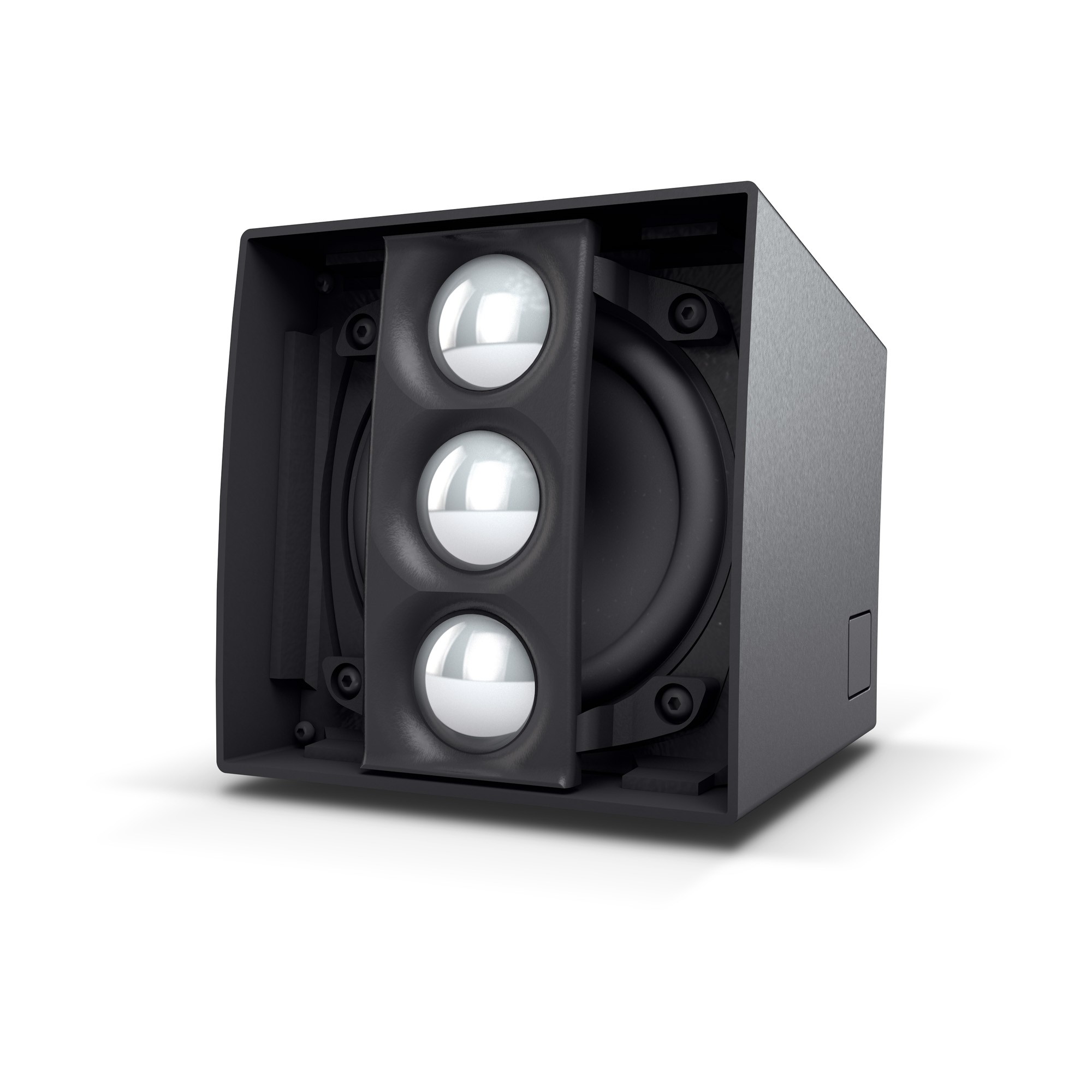

Drivers: 1 × 4″ mid + 3 × 1″ HF drivers (TrueArray®)

Mounting: SmartLink®

Dispersion: 110° horizontal

Dimensions & Weight

Subwoofer: approx. 429 × 383 × 383 mm

Satellites: approx. 122 × 122 × 122 mm each

Total Weight: approx. 16.5 kg (set)
