For the LD Roadbuddy System

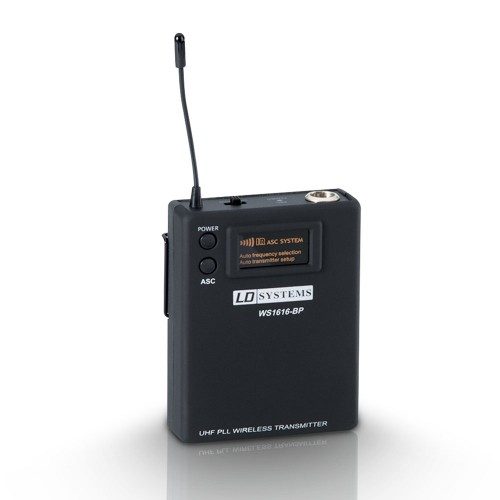

The LD Systems WS1616 BP-B6 is a professional bodypack accessory for the compatible Road series portable PA systems. Allowing you to connect a variety of microphone attachments such as headset, or lapel via the mini 3-pin XLR plug. Featuring 16 tunable frequency presets for stepping around, and 10mW output providing up to 50m LOS range, and a . The bodypack uses a 2 step sync to prevent unwanted disconnection and has a selectable output level from mic/0 db/-10 dB for various applications. Plus the 10hr run time from 2x AA batteries makes it ideal for any presentation or public addressing application.
– Belt Pack for Guitar, Lavalier Microphone and Headset with 3-pin Mini XLR connector
– Easy handling and setting of the 16 channels
– Separately adjustable high-impedance Guitar level and two Microphone levels for optimal adaptation
– Low-battery indicator
– Approx. 12 hours of operating time with 2 AA batteries
– Metal clip for professional fastening to belt, pocket, etc.
Specifications
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
655 – 679MHz
Channels
16
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 – 16.000Hz
Rated HF output power
10
Controls
Power, Mic / 0dB / -10 dB switch, ASC
Indicators
power/battery status low (LED)
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65mm
Height
85mm
Depth
24mm
Weight
0.1kg
Other features
incl. batteries, IR frequency synchronisation
