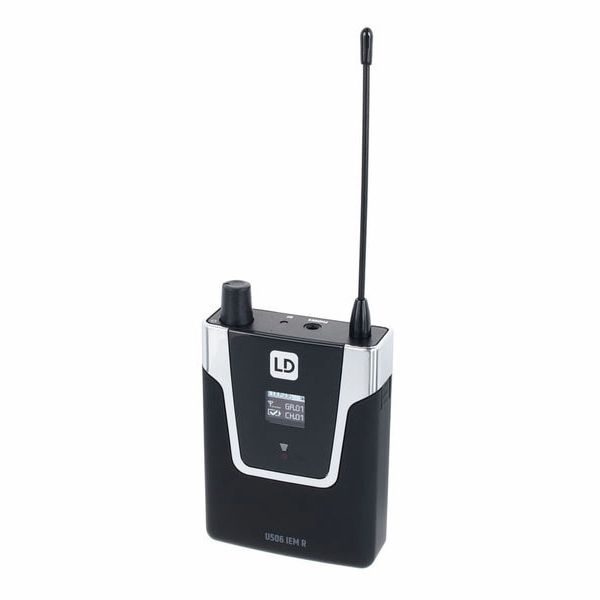

LD Systems U506 IEM Receiver Only

Reliable in-ear monitoring with more than 100 m range
96 available channels
2, 10 or 30 mW ERP selectable transmission power
Convenient infrared frequency syncing
Individual user name assignment and memory for 10 custom presets
Extended frequency response
3-band EQ with parametric mids
Switchable limiter
Stereo and mono modes of operation
High-contrast OLED display
Transmitter with direct monitoring headphone output
Bodypack receiver with three selectable squelch levels
10 h of bodypack receiver operation on two AA batteries
U500® IEM transmitter compatible with U300® IEM bodypacks

General

Product type
In-ear Monitoring Accessories

Type
Receivers

Transmission frequency range
655 – 679 MHz

Channels
12

Transmission method
FM, mono/stereo

Frequency response
40 – 16000 Hz

Audio output
3.5 mm TRS

Max. audio output level
33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW

Antenna connector
Fixed to housing

Controls
Down, On / Off, Up, volume

Indicators
Multifunctional OLED-Display, RF (LED)

Operating voltage
2 x 1.5 V AA

Operating time
< 10 hours

Width
64 mm

Height
100 mm

Depth
24 mm

Weight
0,095 kg

Accessories (included)
2 x AA batteries, Antenna

Features
battery status LED

Description

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.
Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
