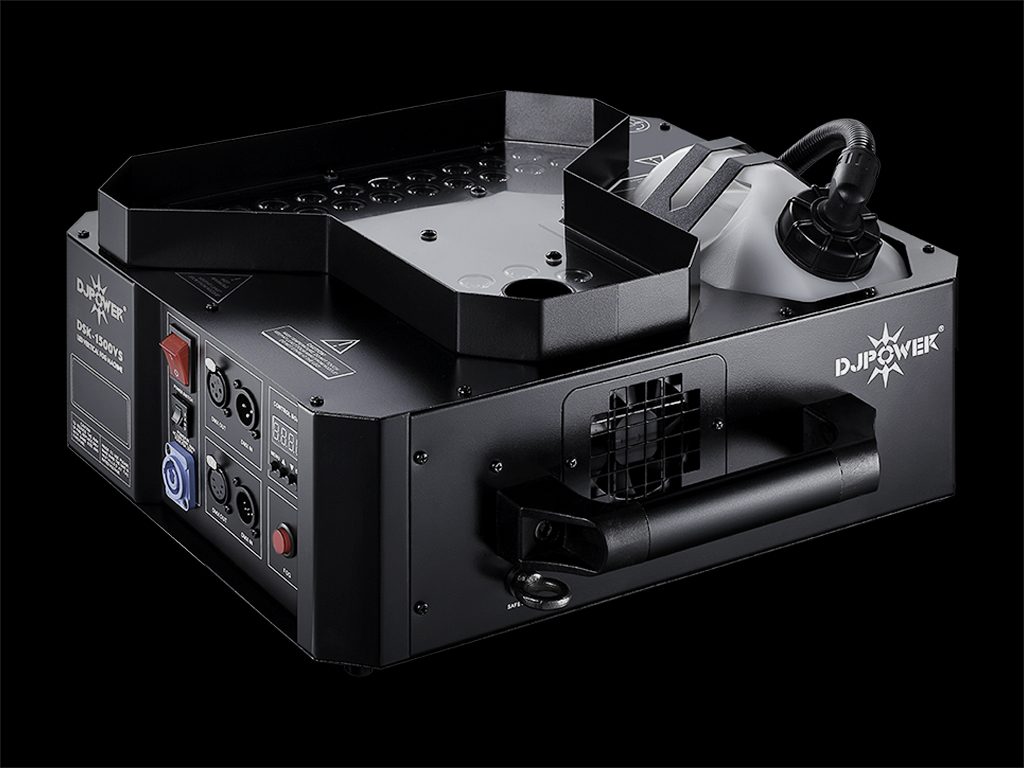

LED Vertical Fog Machine DJ Power

As DJPOWER’s updated version of classicalvertical fog machine, DSK-1500VS produces brighter and higher fog. Newtechnology of “Inner Flame Color Changing” shows the amazing two colors of jet!It blasts a vertical stream of safe, water-based fog while simultaneouslyilluminating it with 32 high-power (3w) LEDs. A combination of red, green, andblue LEDs allows you to easily mix the perfect color to 6-8 meters high. Moreimportantly, with DJPOWER’s unique “Immediate-Stop” patentedtechnology, it jets and stops synchronously and consistently. With newest”Anti-Squirting Plus” technology, it is safer no matter hung orplaced on the floor.
Features

New “Inner Flame Color Changing” technology shows amazing two colors of jet!
32pcs 3W RGB LEDs produces colorful fog effect;
Various placing ways, can be placed horizontally or on its side, or hung up-side-down.
Immediate-Stop patented technology;
Advanced “Anti-Squirting Plus” technology, greatly reduced the probability of squirting water;
Advanced No-Fluid protection;
Anti-loose power plug;
Unique Temperature Control System;
Heating system adopts MIRROR patented technology (MIRRIOR Pipe) to prevent being clogged;
Output button for standby application;
Digital display control, Wireless control, and 3-pin, 5-pin DMX control
Please use DJPOWER professional thin fog fluid PRO-V.

Specifications

AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption: 1,500 W
Operating Current: 6.5 A
Power Input Connector: Lockable PowerCon

HEATING

Heat Up Time: Appr. 4.0 min
Heater Type: Aluminum Heater Block

LIGHT SOURCE

LED Color: RGB
LED Type: Single Color
Power per LED: 3 W
Quantity of LED: 32 pcs
Quantity of RED: 11 pcs
Quantity of GREEN: 10 pcs
Quantity of BLUE: 11 pcs
Total Power of LED: 96 W
Quantity of Inner RED: 3 pcs
Quantity of Inner GREEN: 3 pcs
Quantity of Inner BLUE: 3 pcs
Quantity of Inner LED: 9 pcs
Total Power of Inner LED: 27 W
Quantity of Outer RED: 8 pc
Quantity of Outer GREEN: 7 pc
Quantity of Outer BLUE: 8 pcs
Quantity of Outer LED: 23 pcs
Total Power of Outer LED: 69 W

CAPACITY

Fluid Tank Capacity : 2.5 L

OUTPUT

Adjustable Volume: ×
Max Output Volume: Appr. 32,000 cuft/min
Max Output Height: Appr. 6.0~8.0 m
Fluid Consumption @ full volume : Appr. 6.3 min/L
Maximum Continuous Duration @ full volume: Appr. 7 sec
Continuous Output : ×
Fuuly-loaded Cumulative Output Duration @ full volume: Appr. 15 min
Consumable Type for Standard Output Test: PRO-V

FEATURES

Physical Thermostat: √
Electronic Thermo-Control: √
Adjustable Output : ×
No-Fluid Protection: √
Instant-Stop: √
Supper-Jet: ×
Inner Flame Color Changing (IFCC): √

CONTROL

On-device Manual Control : 7-seg digital display & Physical manual trigger
Wireless Control: W-5 /RF 433MHz /Built-in
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 11
Data Connectors: 3- and 5-pin XLR

ACCESSORY

Power Cord: √
Wireless Controller Model: W-5 / RF 433MHz / Transmitter

CONSUMABLE

Consumable: PRO-V

WEIGHT & DIMENSIONS

Net Weight: 10 kg / 22 lb.
Gross Weight: 11 kg / 24.3 lb.
Machine Dimensions: 417 × 382 × 205 mm / 16.4 × 15 × 8.1 in.
Packing Dimensions: 495 × 455 × 260 mm / 19.5 × 17.9 × 10.2 in.
