Level One 8-Port Gigabit PoE Switch 802.3at/af PoE 8 PoE Outputs 120W

Key Features









IEEE 802.3af/at PoE compliant to simplify deployment and installation







10/100/1000Mbps wire speed transmission and reception







Auto-detection and protection of non-standard PoE devices







IEEE 802.3x Flow Control protects against lost packets for reliable data transmission







Total PoE power budget: 120W, up to 30W per port







Package Contents









GEP-0823







Quick Installation Guide







Power adapter with power cord

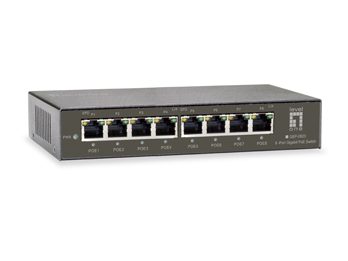

The LevelOne GEP-0823 is an 8-port Gigabit Ethernet PoE switch that provides Power over Ethernet on all eight of its ports. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 120W. It is the ideal solution when office and home users are using a combination of PoE and non-PoE devices.
The GEP-0823’s eight PoE-enabled ports make it an ideal solution for office users who use PoE-enabled devices and already want to power a larger number of PoE devices. These products can be a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade their existing PoE infrastructure to Gigabit speed. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
The GEP-0823 also enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockade-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This switch also supports the N-Way auto negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0823 is equipped with a complete set of LEDs to help monitor and troubleshoot the network.

System Specifications







Standards:


IEEE 802.3 10-BASE-T, EthernetIEEE 802.3u 100-BASE-TX, Fast EthernetIEEE 802.3ab 1000BASE-T, Gigabit EthernetIEEE 802.3x Full-duplex Flow ControlIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.23az (Energy-Efficient Ethernet )





Memory:


1Mb





Buffer Memory:


1M





Port:


8 x 10/100/1000Base-TX RJ45 PoE port





Indicator:


Power, Active, 10/100/1000M





Pin Assignment and Polarity:


1/2(+), 3/6(-) Mode A4/5(+), 7/8(-) Mode B (Optional)





Transmission Method:


Store-and-Forward





Power Input:


52VDC @ 2.5A 130W





Power Output:


<120W





Power Consumption:


<10W





Backplane (Gbps):


16G





MAC Address Table:


8K





Data Rate:


10/100/1000Mbps





Operating Temperature (°C):


-20~70ºC





Operating Humidity (Non-condensing):


5%~90%





Storage Temperature (°C):


-20~75ºC





Storage Humidity (Non-condensing):


5%~90%







Features







PoE:


Power Budget: Max. 120WPoE Standard: IEEE 802.3af/at Power over Ethernet / PSEPD classification identityPoE over current protectionPoE circuit sorting protectionPoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE802.3af) or 30 watts (IEEE 802.3at)







Performance







Jumbo Frame (K):


9126 bytes







Physical Specifications







Dimensions (W x D x H mm):


170.50mm × 80.50mm × 30.00mm





Weight (g):


900







Reliability







MTBF:


30,000 hours







Approval and Compliance







EMI/EMS:


CE,FCC
