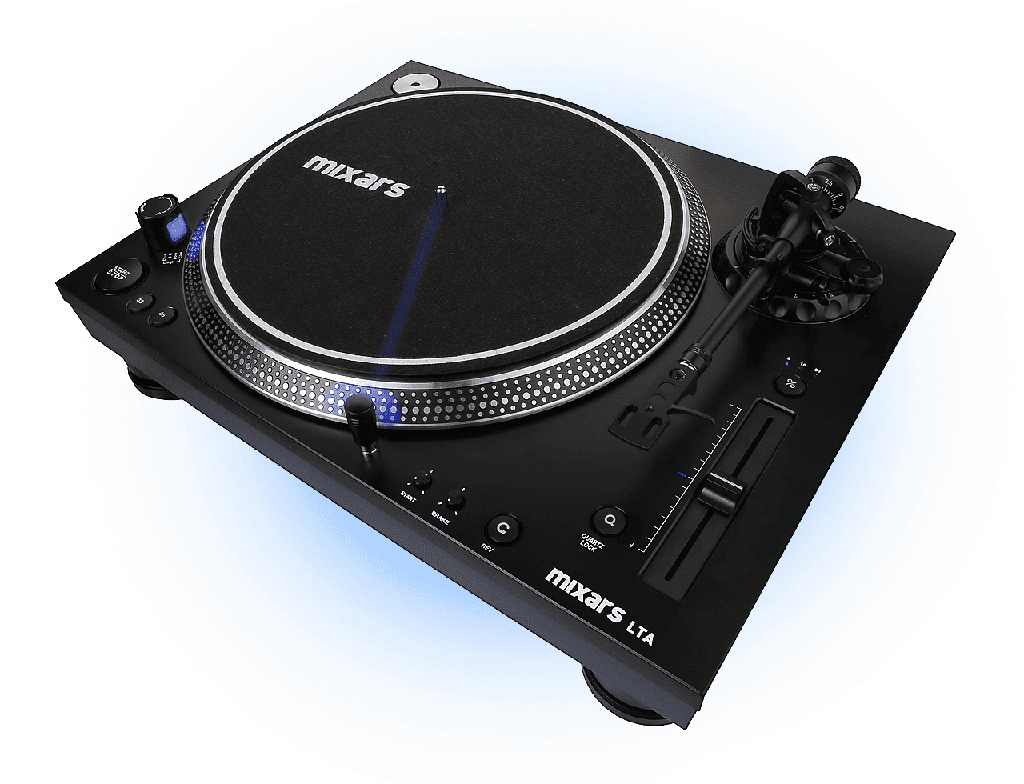

LTA
Key Feautures
Its quartz-controlled direct-drive motor delivers perfect speed accuracy when playing back records, and its 4.5KG motor provides the ideal feel for scratching. The high-resolution pitch (+/- 8%, +/- 16% and +/- 50 %) provided allows for a precise mix and perfect matching.
The exclusive feature of 2 RCA outputs allows to connect one turntable into 2 mixers at the same time for easy scratch battle set up and more.
MAIN features
• Direct Drive Turntable
• Straight arm for Skip less
performance
• Motor: 16-pole, 3-phase,
brushless
• DC motor Direct drive
• Speeds: 33-1/3 RPM, 45
RPM / 332 mm dia.
• die-cast aluminum Platter
• Starting Torque >4.5 kgf.cm
• 2 Output Rcs Phono and
Line
• Start and Stop Adjustable
• Pitch variation Adjustable
LTA // TECHNICAL details
1. TURNTABLE SECTION:
1-1 Type 3-speed full manual
1-2 Motor 16pole, 3phase, brushless DC motor
1-3 Driving Method Direct drive
1-4 Turntable Platter 332mm dia. Aluminum die-cast
1-5 Speeds 331/3 and 45 rpm
1-6 Wow and Flutter Less than 0.1% WRMS (JIS WTD) with 331/3 rpm
1-7 S/N Ratio More than 55dB (DIN-B)
1-8 Pitch Controls +/- 8%,+/- 16%,+/-50%
1-9 Starting Torque More than 4.5kgf.cm
1-10 Starting Time min. ~6 sec.(Adjustable)
1-11 Braking Time min. ~6 sec.(Adjustable)
1-12 Time for Speed Change Less than 0.2 sec. from 331/3 to 45 rpm.
Less than 0.2 sec. from 45 to 331/3rpm.
1-13 Channel Separation More than 15dB
1-14 Channel Balance Within 2.5dB at 1KHz
2. TONEARM SECTION:
2-1 Type Static balanced Straight shaped tonearm
2-2 Effective Arm Length 194mm
2-3 Tracking Error Angle Less than 3 degree
2-4 Applicable Cartridge Weight 13~18g (including headshell)
2-5 High of cue (first track) 7.5~10mm
2-6 Descend of cue 1~3sec
3. AUDIO SECTION:
3-1 EQ. RIAA Characteristic 20Hz~20KHz : +1/-3dB
3-2 Phono Output Level 1.5~3.6 mV at 1KHz 5cm/sec
3-3 Line1 Output Level 90~216 mV at 1KHz 5cm/sec
3-4 Line2 Output Level 90~216 mV at 1KHz 5cm/sec
3-5 S/N Ratio 55d ≧ B (1KHz, 4mV INPUT)
4. GENERAL SECTION:
4-1 Power Supply AC 115/230V, 60/50Hz
4-2 Power Consumption 10Watts
4-3 Dimensions 450 (W) x 353 (D) x 144.6 (H) mm
4-4 Weight 10 Kg
5. ACCESSORIES SUPPLIED
Instruction manual x 1 Headshell x 1 AC cord x 1
Counter weight x 1 Target light x 1 Platter x 1
RCA cord x 1 45 rpm adaptor x 1 Slipmat x 1
