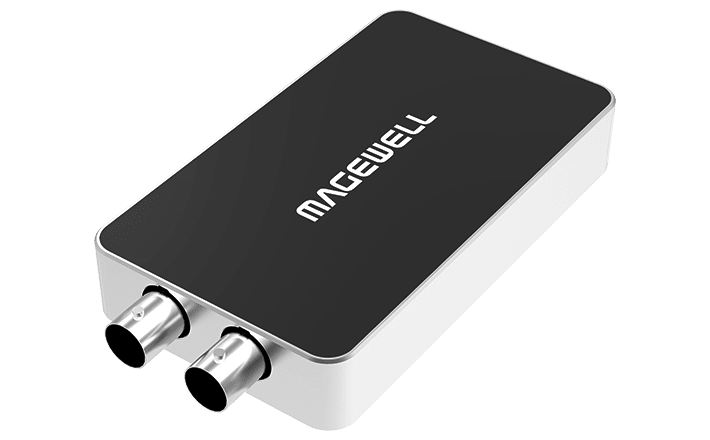

Magewell USB Capture SDI Plus

Capture SD/HD/3G/ 2K SDI + embedded audio
Loop-through SD/HD/3G/2K SDI
Audio input via Line in
Extract SDI embedded audio and output via Line out

USB Capture SDI Plus Specifications

Input Features

Max input & loop through video: 2048×1080 60fps 4:2:2 10-bit
Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
Up to 8-channel embedded audio
Input analog audio via 3.5mm line in
SD/HD/3G-SDI BNC input & loop through
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard
Input SDI signals transmitted up to 150m for 3G-SDI signals

Process and Capture Features

Video processing pipelines with ~160M pixels/s processing bandwidth
Capture videos up to 2048×1080, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):

1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p25
720x480p30

Output YUYV/UYVY/RGB24/RGB32 videos
Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
Output audio of SDI signal via 3.5 mm interface
Up to 2 audio channels at 48KHz

Included Software

USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
Windows DirectShow/Wave API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession/AudioUnit

Output Interface

USB 3.0

compatible with USB 2.0
compatible with USB 3.1 Gen 1

Compatible Software

Zoom Rooms
Microsoft Teams
Skype for Business
Google Hangouts
GoToMeeting
Gstreamer
VLC
OBS Studio
XSplit
QuickTime Player
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9/macOS 10.12 and above
Chrome OS

LED Indicator

Status LEDs indicate the working state of the device:

Pulsing slowly: input signal unlocked
On: input signal locked
Double blinks: memory abnormal or FPGA configuration failed
Off: firmware or power supply abnormal

Form Factor

4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)

Accessories

1 × USB 3.0 cable

Power Consumption

5V max current: ~0.5 A
Max power consumption: ~2.5 W

Working Environment

Operating temperature: 0 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
