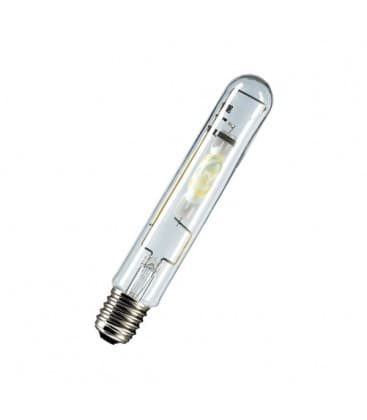

MASTER HPI-T Plus 400W/645 E40 1SL/12

Features• Clear tubular outer bulb• Unique 3-band technology resulting in high luminous efficacy, both initially and over long lifetime• Renders a natural white color appearance and good color stability
Applications• Sports lighting. floodlighting of buildings and monuments, area lighting e.g. harbours and building sites, canopy lighting e.g. petrol stations, horticultural lighting

Specifications

General Information

Cap base

E40  [ E40]

Burning Position

P20  [ Parallel +/-20D or Horizontal(HOR)]

Life to 5% failures (nom.)

5000 h

Life to 10% failures (nom.)

7500 h

Life to 20% failures (nom.)

11000 h

Life to 50% failures (nom.)

20000 h

System description

Horizontal  [ Horizontal Operating Position]

Light Technical

Colour Code

645  [ CCT of 4,500 K]

Lamp Luminous Flux (Min)

30000 lm

Lamp Luminous Flux (Nom)

32000 lm

Colour Designation

Cool White (CW)

Lumen maintenance 10,000 hours (nom.)

70 %

Lumen maintenance 2,000 hours (min.)

75 %

Lumen maintenance 2,000 hours (nom.)

90 %

Lumen maintenance 20,000 hours

60 %

Lumen maintenance 5,000 hours (min.)

65 %

Lumen maintenance 5,000 hours (nom.)

80 %

Chromaticity coordinate X (nom.)

361

Chromaticity coordinate Y (nom.)

372

Colour Temperature, horizontal (Nom)

4500 K

Lamp Luminous Efficacy EM (Nom)

83 lm/W

Colour Rendering Index,horiz (Nom)

65

Operating and Electrical

Power (Rated) (Nom)

385 W

Lamp current run-up (max.)

6 A

Lamp current (EM) (nom.)

3.4 A

Ignition supply voltage (max.)

198 V

Ignition supply voltage (min.)

198 V

Ignition time (max.)

10 s

Voltage (Max)

135 V

Voltage (Min)

115 V

Voltage (Nom)

125 V

Controls and Dimming

Dimmable

No



Mechanical and Housing

Lamp Finish

Clear

Bulb shape

T46  [ T 46mm]

Approval and Application

Mercury (Hg) content (nom.)

29.5 mg

Energy consumption kWh/1,000 hours

424 kWh

Luminaire Design Requirements

Bulb temperature (max.)

600 °C

Cap-base temperature (max.)

250 °C

Product Data

Full product code

871150017990615

Order product name

MASTER HPI-T Plus 400W/645 E40 1SL/12

EAN/UPC – product

8711500179906

Order code

928481600096

Local order code

HPIT400WGES

SAP numerator – quantity per pack

1

Numerator – packs per outer box

12

SAP material

928481600096

SAP net weight (piece)

0.153 kg
