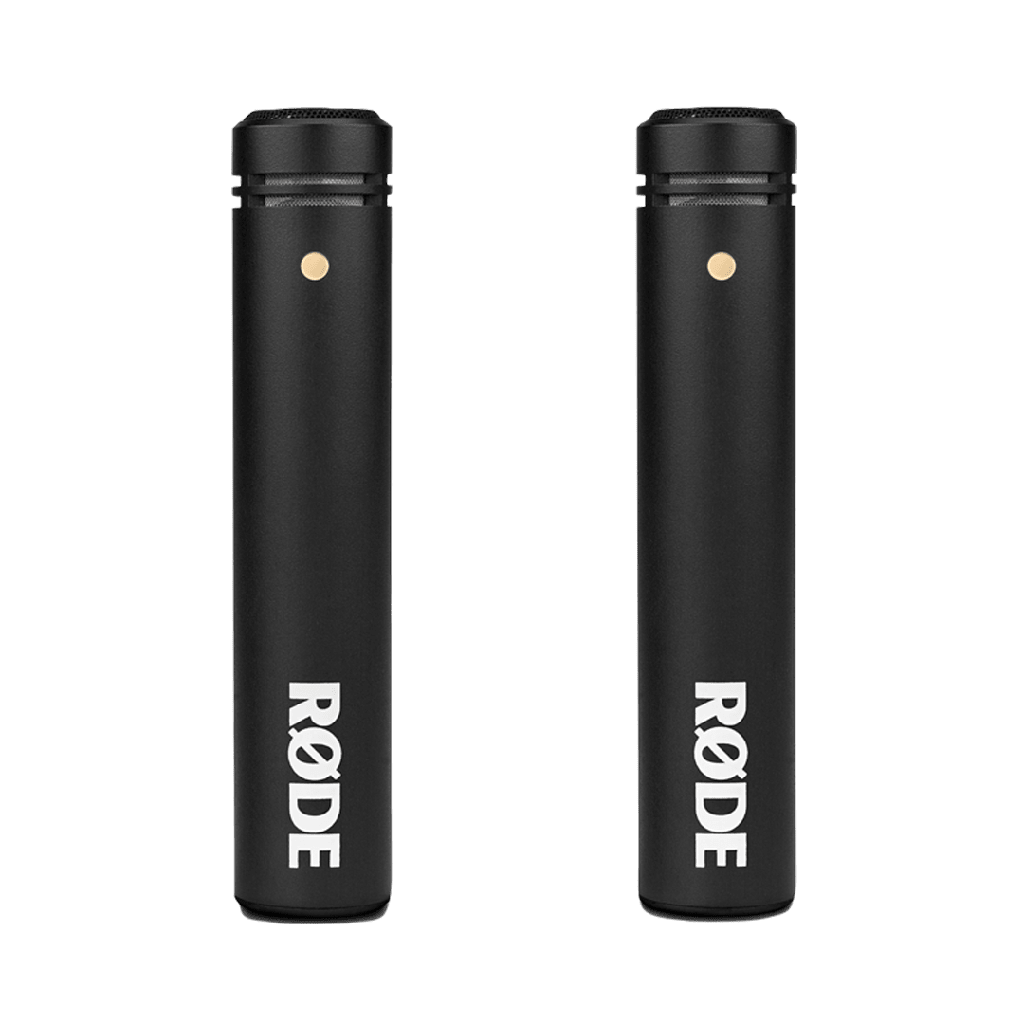

RODE M5 Matched Pair Small Diaphragm Condenser Studio Microphones

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm (‘pencil’) condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
Key Features:

Matched of pair small-diaphragm cardioid condenser microphones
1/2-inch gold-sputtered capsules
Carefully selected pair with no more than 1dB sensitivity variation
Very low noise and full frequency response
Includes microphone clips and windshields
10-year warranty

Specifications

Acoustic & Electrical
Mechanical

Acoustic Principle
Pressure Gradient

Active Electronics
JFET impedance converter with bipolar output buffer

Polar Pattern
Cardioid

Frequency Range
20Hz ~ 20kHz

Output Impedance
200Ω

Equivalent Noise
19 dBA SPL (as per IEC651)

Maximum Output Level
+13.5 dBu

Sensitivity
-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz

Dynamic Range
121 dB SPL

Maximum SPL
140 dB SPL

Signal to Noise Ratio
75 dBA SPL (as per IEC651)

Power Requirements
P24 and P48

Output Connection
XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)


Weight (g)
80

Dimensions (mm)
100 (H) x 20 (W) x 20 (D)

Box Contains

1 x M5

2 x WS5

2 x RM5
