MIDI MERGE 3 BOX

No: 107
Type: MIDI Box
Size: 88*73*38mm
Material: Aluminum alloy
Colour: Black
Brand: DOREMiDi
Model: MERGE-3

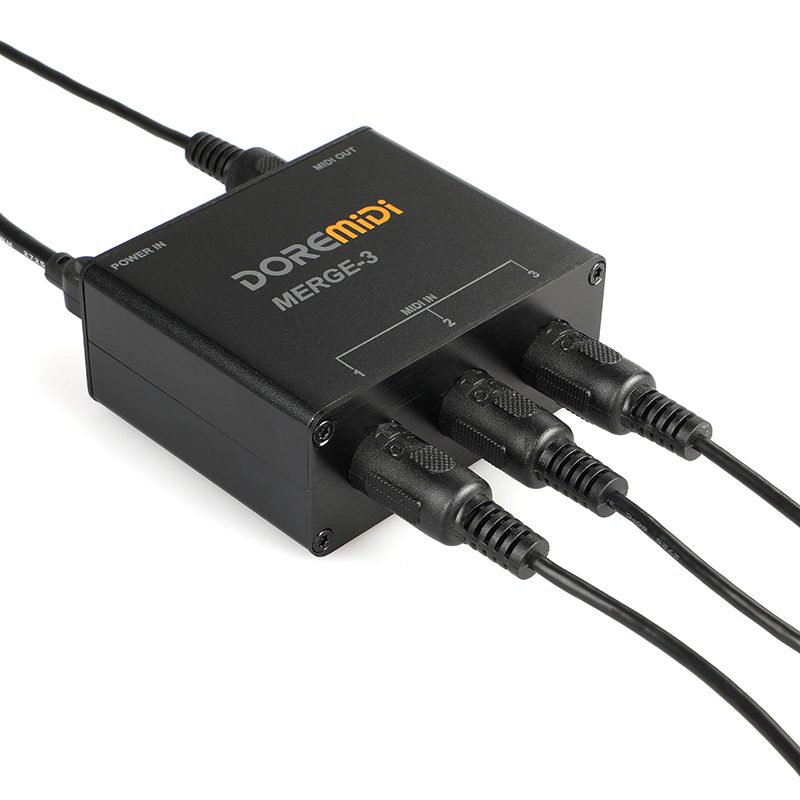

The MIDI MERGE-3 box (MERGE-3) can combine up to 3 MIDI input signals (such as a MIDI keyboard or controller) into one MIDI data stream, which can be output through 1 MIDI interfaces. Support the combination of various standard MIDI commands, including MIDI clock, MIDI time code and SysEx, etc.
Main Feature:
1. Model: MERGE-3.
2. Size: 88 x 73 x 38 mm.
3. Weight: 155g.
4. For 3 MIDI input, 1 MIDI direct output, using hardware direct, no interference, no delay.
5. Compatible with all standard MIDI commands.
MERGE-3 Instructions.pdf‍
Firmware upgrade instructions
1. Upgrade content:
–Solve some bugs.
–Increase the data length/packet of each IN port to 1357 bytes, and you can send SysEx messages (including F0, F7) with a length ≤ 1357 bytes.
2. Upgrade target: Only for users who purchased MERGE-3 products before November 15, 2021.
3. Products purchased after November 6, 2021 do not need to be upgraded.
MERGE-3 Upgrade instructions V2.1.zip
