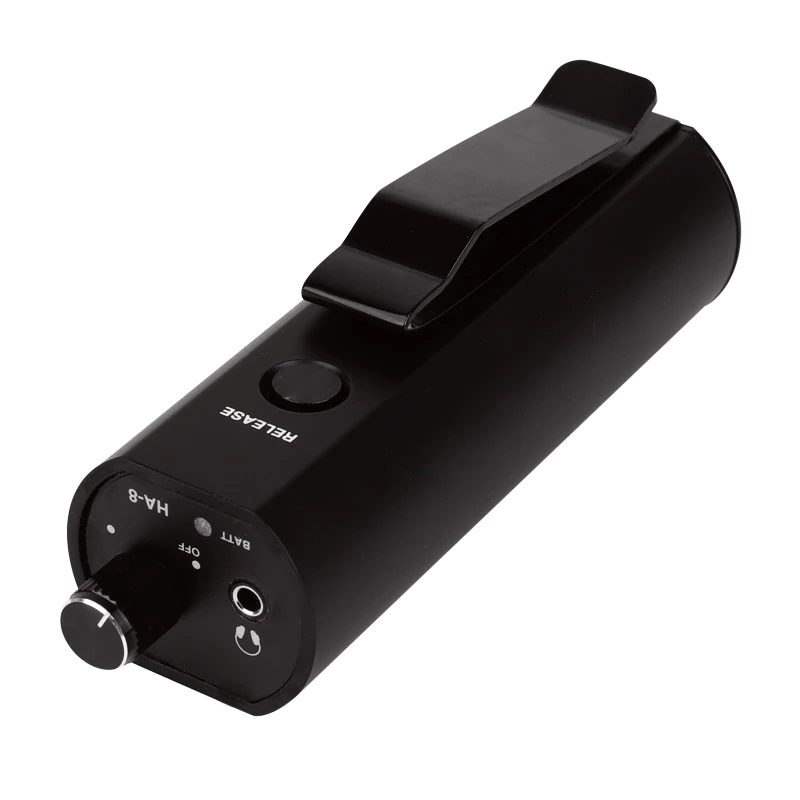

Mini Portable Headphone Amplifier

HA-8
Active belt-pack volume converter


Product introduction

HA-8 is an active converter, belt-pack for personal monitor application. Its built-in battery helps HA-8 to performance. XLR or 1/4’’ make plugs connection of a personal monitor mix. VOLUME knob adjusts the output level and powers the unit off when turned counterclockwise. The adjacent green LED will lit when the power is on. The MONO/STEREO switch should be set to MONO when used with a mixer’s aux send or any other mono source and set to STEREO when connected to a headphone output or other stereo source.

1、Active monitor with volume adjustable knob
2、Built-in battery helps HA-8 to performance well
3、VOLUME knob adjusts the output level
4、Adjacent LED will lit when the power is on
5、MONO/STEREO two modes adjustable

* Input channels:
stereo/mono internal source switch

* Analog inputs:
1 x XLR 1/4’’ combo (line in)

* Analog outputs:
1 x 1/8’’ (headphone)

* Size:
40mm*40mm*158mm

* Material:
alum
