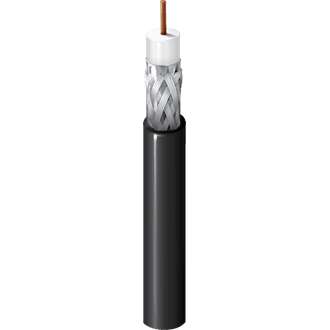

Mini RG59 75 Ohm SDI Coax Per M

Sold Per Meter

BNC Connector NBNC75BDD6. or Kings 2065-11-9

75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid
Overall Cable Diameter (Nominal) 0.159 in (4.04 mm)

Belden 1855A Overview
The Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Orange is a precision broadcast video cable for analog and digital signals. It can be used for narrow-band composite through wide-band SDI transmissions.

Stranding is solid and the conductor is bare copper. Insulation material is gas-injected foam high density polyethylene and the outer shield is of two layers, with layer 1 made of aluminum foil-polyester tape-aluminum foil and featuring 100% coverage and layer 2 made of tinned copper with 95% coverage.

Max pull tension is at 36 lbs and bend radius at 1.5″. Impedance is 75 Ohm and overall diameter .159″. 4.04mm

Precision broadcast video cable for analog and digital signals
For narrow-band composite through wide-band SDI transmissions
