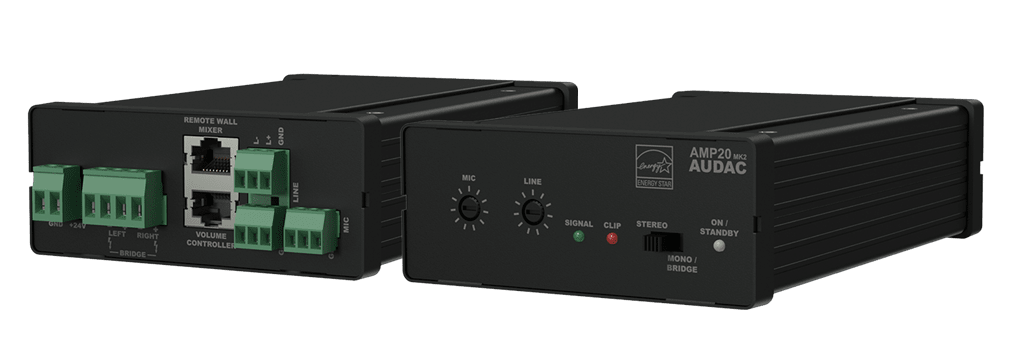

The AMP20 is a mini stereo power amplifier with a power rating of 2 x 15 Watt, that lends itself perfectly to small speaker systems requiring compact and economical audio solutions. It offers the ideal solution for applications such as class rooms, offices and meeting rooms where only a small amount of speakers are required. The compact size and very high efficiency makes it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power. A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5 twisted pair cabling. The volume controller input allows connection of an additional wall controller for overall volume control. The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.
SYSTEM SPECIFICATIONS
THD+N (@ 1 kHz)
< 0.1%
Crosstalk (@ 1 kHz)
95 dB
Efficiency
87%
Cooling
Convection cooled
Protection
Over heating
Over load
DC Short circuit
Signal limiting
Energy certification
Energy Star 3.0
Outputs
Type
1 x Stereo Loudspeaker
Connector
4-pin Euro Terminal Block (Pitch – 5.08 mm)
Power
Supply
24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Inputs
Balanced Stereo
Type
1 x Stereo Balanced Line
Connector
2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Impedance
20 kΩ
Sensitivity (1W/1m)
-12 dBV ~ +12 dBV
Balanced Microphone
Type
1 x Balanced Microphone
Connector
3-pin Euro Terminal Block (Pitch – 3.81 mm)
Impedance
47 kΩ
Sensitivity (1W/1m)
-50 dBV ~ -18 dBV
Other
Connector
RJ45
Type
1 x Remote Volume controller
Connector
RJ45
Power
Consumption
Standby
0.8 W (PSD241 included)
RMS Power
@ 4 Ω Stereo
2 x 15 W
@ 8 Ω Bridge
30 W
@ 8 Ω Stereo
2 x 7.5 W
PRODUCT FEATURES
Dimensions
108 x 44 x 165 mm (W x H x D)
Weight
0.800 kg
Accessories
Included
PSD241 – Power supply 24V / 1.67 A (Efficiency Level V)
Optional
VC3208 Remote volume controller
WP523 Remote wall mixer
MBS1xx Optional Wall mounting brackets
TR3030 100V Transformer 30 W
