MULTI FX BAR LED Lighting System with 5 Lighting Effects for Mobile DJs, Entertainers and Bands

All-in-one lighting system with 5 intense effects including 2 brilliant LED PAR cans, 2 rotating LED derbies, 4 strobe LEDs, a grating laser and UV light


Pre-mounted to a bar with pole insert for instant set-up and use


Includes a convenient carry bag, wireless footswitch, infrared remote control and truss mounting brackets


46 built-in programs for mesmerizing light shows that include all 5 effects


Multiple control options including a 4-button display, DMX, infrared remote, wireless footswitch, sound activation and automatic operation


All effects usable individually and in combinations


PAR lights with 12 high-performance 12W RGB+UV LEDs


Derby effect with 6 powerful 3W RGB LEDs


Grating laser with 200mW output (red = 150mW, green = 50mW)


Strobe effect with 4 white 3W LEDs


Description

Featuring 5 amazing pre-mounted fixtures, the Cameo Multi FX Bar is the favorable all-in-one solution for mobile DJs, entertainers and bands to spice up their performance with terrific lighting. The system combines a pair of flat PAR cans, two LED Derby lights, a laser and strobe plus ultraviolet light for colorful illumination, magnificent rotating beams, impressive grating and stunning slow-motion effects.
With the integrated pole mount, set-up is straightforward and quick for instant use. The Multi FX Bar provides a variety of control options via the 4-button display, DMX and the wireless footswitch or handheld infrared remote that are both included. For automatic operation and sound activation, it sports a total of 46 fantastic built-in programs that produce mesmerizing light shows including all 5 effects.
The Cameo Multi FX Bar comes with a rugged carry bag for convenient transport and allows easy daisy-chaining to create larger lighting systems.

Specifications



Product type
LED Lighting Effects

Type
LED / Strobe / Laser Effects

Spot Colour Spectrum
RGB+UV 12 W

Number Of Spot LEDs
12

Colour Spectrum Derby Effect
RGB

Number of LEDs Derby Effect
6

LED Type Derby Effect
3 W

Colour Spectrum Laser Effect
green LED (532 nm) , red LED (650 nm)

Number of Diodes Laser Effect
1 x green , 1 x red

Type of Diodes Laser Effect
red 150 mW, green 50 mW (DPSS laser)

Laser Class
3R

Laser Shutdown (safety function)
connection for external emergency stop switch , Lock switch

Colour Spectrum Strobe
white

Number of LEDs Strobe
4

LED Type Strobe
3 W

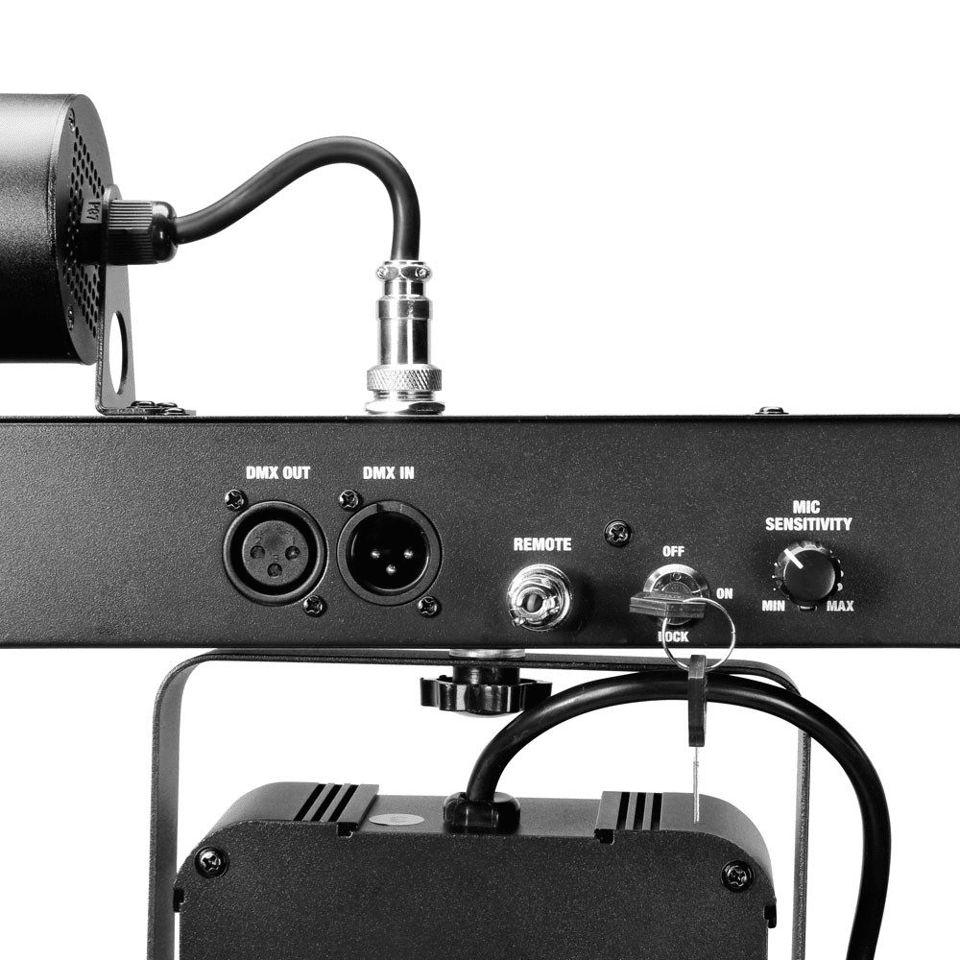

DMX input
XLR 3-pin male

DMX output
XLR 3-pin female

DMX mode
2-channel , 29-channel , 5-channel

DMX Functions
Auto programs , Derby , Laser , sound sensitivity , strobe

Standalone modes
Auto programs , colour , slave mode , sound programs

Controls
Down , Enter , Mode , Up

Indicators
4-digit LED display

Operating voltage
IEC power input and output

Power consumption
120 W

Fuse
T3.15A

Maximum Ambient Temperature
104 °F °C

Housing material
Metal

Cabinet colour
Black

Cooling
fan

Dimensions (W x H x D)
1100 x 60 x 60 mm

Weight
6,6 kg

Features
IR Remote Control , key switch with 2 keys , Mounting brackets , truss mounting angles and interlock connector for optional emergency stop switch , wireless footswitch with 12V 23AE battery
