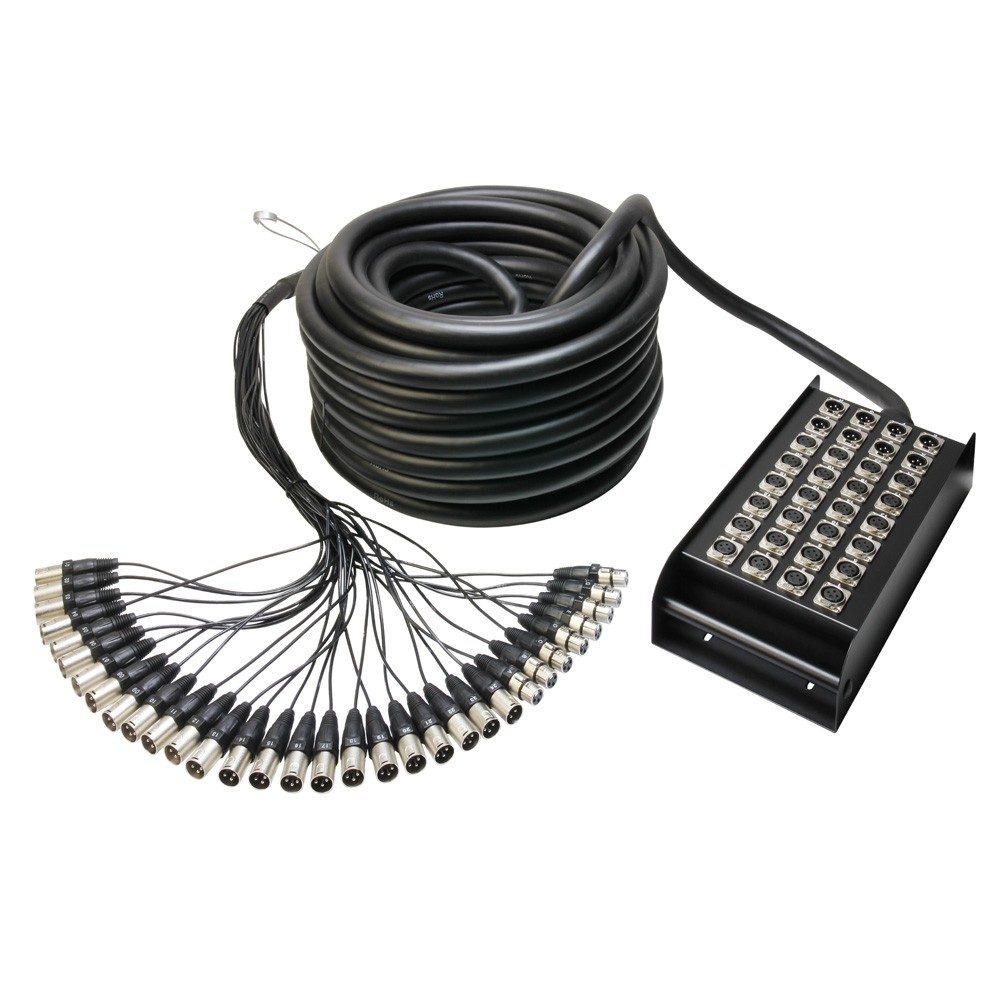

32-channel multicore with permanently attached 30-metre cable terminating in Adam Hall XLR plugs. The all-metal stage box has a solid strain relief in the transitional area between box and cable. The protruding sides optimally protect the sockets on the stage box against damage. With a built-in handle for ease of handling and prepared mounting possibilities for permanent installation. The additionally reinforced transition to the terminations prevents fatigue and cable breakage. For 24 send and eight return paths. Fifty-metre cable length available on request.
Product type
Pre-assembled Cables
Type
Multicore cable
Channels
32
Pin-out
24/8
Length
30 m
Color
Black
Cable diameter
24.7 mm
Cross section
0.314 mm²
Connector 1-A (built into drum / stage box)
XLR
Number of connectors connector 1-A
24
Gender of connector 1-A
female
Poles of connector 1-A
3
Contacts of connector 1-A
Nickel-silver
Manufacturer of connector 1-A
Adam Hall
Model number connector 1-A
Custom-made
Connector 1-B (built into drum / stage box)
XLR
Number of connectors connector 1-B
8
Gender of connector 1-B
male
Poles of connector 1-B
3
Contacts of connector 1-B
Nickel-silver
Manufacturer of connector 1-B
Adam Hall
Model number connector 1-B
Custom-made
Connector 2-A (splice)
XLR
Number of connectors connector 2-A
24
Gender of connector 2-A
male
Poles of connector 2-A
3
Contacts of connector 2-A
Nickel-silver
Manufacturer of connector 2-A
Adam Hall
Model number connector 2-A
Custom-made
Connector 2-B (splice)
XLR
Number of connectors connector 2-B
8
Gender of connector 2-B
female
Poles of connector 2-B
3
Contacts of connector 2-B
Nickel-silver
Manufacturer of connector 2-B
Adam Hall
Model number connector 2-B
Custom-made
Splice length
60 cm
Width
180 mm
Height
90 mm
Depth
385 mm
