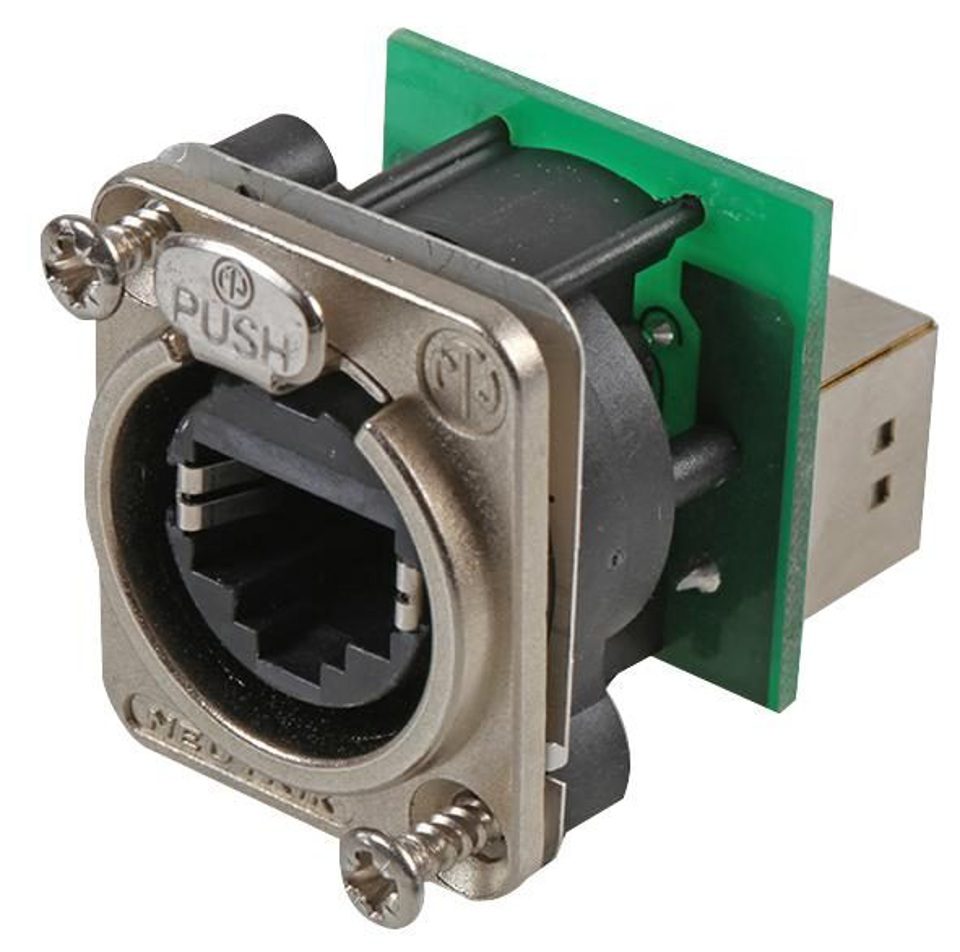

The NE8FDP from Neutrik is a RJ45 feed through receptacle in D shape metal flange. The chassis connector is shaped to fit into standardized panels out of the entertainment industry. The D series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Connector is optimized for pro audio, video and lightning network applications.
Approved latch lock system
Mountable from the front or rear of the panel
Bronze (CuSn8) contacts with 0.2µm Au over Ni plating
Zinc die-cast (ZnAl4Cu1) shell with nickel plating
UL94 V-0 flammability
Lifetime > 1000 mating cycles
Rated current per contact is 1.5A
Rated voltage is 50VAC
TIA/EIA 586B, IEC11801 compliance
Temperature range from -30°C to 80°C
Applications
Audio, Lighting, Communications & Networking, Industrial
Footnotes
Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.
