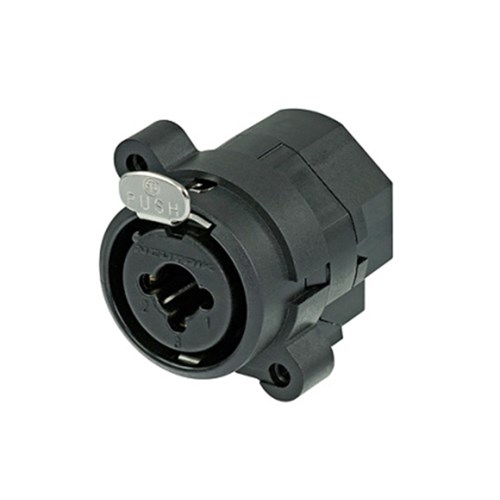

3 pole XLR female receptacle with 1/4″ stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4″ jack.
Features & Benefits
- Combined XLR receptacle and 1/4″ phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
Specifications:
| Product |
|
| Title |
NCJ6FI-S |
| Connection Type |
Combo |
| Gender |
female |
| Electrical |
|
| Contact resistance |
< 10 mΩ (XLR) |
| Contact resistance |
< 20 mΩ (jack) |
| Dielectric strength |
1,5 kVdc |
| Insulation resistance |
> 10 GΩ (initial) |
| Rated current per contact |
7,5 A (XLR) |
| Rated current per contact |
7,5 A (Jack) |
| Rated voltage |
< 50 V |
| Mechanical |
|
| Insertion force |
≤ 25 N |
| Withdrawal force |
≤ 25 N |
| Lifetime |
> 1000 mating cycles |
| Panel thickness |
max. 7 mm 0.27″ |
| Wiresize |
|
| Mounting direction |
Rear mounting |
| Material |
|
| Contact plating |
0.2 µm Au hard alloy over 2 µm Ni |
| Contacts |
Bronze (CuSn6) |
| Insert |
PA66 |
| Locking element |
Steel Ck67 |
| Environmental |
|
| Flammability |
UL 94 V-0 |
| Temperature range |
-30 °C to +80 °C |
