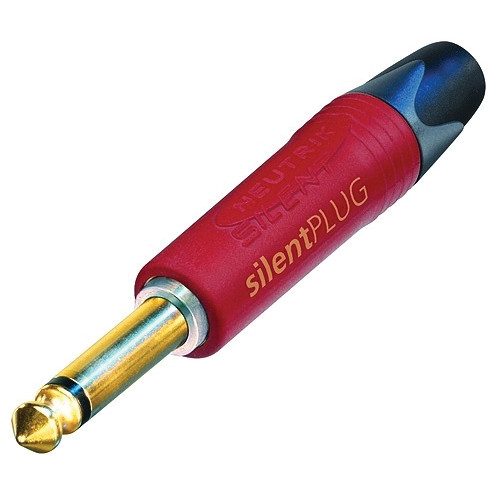

Neutrik NP2X-SILENT-POS SilentPLUG 2-Pole 1/4″ Professional Phone Plug

Overview
The NP2X-SILENT-POS SilentPLUG 2-Pole 1/4″ Professional Phone Plug from Neutrik helps avoid pops and squeals by automatically muting the instrument when it’s being changed under load. Its integrated silent switch guarantees up to 10,000 mating cycles thanks to the REED technology. The REED switch incorporated in the connector ensures protection from corrosion and contamination. It also minimizes the wear and tear caused when the connector pin is subjected to constant contact resistance. Additionally, the plug’s rugged metal shell with a rubber cushion overlay offers protection from shocks and jolts.
Key Features

Gold-plated contacts allow for optimum signal clarity
Avoids pops and squeals
Hermetically sealed switching contacts
Lifetime beyond 10,000 mating cycles
Slim plug with reliable chuck type cable strain relief
Sleek design for convenient handling and connections
Rubber overlay on straight housing for excellent shock-protection and reliability

Specifications

Connection Type
Plug

Gender
Male

Contact Resistance
Depends on mating connector mΩ (inner)

Dielectric Strength
1 kVdc

Insulation Resistance
> 2 GΩ (initial)

Rated Current Per Contact
Depends on mating connector A

Rated Voltage
50 V

Lifetime
> 1000 mating cycles

Size
1 mm² (18 AWG)

Wiring
Solder contacts

Bushing
Polyacetal (POM) + PU

Contact Plating
0.2 µm Au

Contacts
Brass (CuZn39Pb3

Insert
Polyamide (PA 6.6 30 % GR)

Shell
Rubber overlay (EPDM)

Strain Relief
Polyacetal (POM)

Standard Compliance
IEC 60603-11 / EIA RS-453

Solderability
Complies with IEC 68-2-20

Temperature Range
-4 to 149°F (-20 to 65°C)

Cable O.D.
0.15 to 0.27″ (4 to 7 mm)
